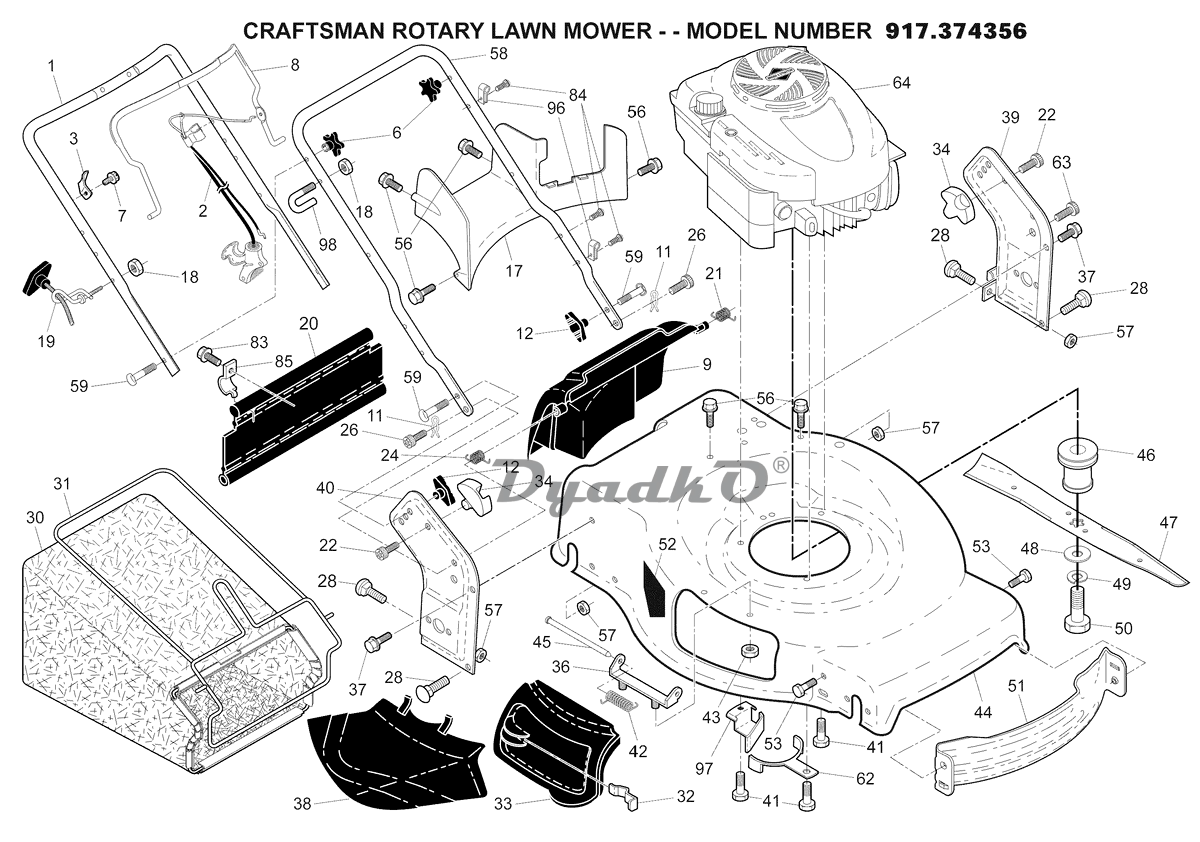

Схема (деталировка) газонокосилки бензиновые CRAFTSMAN 917.374356 01 Газонокосилка. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Upper Handle
2	Cable, Engine Zone Control / Rear Door Prop
3	Bracket, Upstop
5	Wire Tie
6	Handle Knob, Star
7	Screw #10-24 x 1/2
8	Control Bar
9	Rear Door Assembly
11	Hairpin, Door/Handle Pivot
12	Handle Knob, Standard
17	Rear Baffle
18	Keps Locknut 1/4-20
19	Rope Guide
20	Rear Skirt
21	Spring, Rear Door, LH, Black
22	Screw, Panhead, Torx #20
24	Spring, Rear Door, RH, Grey
26	Screw, Rear Door/Handle Pivot
28	Bolt, Carriage 5/16-18 x 5/8
30	Grassbag
31	Frame, Grass Catcher
32	Latch, Mulcher Door
33	Mulcher Door
34	Bracket, Grassbag
36	Hinge Bracket Assembly
37	Screw, Flanged, Thread Cutting 5/16-18 x 3/4
38	Discharge Deflector
39	Handle Bracket, LH
40	Handle Bracket, RH
41	Screw, Dogpoint 3/8-16 x 1-1/8
42	Spring, Torsion
43	Nut, Hex, Nylock
44	Kit, Lawn Mower Housing
45	Rod, Hinge
46	Blade Adapter / Pulley
47	Blade, 22\"
48	Washer, Hardened
49	Washer, Helical
50	Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
51	Front Baffle
52	Decal, Danger
53	Screw 1/4-20 x 1/2
56	Screw, Hex Washer Head #13 x 3/4
57	Nut, Hex
58	Lower Handle
59	Handle Bolt
62	Belt Retainer
63	Screw #10-16 x 5/8
64	Engine, Briggs & Stratton, Model Number 128T02-1270-B1 (See Breakdown)
83	Screw, Hex Washer Head
84	Fastener, Push
85	Bracket, Skirt Mounting
96	Clip, Cable
97	Bracket
98	Clip, Packaging
	Available accessories not included with mower:
- -	Owner’s Manual, English/Spanish
- -	Gas Can (2.5 Gallon Container)
- -	Fuel Stabilizer
- -	SAE 30W Oil (18 Ounce Bottle)
