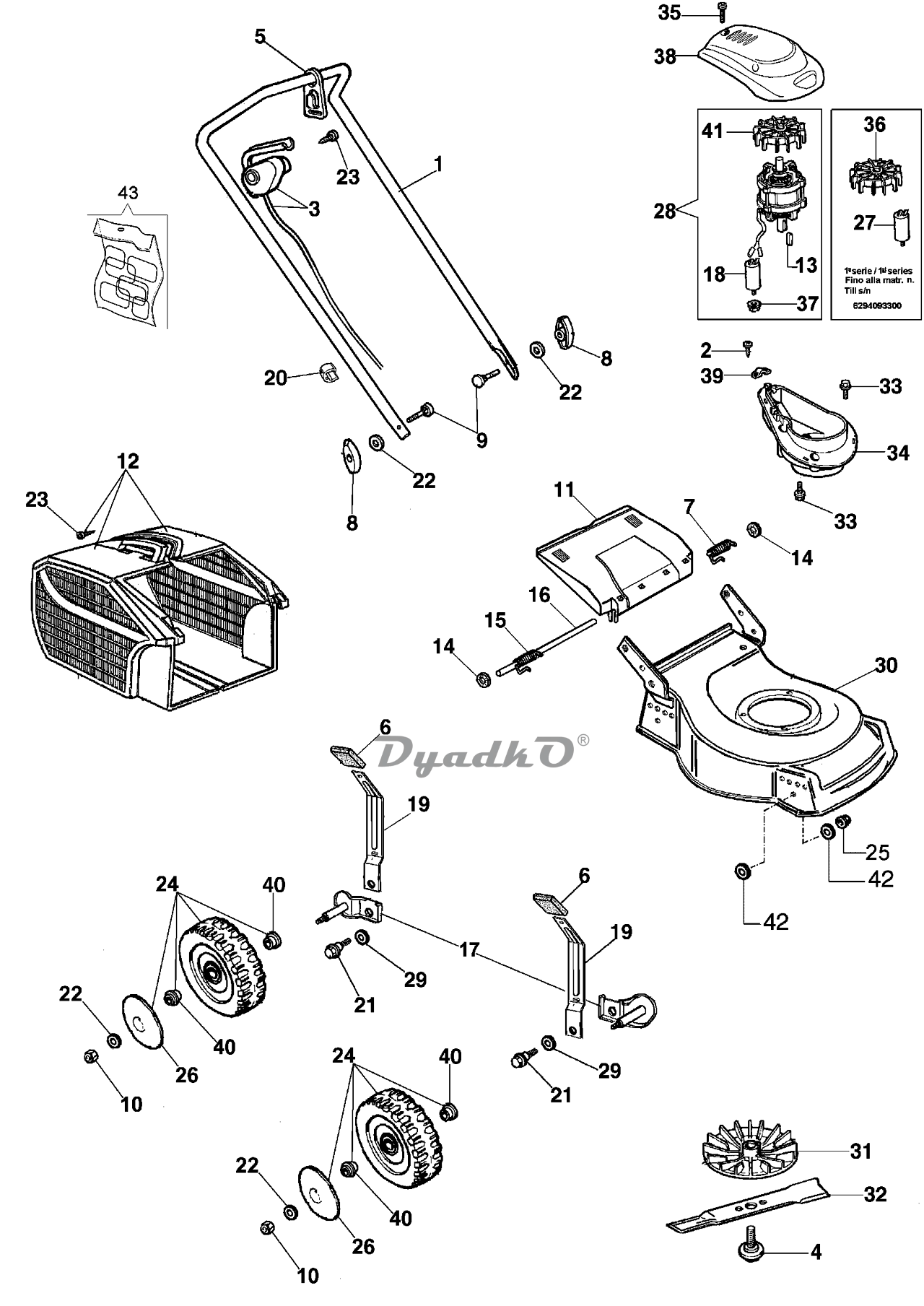

| 1 | Handlebar |
| 2 | Screw |
| 3 | Switch |
| 4 | Screw |
| 5 | Clamp |
| 6 | Handle |
| 7 | Spring |
| 8 | Tightening handle |
| 9 | Screw |
| 10 | Nut |
| 11 | Shutter |
| 12 | Complete grassbag |
| 13 | Key |
| 14 | Retainer washer |
| 15 | Spring |
| 16 | Deflector axle |
| 17 | Support set |
| 18 | Condenser |
| 19 | Lever |
| 20 | Band |
| 21 | Pin |
| 22 | Washer |
| 23 | Screw |
| 24 | Wheel kit |
| 25 | Nut |
| 26 | Wheel cover |
| 27 | Condenser |
| 28 | Electric motor |
| 29 | Washer |
| 30 | Deck |
| 31 | Fan |
| 32 | Blade |
| 33 | Screw |
| 34 | Engine support |
| 35 | Screw |
| 36 | Not available for this product |
| 37 | Nut |
| 38 | Guard |
| 39 | Plate |
| 40 | Bearing |
| 41 | Fan |
| 42 | Washer |
| 43 | Labels kit |
