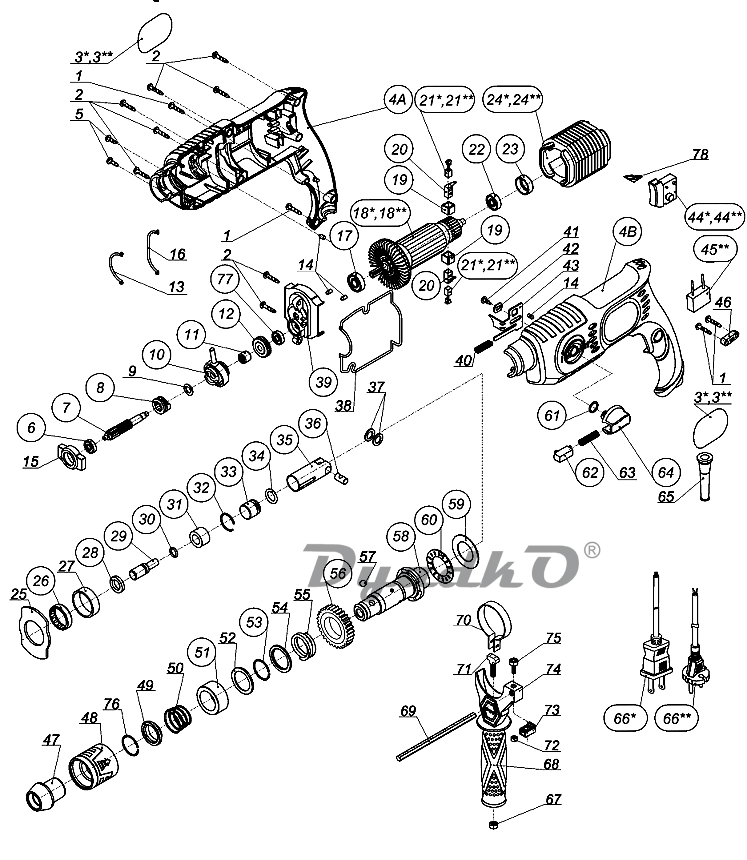

Схема DWT SBH-500 T

1 Screw ST4x16 (4)
2 Screw ST4x20 (8)
3* Name plate (2) 127V
3** Name plate (2) 230V
4A Housing A
4B Housing B
5 Screw ST4x12 (2)
6 Ball bearing 606.Z
7 Gear shaft
8 Clutch
9 Washer Ø10
10 Ball bearing and clutch bush
11 Needle bearing HK0810
12 Small gear
13 Seal grip III
14 Rubber pole (4)
15 Bearing holder
16 Seal grip II
17 Ball bearing 608.2Z
18* Armature 127V
18** Armature 230V
19 Brush holder (2)
20 Brush cover (2)
21* Carbon brush (2) 127V
21** Carbon brush (2) 230V
22 Ball bearing 626.2Z
23 Bearing bush Ø22xØ19x7,5
24* Stator 127V
24** Stator 230V
25 Washer with wing
26 Needle bearing HK2508
27 Needle bearing bush
28 Rubber ring Ø12xØ20
29 Striker
30 “O” ring Ø12x2
31 Position sleeve
32 Circlip for hole Ø20
33 Piston
34 “O” ring Ø20x3
35 Cylinder
36 Pin for cylinder Ø10xØ6x18
37 Washer Ø10 (2)
38 Seal grip I
39 Gear seat
40 Spring Ø7,5x30
41 Screw ST4x10
42 Elipse washer Ø5
43 Switching plate
44* Switch 127V
44** Switch 230V
45** Condenser 0.22µF 230V
46 Cord clip
47 Front cap
48 Protection sleeve
49 Spring seat
50 Cone spring Ø30x25
51 Needle bearing HK2612
52 Washer Ø34xØ25
53 Snap ring Ø26
54 Retainer ring Ø26xØ33
55 Spring Ø33x20
56 Big gear
57 Steel ball Ø7
58 Impact shaft
59 Trust washer
60 Trust needle bearing Ø25xØ42
61 “O” ring Ø10
62 Locating block
63 Spring Ø7x38
64 Switch grip
65 Rubber sleeve
66* Cord 127V
66** Cord 230V
67 Nut M8
68 Handle
69 Depth gauge
70 Handle lock
71 T-head bolt M8x45
72 Nut M6
73 Arresting lever fixed block
74 Handle lock support
75 Hex.head screw M6
76 Snap ring Ø20
77 Ball bearing 607.2Z
78 Cover plate
