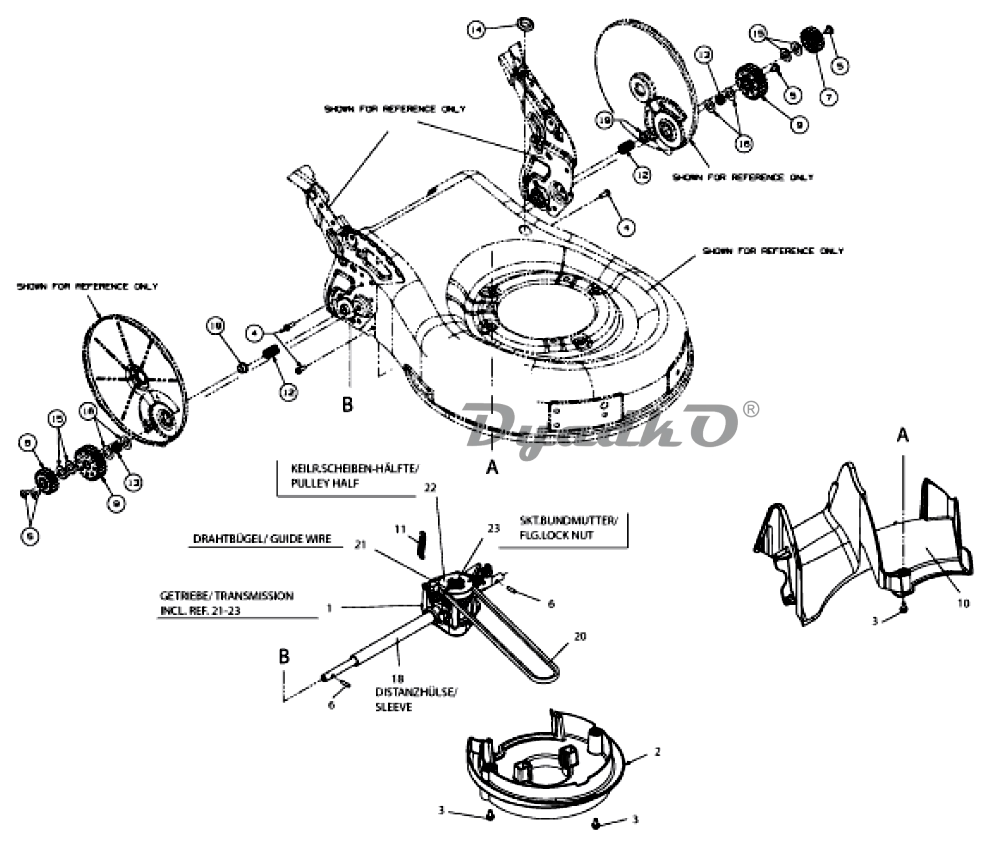

Схема (деталировка) газонокосилки электрические MTD 48 ESP HW (18AR11L-600) 2012 Gearbox, Rear baffle. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	TRANS ASM:SP:19\" MOWER 618-04616A
2	BFL ASM:ENG:RING:800 & 19\" MATERIAL:PLASTIK SCHWARZ
3	SCR:M6x1:12 MM:DIN 7500 DIN 7500 MTD SPEC-100015
4	SCR:HI:M6-.37:16:PANTRXI FINISH:MTD SPEC-100015
5	SCR:1/4-20 x.390:PANTRXI FINISH:MTD-SPEC 101616
6	DOWEL PIN:H.G.PROD. 3/16 x 3/4 FINISH:SIEHE ZG.
7	GEAR:SPUR:16T:BRNZ BUSH:LH 717-04577A
8	GEAR:SPUR:16T:BRNZ BUSH:RH 717-04578A
9	GEAR:SPUR:23T 717-04678
10	BFL:REAR:SP:19\" FINISH:SCHWARZ
11	SPR:EXTN:.408 X 2.630 LG FINISH:SPEC-100015
12	SPR:COMPRS:0.63 x 1.00 FINISH:MTD-SPEC 101616
13	SPR:WAVE FINISH:ÖL GEDIPPT
14	GROM:RUBR:.77 ID x.91 OD x.35 FINISH:SCHWARZ
15	WASHER:FL:.510 X 1.000 X .060 FINISH:MTD-SPEC 101616
16	WASH:THRST:.508x1.000x.020 FINISH:SIEHE ZG. 936-0369
18	SPCR:SLEV:.550 ID x 7.720 .550ID x 7.720:PLASTIK SCHWARZ
19	SPCR:0.5IDX0.58ODX.35LG .5IDX0.58ODX.35LG
20	V-BELT 3LX31.25 954-0637A
21	WIRE:TRANS:EURO 732-04509
22	PUL:HALF:2.5 OD 756-04338
23	NUT:FLGLK:5/16-18 GRB FINISH:701-01000
