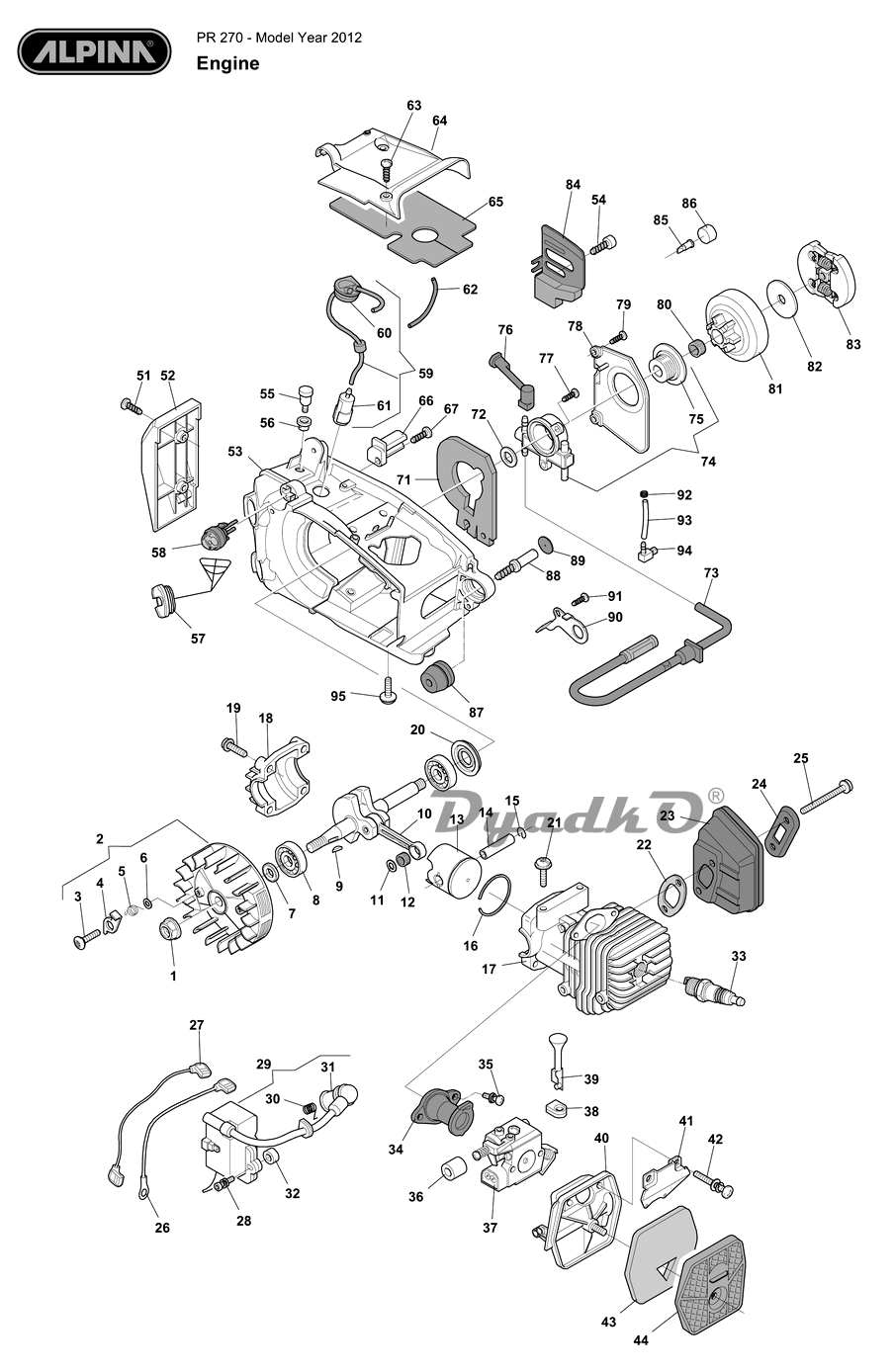

Схема ALPINA PR 270 (223010000/06) 2011 01 Двигатель

1	Nut
2	Flywheel Assy
3	Screw
4	Flywheel Starter Hook
5	Flywheel Spring
6	Washer
7	Seal Ring
8	Ball Bearing
9	Flywheel Key
10	Crankshaft
11	Washer
12	Needle Bearing
13	Piston
14	Piston Pin
15	Washer, Piston Pin
16	Piston Ring
17	Cylinder Assy
18	Stabilizer
19	Screw
20	Seal Ring
21	Screw
22	Muffler Gasket
23	Muffler
24	Plate
25	Screw
26	Earth Cable
27	Stop Wire
28	Screw
29	Electronic Coil
30	Spark Plug Spring
31	Spark Plug Cover
32	Bushing
33	Spark Plug
34	Intake Manifold Assy
35	Screw
36	Gasket
37	Carburettor
38	Grommet
39	Choke Lever Rod
40	Air Filter Support
41	Screw
41	Plate
43	Air Filter
44	Air Cleaner Cover
51	Screw
52	Front Cover
53	Crankase Ass.Y
54	Screw
55	Breather Valve Ass.Y
56	Grommet
57	Cap Ass\'Y
58	Air Purge
59	Grommet Ass.Y
60	Grommet
61	Fuel Pickup Assy
62	Tube
63	Screw
64	Upper Cover
65	Guard
66	Chain Guard
67	Screw
71	Gasket
72	Washer
73	Filter Intank Assy With Pipe
74	Oil Pump Assy
75	Female Screw
76	Tube
77	Screw
78	Cover Pump
79	Screw
80	Needle Bearing
81	Drum Ass\'Y, Clutch 3/8\"
81	Drum Ass\'Y, Clutch 1/4\"
82	Sprocket Washer
83	Clutch Ass.Y
84	Plate
85	Valve
86	Gasket
87	Shock Absorber
88	Screw
89	Cap
90	Clamp
91	Screw
92	Fair Led
93	Tube
94	Tube Connection
95	Screw
