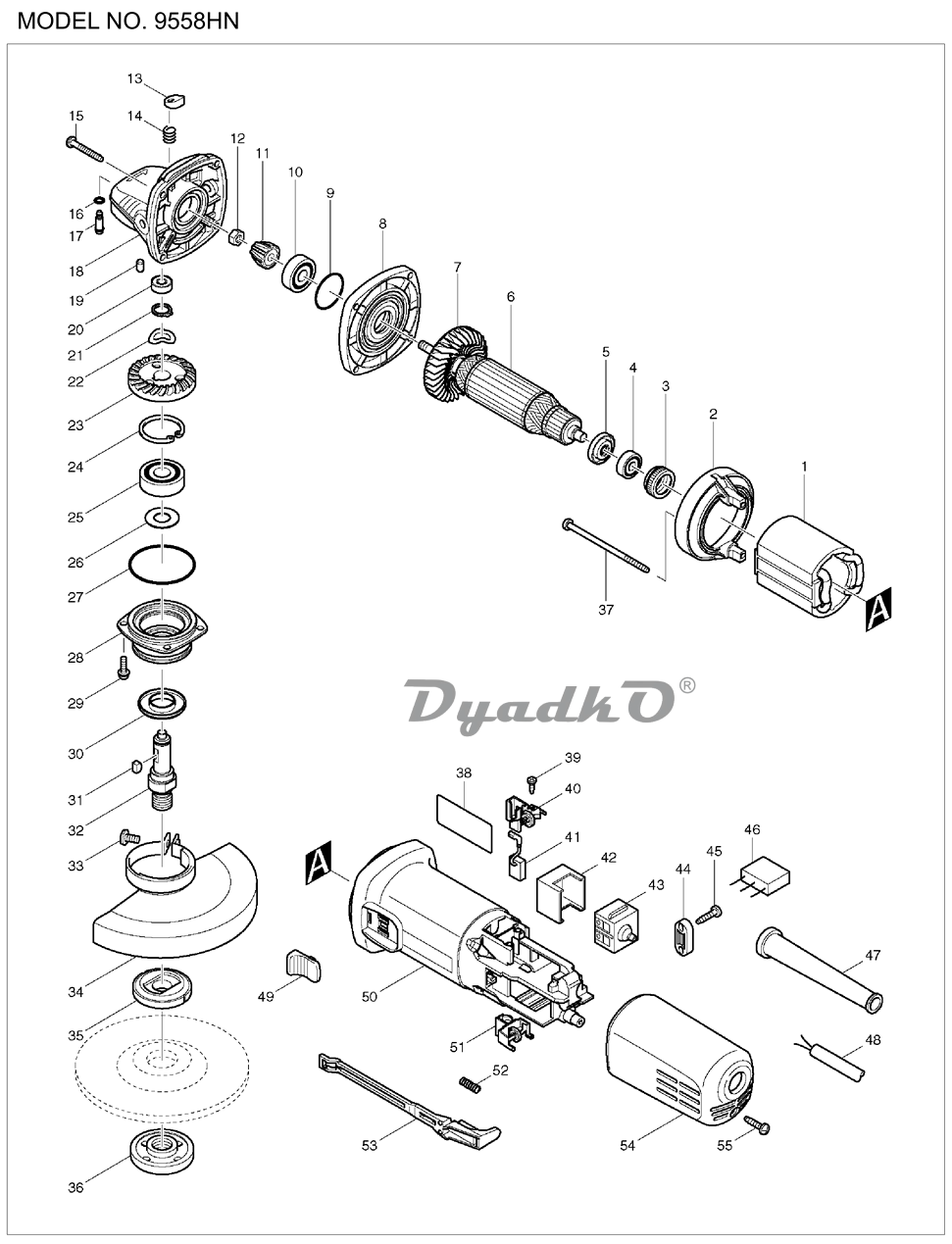

Схема MAKITA 9558 HN 9558HN

1 FIELD 220-240V
2 BAFFLE PLATE
3 LABYRINTH RUBBER RING 19
4 BALL BEARING 607LLB
5 INSULATION WASHER
6 ARMATURE ASS\\\'Y 220-240V INC. 4,5,7
7 FAN 56
8 GEAR HOUSING COVER
9 O-RING 26
10 BALL BEARING 629LLB
11 SPIRAL BEVEL GEAR 10
12 HEX. NUT M6
13 PIN CAP
14 COMPRESSION SPRING 8
15 TAPPING SCREW 4X30 (new1)
15 TAPPING SCREW 4X30 (old1)
15 TAPPING SCREW 4X30
16 O RING 5
17 SHOULDER PIN 4
17 SHOULDER PIN 4
18 GEAR HOUSING
18 GEAR HOUSING
19 RUBBER PIN 4
20 BALL BEARING 696ZZ
21 RETAINING RING S-12
22 WAVE WASHER 12
23 SPIRAL BEVEL GEAR 37
24 RETAINING RING R-32
25 BALL BEARING 6201DDW
26 FLAT WASHER 12
27 O RING 45
28 BEARING BOX (new1)
28 BEARING BOX (old1)
28 BEARING BOX
29 PAN HEAD SCREW M4X14
30 LABYRINTH RING
31 WOODRUFF KEY 4
32 SPINDLE
33 PAN HEAD SCREW M5X16 (new1)
33 PAN HEAD SCREW M5X14 (old1)
33 PAN HEAD SCREW M5X16
34 WHEEL COVER 125AK ASSEMBLY INC. 33 (new1)
34 WHEEL COVER 125K ASSY INC. 33 (old1_1)
34 WHEEL COVER ASS\\\'Y INC. 33 (old1_2)
34 WHEEL COVER 125AK ASSEMBLY INC. 33 (new2)
34 WHEEL COVER 125K ASSY INC. 33 (old2)
35 INNER FLANGE 42
36 LOCK NUT 14-45
37 +BIND TAPPING SCREW 4X80 (new1)
37 TAPPING SCREW 4X80 (old1)
37 +BIND TAPPING SCREW 4X80
38 9558HN NAME PLATE
39 TAPPING SCREW BIND PT 3X10
40 BRUSH HOLDER
41 CARBON BRUSH CB-325
42 SPACER
43 SWITCH DPX-2110-R
44 STRAIN RELIEF
45 TAPPING SCREW 4X18 (new1)
45 TAPPING SCREW 4X18 (old1)
45 TAPPING SCREW 4X18
46 CAPACITOR UNIT (new1)
46 NOISE SUPPRESOR (old1)
46 CAPACITOR UNIT
47 CORD GUARD 8
48 POWER SUPPLY CORD 1.0-2-2.5
49 SWITCH KNOB
50 MOTOR HOUSING (new1)
50 MOTOR HOUSING (old1)
50 MOTOR HOUSING
51 BRUSH HOLDER
52 COMPRESSION SPRING 4
53 SWITCH LEVER B
54 REAR COVER
55 TAPPING SCREW 4X18 (new1)
55 TAPPING SCREW 4X18 (old1)
55 TAPPING SCREW 4X18
56 CLEAR LABEL
A01 GRIP 36 COMPLETE
A02 LOCK NUT WRENCH 35
A03 STEEL CASE (new1)
A03 STEEL CASE SET (old1_1)
A03 STEEL CASE SET (old1_2)
A03 STEEL CASE (new2)
A03 STEEL CASE SET (old3)
A03 STEEL CASE (new3)
A03 STEEL CASE SET (old3)
A04 WHEEL COVER 125CK ASSEMBLY
A05 DIAMOND WHEEL SEGMENTED125MM
A06 DIAMOND WHEEL CORRUGATED125MM
A07 TRAY
