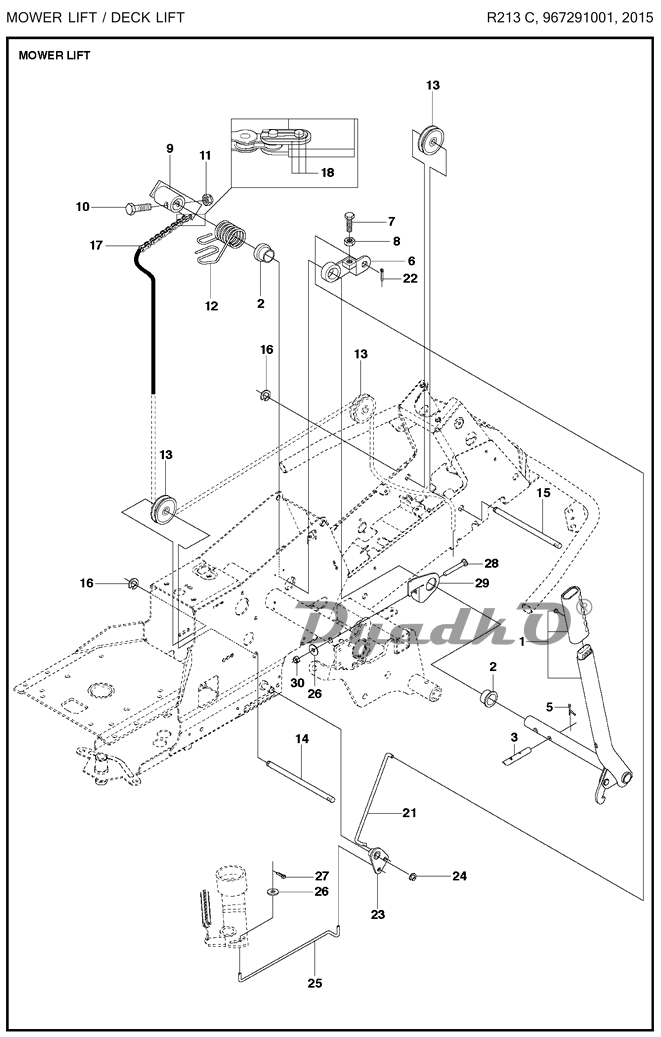

| 1 | LIFTING LEVER ASSY |
| 2 | BEARING |
| 3 | PIN |
| 5 | SPLIT PIN |
| 6 | LINK ASSY |
| 7 | SCREW |
| 8 | HEXAGON NUT |
| 9 | LIFTING ARM |
| 10 | SCREW EHHM |
| 11 | HEXAGON LOCKING NUT |
| 12 | SPRING |
| 13 | OFFSET PULLEY |
| 14 | SHAFT |
| 15 | SHAFT |
| 16 | E-CLIP |
| 17 | CHAIN |
| 18 | LINKAGE |
| 21 | CONNECTION ROD |
| 22 | SPLIT PIN |
| 23 | LINK |
| 24 | E-CLIP |
| 25 | CONNECTION ROD |
| 26 | WASHER |
| 27 | SPLIT PIN |
| 28 | SCREW RSQM |
| 29 | SHEET |
| 30 | LOCK NUT |
