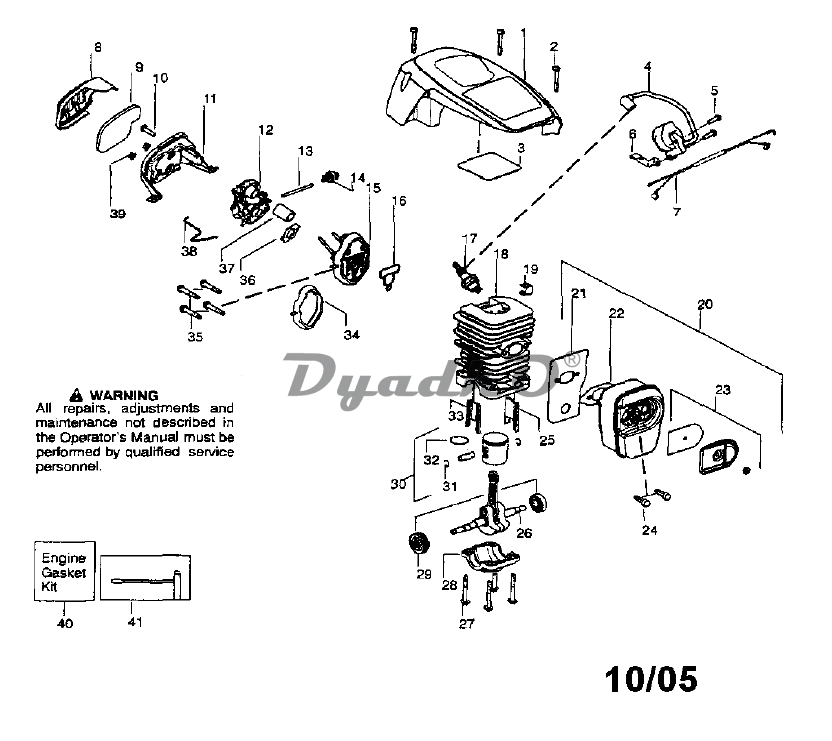

Схема (деталировка) пилы цепные бензиновые CRAFTSMAN 360680 (358.360680) Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	SHIELD-CYL. (INCL 2,3)
2	SCREW
3	TAPE-REFLECTOR
4	MODULE-IGNITION
5	SCREW
6	STRAP-GROUND
7	ASSEMBLY-WIRE HARNESS
8	COVER-AIR FILTER
9	FILTER-AIR
10	SCREW
11	HOUSING-AIR FILTER
12	CARBURETOR ZAMA W26
13	KIT-FUEL LINE (SMALL)
14	BULB-PURGE \"SNAP-IN\"
15	KIT-CARB. ADAPTOR (INCL. 16,34,37)
16	GAKSET-CYL. O-RING (KIT)
17	CHAMPION-ACCY-SPARK PLUG (RCJ-7Y)
18	KIT-CYLINDER (INCL 25,33)
19	CLIP-HIGH TENSION LEAD
20	KIT-MUFFLER (INCL 21,22,23,24)
21	BACKPLATE-MUFFLER
22	GASKET-MUFFLER (KIT)
23	KIT-SPARK ARRESTOR
24	BOLT-MUFFLER
25	INSERT-LEFT (BLACK) CYL.
26	ASSEMBLY-CRANKSHAFT/ROD
27	BOLT
28	CAP-CRANKCASE
29	ASS E M B LY-B E ARIN G/S E AL
30	KIT-PISTON (INCL. 31,32)
31	RETAINER-PISTON PIN
32	RING-PISTON
33	INSERT-RIGHT (GRAY) CYL.
34	SEAL-ADAPTOR (KIT)
35	SCREW
36	GASKET-CARB. (KIT)
37	TUBE-INTAKE
38	WIRE-THROTTLE
39	NUT-CARB.
40	KIT-GASKET (INCL. 16,22,34,36)
41	SCRENCH
NI01	MANUAL
NI02	DECAL-WARNING
