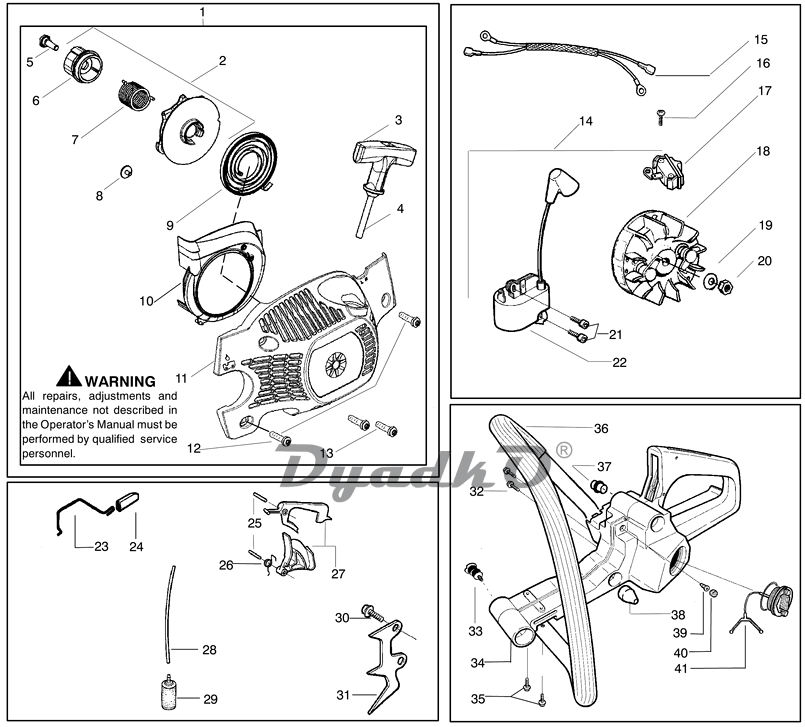

| 1 | Kit--Fan Hsg / Starter (Incl. 2,3,4,5,6,7,8,9,10,11) |
| 2 | Kit--Starter EPS (Incl. 5,6,7,8) |
| 3 | Handle--Starter |
| 4 | Kit--Rope |
| 5 | Screw--shoulder |
| 6 | Hub |
| 7 | Spring--EPS |
| 8 | Screw |
| 9 | Spring--Starter |
| 10 | Baffle--Air |
| 11 | Assy--Fan Hsg. w/eyelet |
| 12 | Screw |
| 13 | Screw |
| 14 | Kit--EPS ignition (Incl. 17, 18, 22) |
| 15 | Assy--Leadwire |
| 16 | Screw |
| 17 | Switch--Ignition |
| 18 | Assy. --Flywheel |
| 19 | Washer--Flywheel |
| 20 | Nut |
| 21 | Screw |
| 22 | Module -- Ignition |
| 23 | Wire -- Throttle |
| 24 | Cap -- Wire |
| 25 | Pin |
| 26 | Spring |
| 27 | Kit -- Throttle Trigger |
| 28 | Kit -- Fuel line |
| 29 | Assy.-- Fuel Pickup |
| 30 | Screw |
| 31 | Kit--Assy Spike (Incl.#30) (Optional) |
| 32 | Screw |
| 33 | Element -- AV Isolator |
| 34 | Assy. --Tank/Handle |
| 35 | Screw |
| 36 | Handle--Front |
| 37 | Isolator--Front Handle |
| 38 | Isolator |
| 39 | Valve -- Check |
| 40 | Plug -- Vent |
| 41 | Kit--Assy. Fuel Cap |
