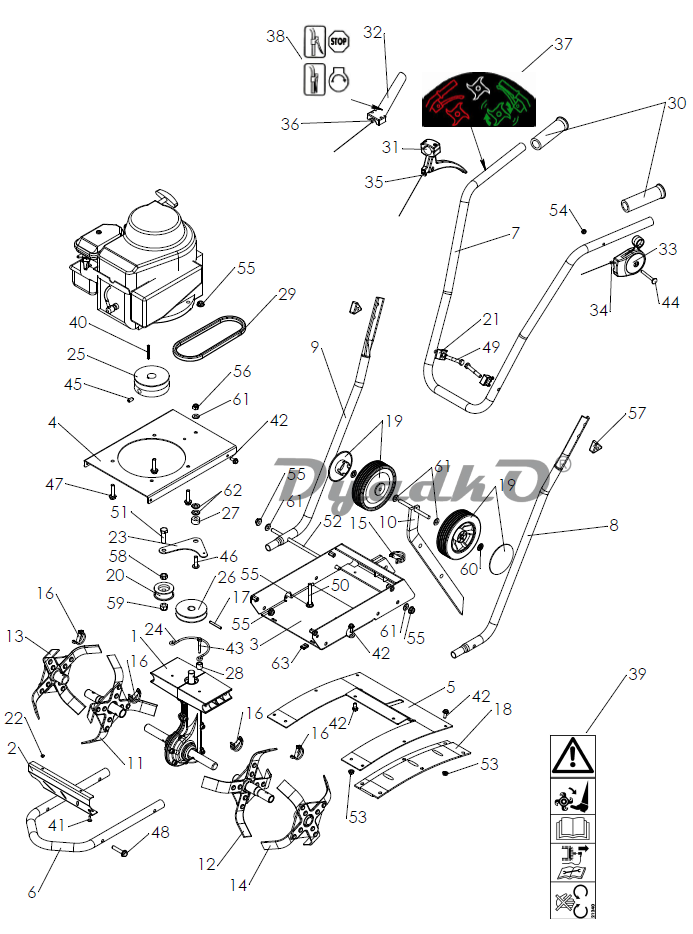

Схема PUBERT MB FUN 350 Культиватор

1 Transmission 1/26
2 Black inspection hatch
3 Red (3002) lower case cover
4 Red (3002) upper plate
5 Black protection sheet
6 Black transport handlebar
7 Black top handlebar
8 Black bottom handlebar
9 Black bottom handlebar
10 Black spur
11 Rotating blade Ø250
12 Rotating blade Ø250
13 Disk blade Ø250
14 Disk blade Ø250
15 Clip pin Ø10x32
16 Clip pin Ø8x28
17 Pin Ø5x40
18 Black Guard
19 Transport wheel Ø130
20 Runner
21 Cable handlebar fixing block
22 Black Plug PVC
23 Clutch lever
24 Drive-belt guide
25 Motor pulley
26 Pulley Ø80
27 Spacer
28 Spacer 9x14x15.3
29 Fanbelt MB Fun
30 Hand side grip
31 Lever 20235 Ø25
32 Engine brake lever
33 Accelerator lever \'\'min max\'\'
34 Throttle cable MB Fun BS
35 Clutch cable
36 Engine brake cable
37 Label \"clutch lever\"
38 Engine brake label
39 Safety label
40 Key 4.76x4.76x40
41 Screw 4.2
42 Screw HM 6x16 z notched shoulder
43 Self-tapping screw HM6x40 z
44 Screw TBCC M6x55 z
45 Screw ST HC M8x16
46 Screw BHC 8x30z
47 Screw HM8x35z notched shoulder
48 Screw HM8x40z notched shoulder
49 Screw HM 8x50 Z
50 Screw HM8x70z
51 Screw HM 10x30z FST
52 Screw M 8x245z
53 Nut H M6 z notched shoulder
54 Blocking nut M 6 Z
55 Nut H M8 z notched shoulder
56 Blocking nut M 8 Z
57 Handlebar tighening handle M8
58 Nut HM 10z
59 Blocking nut M 10 Z
60 Starlock washer Ø8
61 Washer M8x18x1.5 Z
62 Washer M 10x20x2z
63 Spire nuts 4.2
Throttle cable MB Fun GCV 135
Accelerator lever \"start maw min stop\"
Yellow (5283) lower case cover
Green (6029) lower case cover
Yellow (5283) upper plate
Green (6029) upper plate
