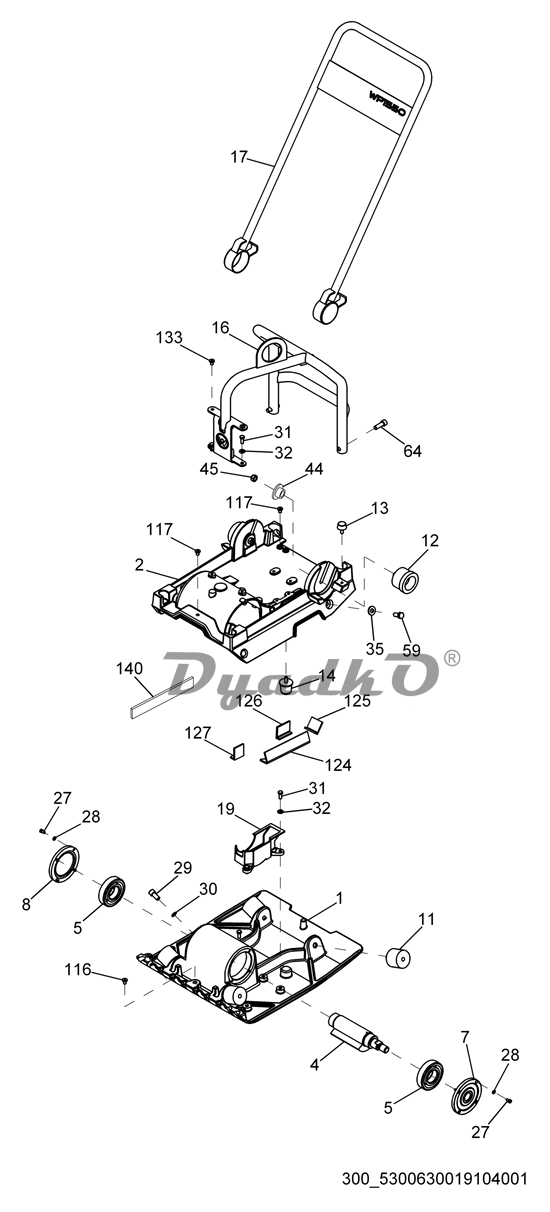

Схема (деталировка) виброплиты бензиновые WACKER NEUSON WP 1550A (0630019) Revision 104 01 Guide Handle/Baseplate. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Baseplate Grundplatte
2	Console Bedienungskonsole
4	Exciter Erreger
5	Ball bearing Kugellager
7	End cap Endkappe
8	End cap Endkappe
11	Shockmount Puffer
12	Shockmount Puffer
13	Shockmount Puffer 30 x 15
14	Shockmount Puffer
16	Lift cage Schutzbügel
17	Handle Handgriff
19	Lower beltguard Riemenschutz-Unterteil
27	Socket head cap screw Zylinderschraube M6 x 12 17Nm/13ft.lbs DIN 912
28	Lock washer Federring
29	Socket head cap screw Zylinderschraube M12 x 25 145Nm/107ft.lbs DIN 912
30	Ring seal Dichtungsring A12 x 18 DIN 7603
31	Hexagonal head cap screw Sechskantschraube M8 x 20 25Nm/18ft.lbs DIN 933
32	Lock washer Federring B8 DIN 6796
35	Lock washer Federring A12 DIN 6796
44	Bushing Buchse
45	Lock nut Sicherungsmutter M12 DIN 985
59	Hexagonal head cap screw Sechskantschraube M12 x 25 86Nm/63ft.lbs DIN 933
64	Socket head cap screw Zylinderschraube M12 x 35
116	Plug Stopfen
117	Plug Stopfen
124	Trim seal Profilgummi
125	Trim seal Profilgummi
126	Trim seal Profilgummi
127	Trim seal Profilgummi
133	Plug Stopfen
140	Rubber Gummi
