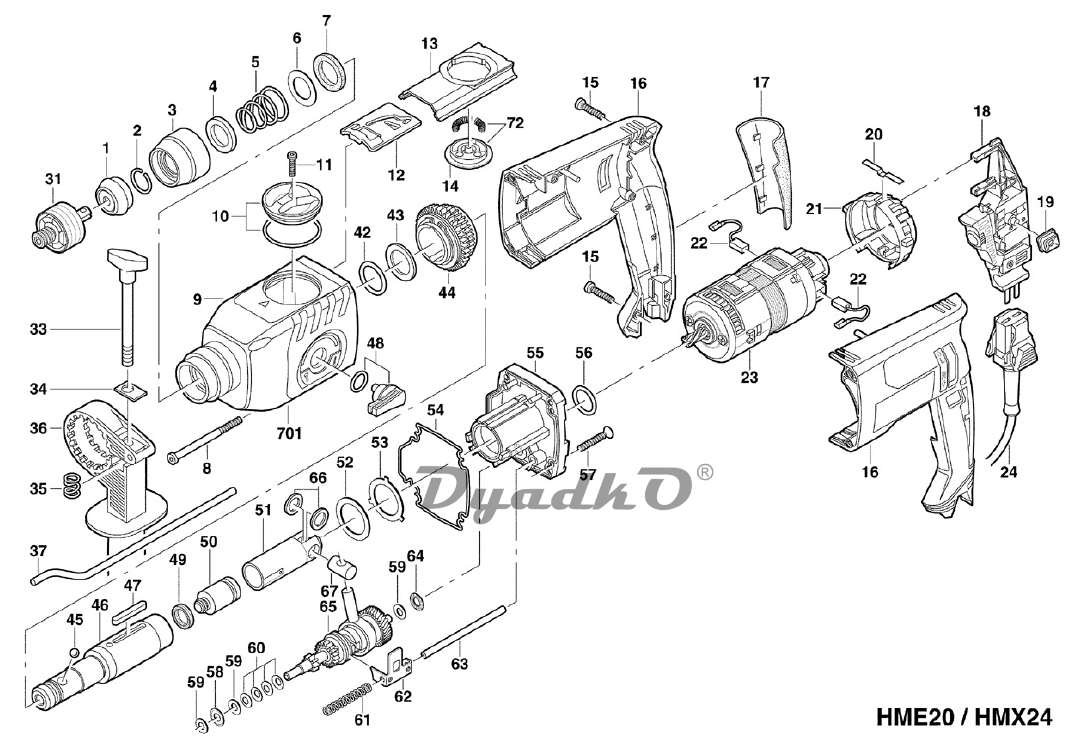

Схема (деталировка) перфораторы KRESS HME 20. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	PROTECTIVE CAP
2	RETAINING RING
3	ROTATING SLEEVE
4	WASHER - WEAR PART
5	CONICAL SPRING
6	8\"
7	PACKING RING
8	SCREW 75 MM
9	GEAR CASING CPL. PREASSEMBLED
10	SWITCHING KNOB KPL.WITH O-RING
11	SCREW TORX KT 3X14
12	SWITCHING PLATE
13	GUIDE PLATE
14	GUIDE DISK
15	SCREW KT 4,0 x 19
16	MOTOR CASING
17	COVER FOR HANDLE
18	ELECTRNIC SWITCH MODULE
19	LOCK KNOB ADAPTER
20	STOP SPRING
21	SWITCHING RING
22	CARBON BRUSH
23	MP 40 MOTOR
24	MAINS SUPPLY MODULE
31	SCREWING ADAPTER
33	WING NUT
34	CLAMPING PART
35	PRESSURE SPRING
36	HANDLE UPPER PART
37	DEPT STOP
42	O-RING
43	DISK
44	SAFETY CLUTCH
45	STEEL BALL 7 MM
46	SPINDLE CPL.
47	FEATHER KEY
48	SWITCHING LEVER CPL.
49	O-RING
50	FREE PISTON
51	RECIPROCATING PISTON
52	AXIAL DISK
53	DISK
54	SEALING JOINT
55	ZYLINDER FLANGE
56	FELT RING
57	COUNTERSUNK SCREW KT 4X30
58	AXIAL BEARING
59	WASHER
60	PLATE SPRING 12,5X6,2X0,5
61	PRESSURE SPRING
62	SWITCHING FORK
63	SWITCHING SHAFT
64	AXIAL BEARING
65	BACK GEAR SHAFT
66	WASHER
67	BEARING BOLT
72	HOLDING DISK CPL. WITH SPRINGS
701	GEAR CPL. HME 20/PSE 500
