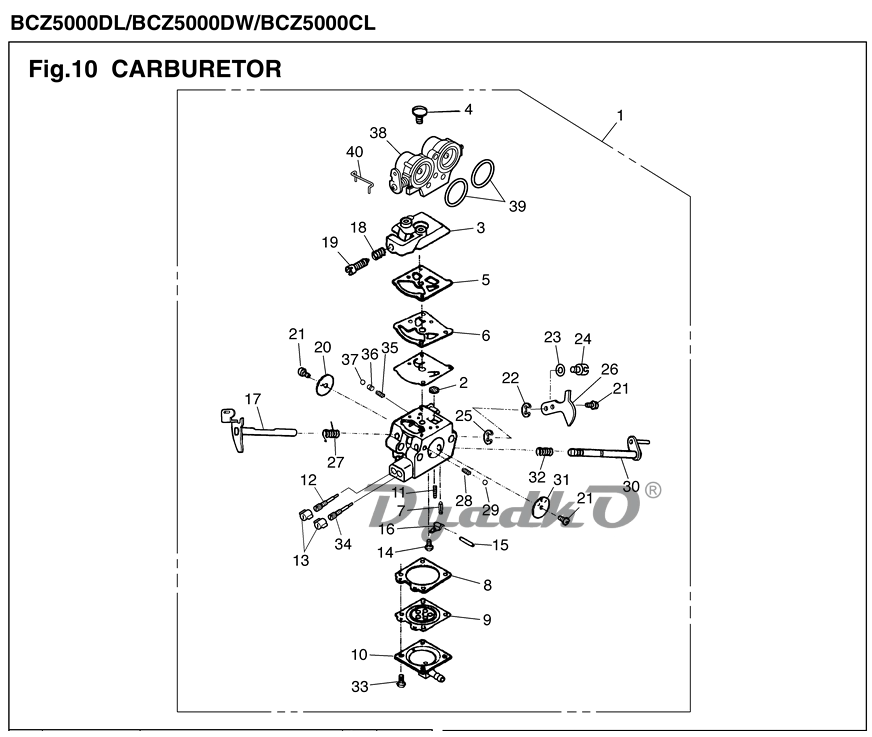

Схема ZENOAH BCZ5000DL, BCZ5000DW, BCZ5000CL (SERIAL NUMBERS: DRIVE UNIT 51000101 and up; ENGINE UNIT 61004647 and up)(November 2008) 05 CARBURETOR (BCZ5000DL/BCZ5000DW/BCZ5000CL)
| 1 | CARBURETOR ASSY |
| 2 | • SCREEN |
| 3 | • COVER |
| 4 | • SCREW |
| 5 | • GASKET |
| 6 | • DIAPHRAGM |
| 7 | • VALVE |
| 8 | • GASKET |
| 9 | • DIAPHRAGM |
| 10 | • COVER |
| 11 | • SPRING |
| 12 | • NEEDLE |
| 13 | • CAP |
| 14 | • SCREW |
| 15 | • PIN |
| 16 | • LEVER |
| 17 | • SHAFT |
| 18 | • SPRING |
| 19 | • SCREW |
| 20 | • VALVE |
| 21 | • SCREW |
| 22 | • RING |
| 23 | • WASHER |
| 24 | • SWIVEL |
| 25 | • RING |
| 26 | • LEVER, throttle |
| 27 | • SPRING |
| 28 | • SPRING |
| 29 | • BALL |
| 30 | • SHAFT ASSY, choke |
| 31 | • VALVE |
| 32 | • SPRING |
| 33 | • SCREW |
| 34 | • NEEDLE |
| 35 | • SPRING |
| 36 | • PISTON |
| 37 | • BALL |
| 38 | • BODY ASSY, air valve |
| 39 | • RING, packing |
| 40 | • LINK ROD |
