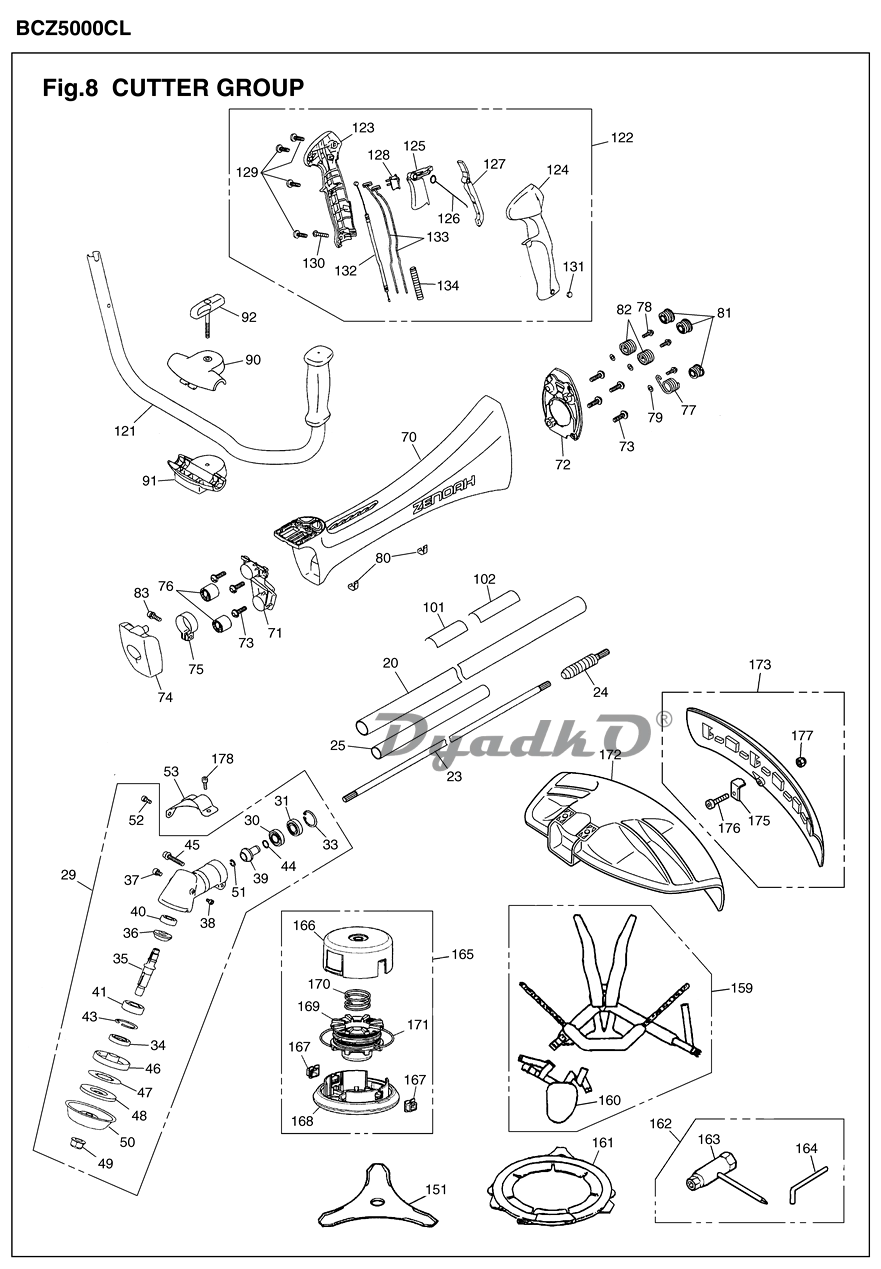

Схема ZENOAH BCZ5000DL, BCZ5000DW, BCZ5000CL (SERIAL NUMBERS: DRIVE UNIT 51000101 and up; ENGINE UNIT 61004647 and up)(November 2008) 03 CUTTER GROUP (BCZ5000CL)

20	PIPE COMP.
23	SHAFT
24	JOINT COMP.
25	SLEEVE
29	GEARCASE ASSY
30	• BEARING
31	• BEARING
33	• RING
34	• SEAL
35	• SHAFT
36	• GEAR
37	• BOLT TORX
38	• BOLT TORX
39	• PINION
40	• BEARING
41	• BEARING
43	• RING, SNAP
44	• RING
45	• BOLT TORX
46	• HOLDER (A)
47	• PLATE
48	• HOLDER (B)
49	• NUT M12xP1.25
50	• COVER
51	• SNAP RING
52	• BOLT TORX M5xL12 T27
53	PLATE
70	FRAME
71	BRACKET-F
72	BRACKET-L
73	SCREW TP5(P-tight)xL16 T27
74	HOLDER
75	BAND
76	ABSORBER
77	SPRING
78	BOLT TORX M5xL16 T27
79	WASHER
80	CLAMP
81	ABSORBER
82	SPRING
83	BOLT TORX
90	BRACKET-UP
91	BRACKET-LO
92	KNOB
101	PLATE NAME
102	PLATE
121	HANDLE COMP.
122	GRIP ASSY
123	• BODY-R
124	• BODY-L
125	• LEVER
126	• SPRING
127	• LEVER-S
128	• SWITCH
129	• SCREW
130	• SCREW TORX
131	• NUT
132	• CABLE COMP.
133	• CORD COMP.
134	• TUBE
151	BLADE
159	HARNESS ASSY
160	• HIP PAD ASSY
161	COVER BLADE
162	TOOL SET
163	• SOCKET
164	• BAR
165	TAPHEAD ASSY (ACC.)
166	• CASE
167	• EYELET
168	• COVER
169	• CORD HOLDER
170	• SPRING
171	• CORD
172	GUARD
173	GURD ASSY
175	• BLADE
176	• BOLT TORX M4xL16 T27
177	• NUT
178	BOLT TORX
