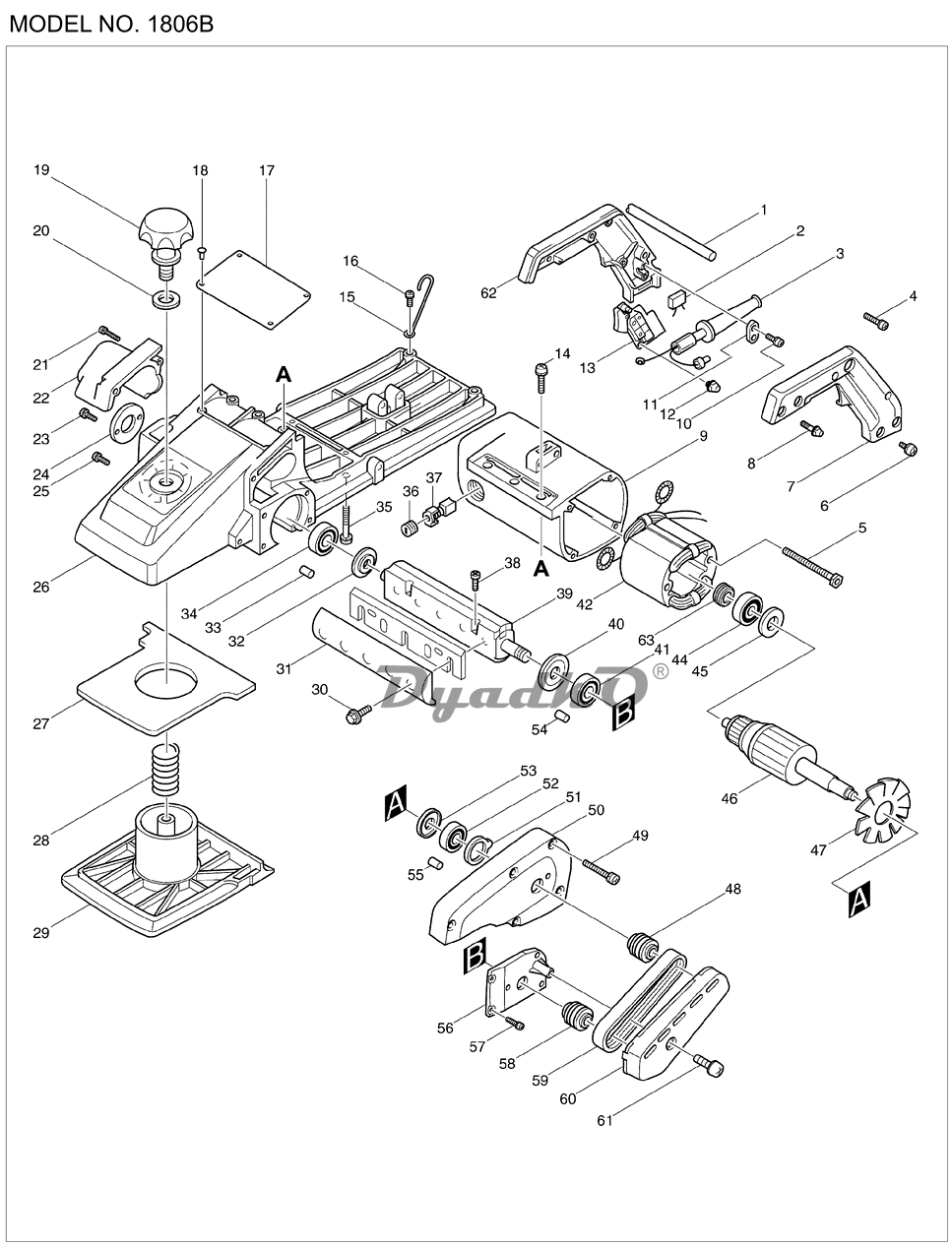

Схема MAKITA 1806B

1 POWER SUPPLY CORD 1.0-2-5.0
2 NOISE SUPPRESSOR
3 CORD GUARD 9.3-90
4 PAN HEAD SCREW M4X30
5 PAN HEAD SCREW M5X75
6 PAN HEAD SCREW M5X12
7 HANDLE SET INC. 62
8 PAN HEAD SCREW M5X30
9 MOTOR HOUSING
10 PAN HEAD SCREW M4X18
11 STRAIN RELIEF
12 PAN HEAD SCREW M4X6
13 SWITCH HPAHC2-35S
14 PAN HEAD SCREW M5X18
15 HOLDER
16 PAN HEAD SCREW M6X16
17 NAME PLATE 1806B
18 RIVET 0-5
19 KNOB 64
20 FLAT WASHER 13
21 PAN HEAD SCREW M4X30
22 CHIP COVER
23 PAN HEAD SCREW M5X10
24 BEARING COVER 38
25 PAN HEAD SCREW M5X10
26 MAIN FRAME
27 RUBBER PACKING
28 COMPRESSION SPRING 24
29 FRONT BASE
30 HEX. SOCKET HEAD BOLT M6X17
31 DRUM PLATE SET (new)
31 DRUM PLATE (old)
32 WASHER 10
34 BALL BEARING 6200ZZ
35 PAN HEAD SCREW M5X35
36 BRUSH HOLDER CAP 6.5-13.5
37 CARBON BRUSH CB-153 фото аналога
38 + FLAT HEAD SCREW M5X13
39 DRUM
40 WASHER 12
41 BALL BEARING 6201ZZ
42 FIELD ASS\'Y 220V
44 BALL BEARING 6000LLB
45 INSULATION WASHER
46 ARMATURE ASS\'Y 220V INC. 44,45,47,52,53
47 FAN 80
48 V-PULLEY 6-23L
49 PAN HEAD SCREW M5X40
50 BRACKET COMPLETE INC. 55
51 WASHER 26
52 BALL BEARING 6201LLB
53 DUST SEAL 12
54 RUBBER PIN 6
55 RUBBER PIN 6
56 DRUM HOUSING INC. 54
57 PAN HEAD SCREW M4X14
58 V-PULLEY 6-30
59 POLY V-BELT 6-304
60 BELT COVER
61 PAN HEAD SCREW M5X10
62 HANDLE SET INC. 7
63 RUBBER RING 26
400 TRIANGULAR RULE
401 WING NUT M5
402 GUIDE RULE ASS\'Y INC. 401,403
403 CAP SQUARE NECK BOLT M5X12
404 PLANER BLADE 170
405 HEX. WRENCH 4
408 SHARPENING HOLDER ASS\'Y
409 WOODEN CARRYING CASE
900 NOZZLE
