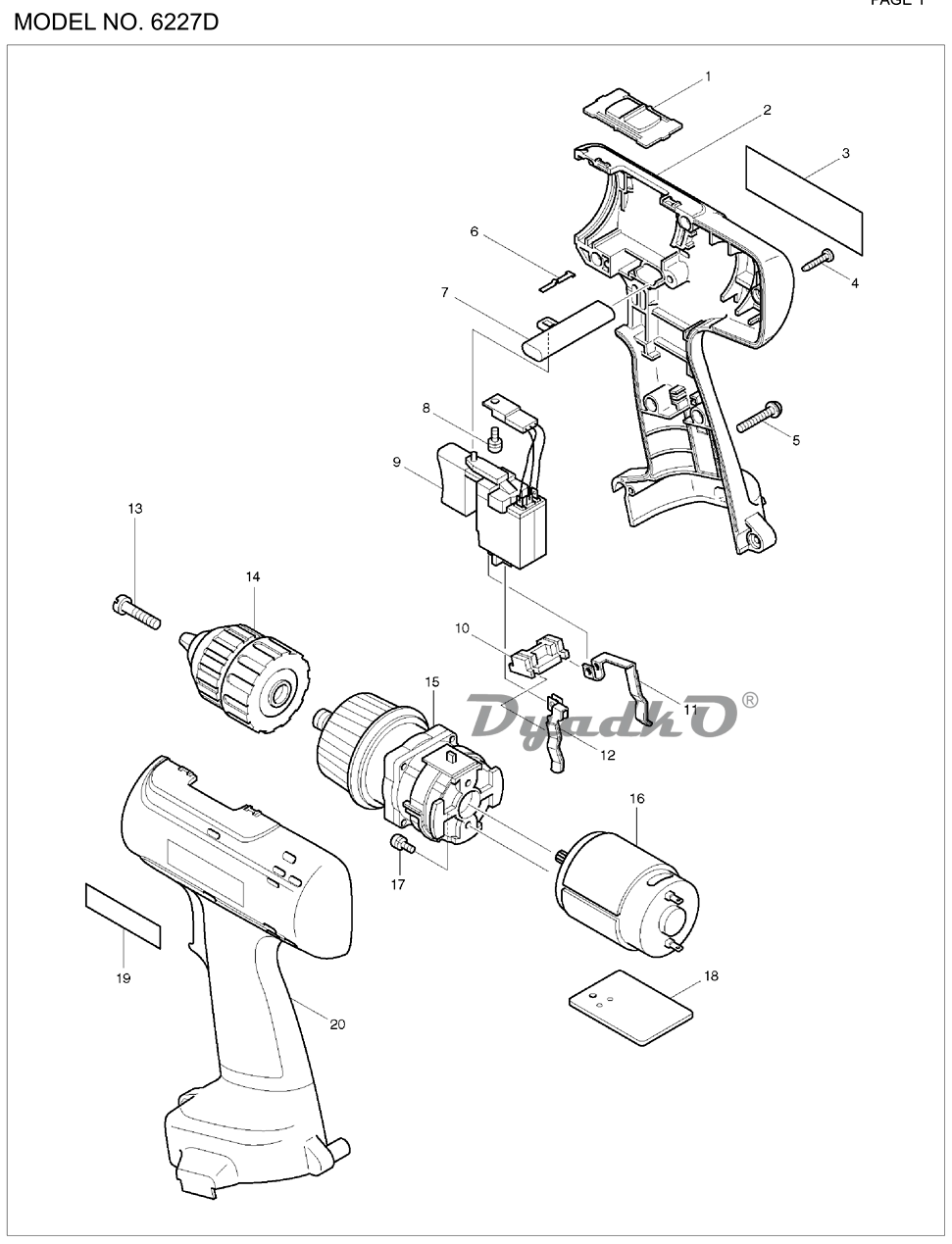

Схема MAKITA 6227 D 6227D

1	SPEED CHANGE LEVER ASS\'Y
2	HOUSING SET INC. 20
3	NAME PLATE 6227D (new)
3	NAME PLATE 6227D (old)
4	TAPPING SCREW BIND PT 3X16
5	PAN HEAD SCREW M4X22
6	LEAF SPRING
7	F/R CHANGE LEVER
8	PAN HEAD SCREW M3X6
9	SWITCH (new)
9	SWITCH (old)
10	HOLDER
11	SPRING TERMINAL (+) (new)
11	SPRING TERMINAL (+) (old)
12	SPRING TERMINAL (-) (new)
12	SPRING TERMINAL (-) (old)
13	- PAN HEAD SCREW M5X22
14	KEYLESS DRILL CHUCK 10
15	GEAR ASS\'Y
16	DC MOTOR (new)
16	DC MOTOR (old)
17	PAN HEAD SCREW M3X6
18	HEAT SINK
19	MAKITA LABEL
20	HOUSING SET INC. 2
A01	BATTERY COVER
A02	+- BIT 2-65
A03	PLASTIC CARRYING CASE (new)
A03	PLASTIC CARRYING CASE (old)
A03	PLASTIC CARRYING CASE
A04	BATTERY 1220 SET
