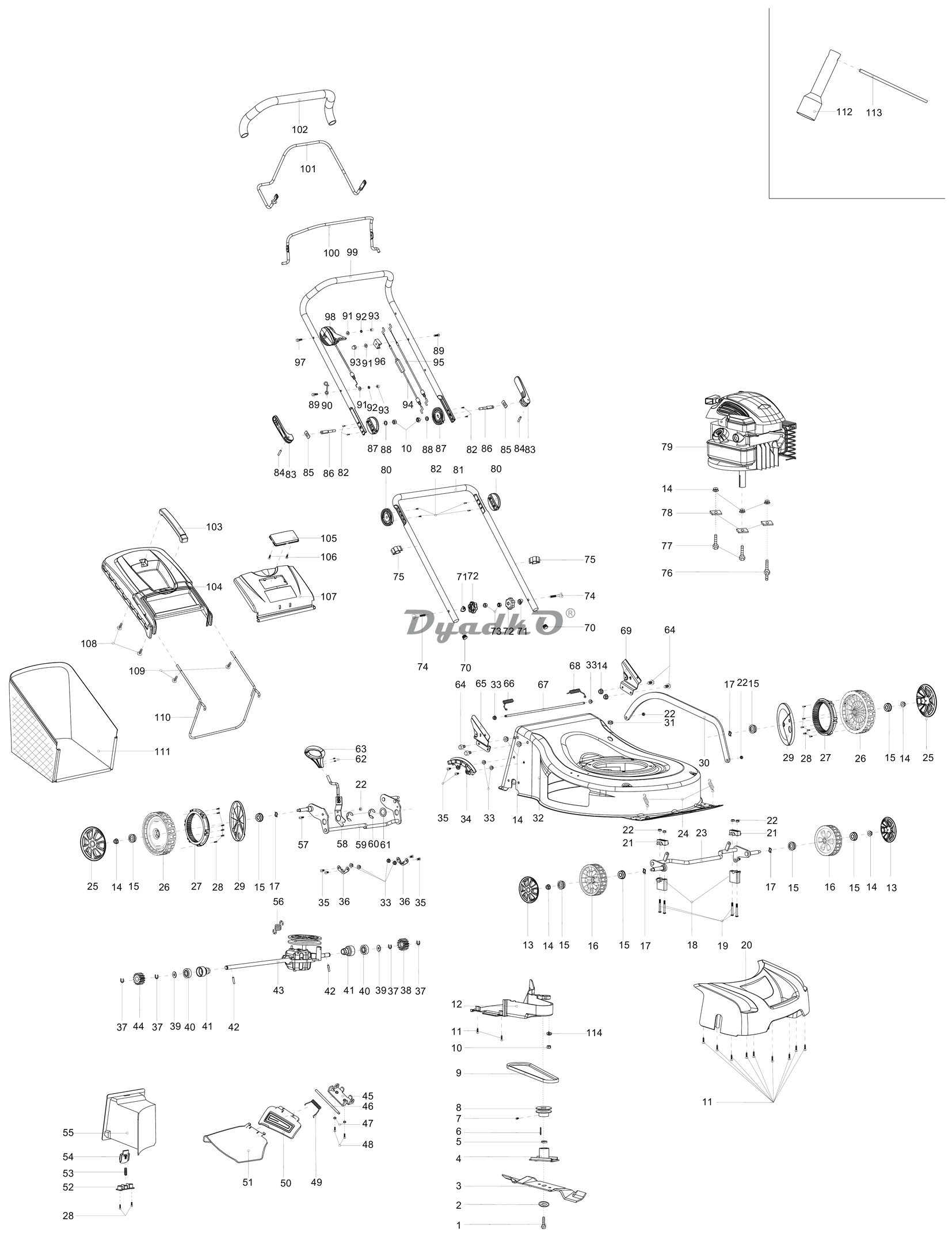

Схема MAKITA PLM 4618, PM-46 S

1 BLADE TIGHTEN SCREW 3/8\", L=40mm
2 LID SHAPE WASHER Φ44.5/10.2x2.5
3 BLADE 460mm
4 BLADE SUPPORT
5 BLADE SUPPORT BUSH
6 FLAT KEY 4.7x4x4.7
7 HEXAGON HEAD BOLT M6*8
8 PULLEY 45
9 V-BELT 762mm
10 HEXAGONAL LOCKING NUT M8
11 SELF-TAPPING SCREW 5x16
12 BELT COVER
13 WHEEL COVER 8\"
14 HEXAGONAL LOCKING NUT M8
15 BEARING
16 WHEEL ASS\'Y 8\"
17 WAVE WASHER φ12xφ18x0.5
18 LOWER SUPPORT OF WHEEL AXIS
19 BOLT M6x60mm
20 FRONT COVER 18\"
21 UPPER SUPPORT OF WHEEL AXIS
22 LOCKING NUT M6
23 FRONT WHEEL AXLE 18\"
24 EXTENSION SPRING OF FRONT WHEEL AXLE
25 WHEEL COVER 11\"
26 WHEEL ASS\'Y 11\"
27 GEAR WHEEL 11\"
28 SELF-TAPPING SCREW ST4x16
29 DUST COVER
30 LINK ROD 18\"
31 CORD PROTECTING SHEATH
32 DECK 18\",MAKITA
33 HEXAGONAL LOCKING NUT M6
34 HEIGHT ADJUSTMENT PLATE 18\"
35 TRIGGER BOLT M6x12
36 RING OF AXLE FIXING
37 SAFETY WASHER
38 GEAR WHEEL, LEFT
39 FLAT WASHER φ12.8xφ20x0.8
40 BEARING
41 BEARING HOUSING
42 CYLINDRICAL PIN Φ5x21.5
43 GEAR BOX 18\"
44 RIGHT GEAR
45 FIXED PLATE
46 AXLE
47 SPRING WASHER φ5
48 TRIGGER BOLT M5*10
49 TORSION SPRING φ3.1
50 SIDE DISCHARGE COVER
51 PROTECTION COVER
52 PRESSING PLATE
53 SPRING φ8.0*φ0.9*31mm
54 LOCKING BUTTON 20\"
55 MULCHING KIT
56 SPRING OF GEAR BOX
57 TRIGGER BOLT M6x14
58 LEVER, HEIGHT ADJUSTMENT
59 REAR WHEEL AXLE
60 SAFETY WASHER φ19x1.5
61 SPRING WASHER Φ35xΦ22.5x1.5
62 SCREW M5x8
63 GRIP
64 HEXAGON HEAD BOLT M8x6
65 BRACKET HANDLE, RIGHT 18\", MAKITA
66 TORSION SPRING, RIGHT
67 LONG POLE φ6,18\"
68 TORSION SPRING, LEFT
69 BRACKET HANDLE, LEFT 18\", MAKITA
70 TUBE PLUG φ22mm
71 WASHER
72 STAR KNOB
73 NUT M8
74 FLAT HEAD BOLT M8x52
75 BOWDEN CABLE CLAMP
76 SPECIAL SCREW M8x17x35
77 HEXAGON BOLT M8x35
78 SQUARE GASKET φ10
79 ENGINE 500/158CC/2.2KW/2600rpm,B&S,XA Q,Makita
80 LOWER ADJUSTING TOOTH RING
81 HANDLE, LOWER PART
82 BOLT 3x10
83 LOCKING HANDLE
84 CYLINDRICAL PIN 5x20
85 PRESSING PLATE
86 BOLT M8x69
87 UPPER ADJUSTING TOOTH RING
88 FLAT WASHER φ16xφ8x0,8
89 BOLT M6x35
90 CABLE HOOK
91 WASHER φ16xφ8x0,8
92 SPRING WASHER φ6,65
93 HEX. LOCK NUT M6
94 CONTROL CABLE (WHEEL DRIVE)
95 CONTROL CABLE (MOTOR BRAKE) 960mm
96 FIXED BRACKET
97 BOLT M6x50
98 THROTTLE HANDLE ASS\'Y
99 UPPER HANDLE
100 LEVER, MOTOR BRAKE
101 LEVER, DRIVING 18\"
102 HANDLE SHEATH φ22xφ32x500
103 GRASS CATCHER HANDLE
104 GRASS-BOX, UPPER 60L
105 TRANSPARENT WINDOW
106 SELF-TAPPING SCREW ST4x12
107 REAR FLAP ASS\'Y
108 SELF-TAPPING SCREW 8x19
109 BOLT 4,2x18
110 GRASS CATCHER BRACKET 18\"/20\"
