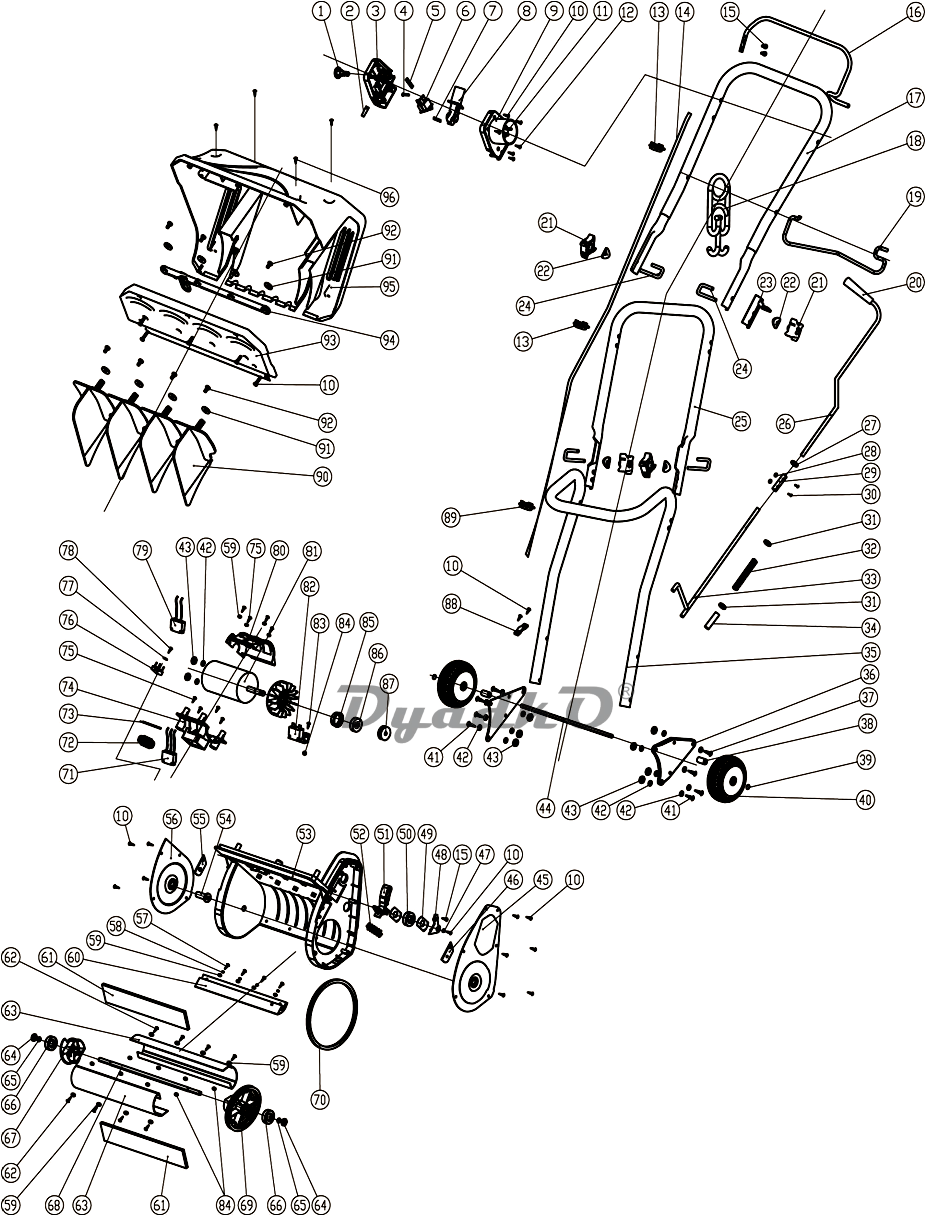

Схема (деталировка) снегоуборщики электрические PATRIOT PS 160 EL. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	switch knob
2	jacket
3	switch seat(Ｒ)
4	rivet
5	spring
6	switch
7	spring
8	switch acutator
9	switch housing(L)
10	screw
11	switch assembly
12	screw
13	cable clip
14	internal wire
15	screw
16	handle bar
17	upper frame
18	hook
19	hook frame
20	direction handle
21	knob
22	washer
23	direction housing
24	U screw
25	middle frame
26	upper direction
27	direction lever\'s rubber cover
28	nut
29	link cover
30	screw
31	washer
32	spring
33	lower directior
34	director cover
35	lower frame
36	supportor
37	screw
38	raller axis connetor
39	washer
40	wheel
41	screw
42	washer
43	nut
44	wheel axis
45	cover(left)
46	fixing part(L)
47	washer
48	belt tension block
49	belt tension cast
50	bearing
51	belt tension
52	spring
53	housing
54	roller axis cover
55	fixing part(R)
56	cover®
57	screw
58	washer
59	washer
60	snow plowing part
61	snow plowing part
62	screw
63	rollar
64	Nut
65	washer
66	bearing
67	right support
68	rollar axis
69	big pulley
70	belt
71	capacitor
72	inductance
73	intenal wire
74	motor housing（lower）
75	screw
76	alternator
77	washer
78	screw
79	capacitor
80	motor upper
81	motor
82	overload protector
83	screw
84	nut
85	bearing washer
86	bearing
87	small pulley
88	clips
89	direction chute
90	washer
91	screw
92	direction chute holder
93	direction chute
94	housing
