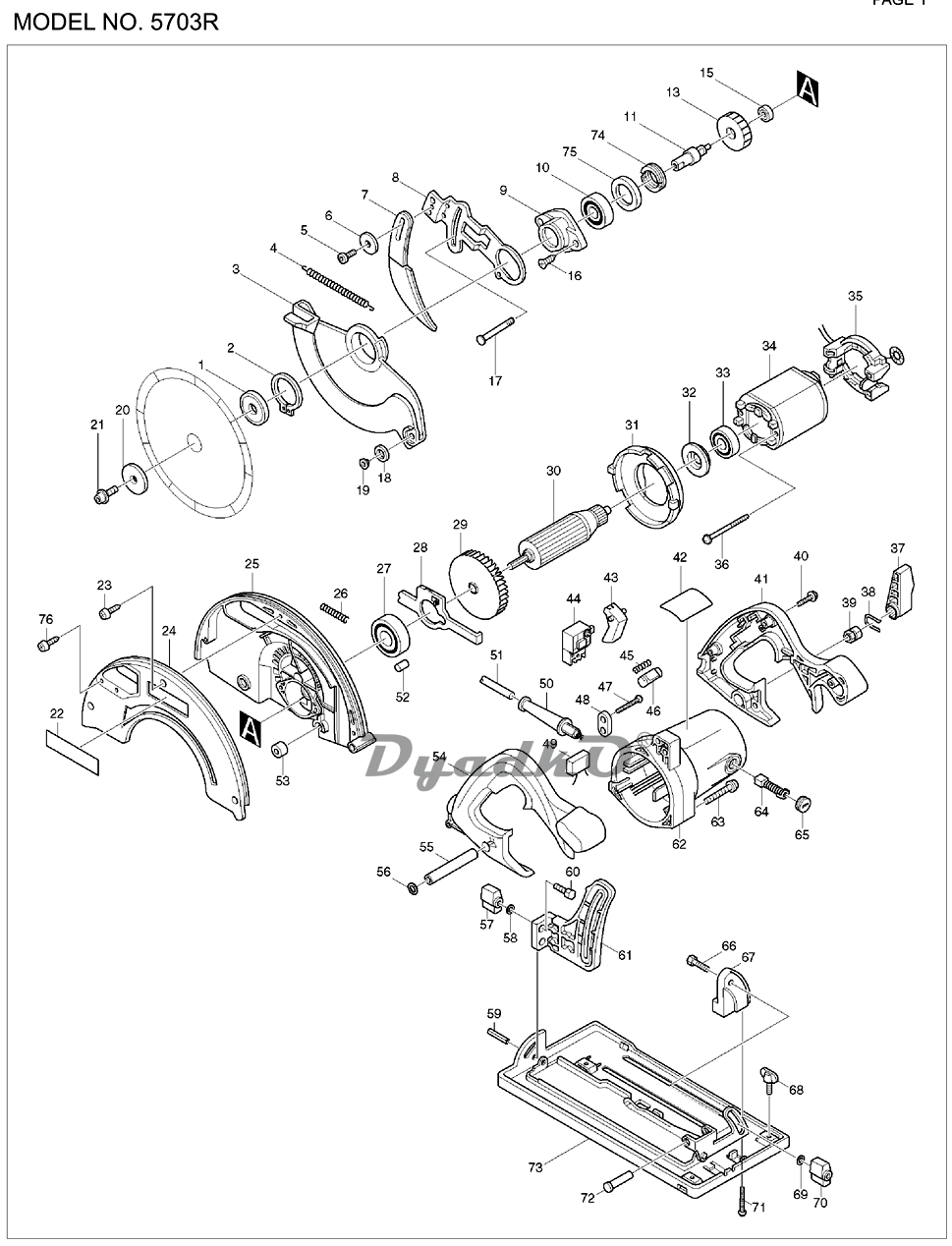

Схема MAKITA 5703R

1 INNER FLANGE 40 (new)
1 INNER FLANGE 40 (old)
2 RETAINING RING S-40
3 SAFETY COVER (new)
3 SAFETY COVER (old)
4 TENSION SPRING 4 (new)
4 TENSION SPRING 4 (old)
5 HEX. SOCKET HEAD BOLT M6X12
6 FLAT WASHER 6
7 RIVING KNIFE (new)
7 RIVING KNIFE (old)
8 RIVING KNIFE HOLDER (new)
8 RIVING KNIFE HOLDER (old)
9 BEARING BOX (new)
9 BEARING BOX (old)
10 BALL BEARING 6002DDW (new)
10 BALL BEARING 6002DDW (old)
11 SPINDLE (new)
11 SPINDLE (old)
12 WOODRUFF KEY 4
13 HELICAL GEAR 41 (new)
13 HELICAL GEAR 41 (old)
14 FLAT WASHER 6
15 BALL BEARING 608 (new)
15 BALL BEARING 626 (old)
16 + COUNTERSUNK HEAD SCREW M5X16
17 CAP SQUARE NECK BOLT M8X98
18 ROLLER 20
19 ROLLER PIN 6
20 OUTER FLANGE 40 (new)
20 OUTER FLANGE 40 (old)
21 HEX. SOCKET HEAD BOLT M6X16 (new)
21 HEX. SOCKET HEAD BOLT M6X20 (old)
22 MAKITA MARK
23 TAPPING SCREW BIND CT 4X20
24 BLADE CASE COVER (new)
24 BLADE CASE COVER (old)
25 BLADE CASE COMPLETE INC. 52 (new)
25 BLADE CASE COMPLETE INC. 52 (old)
26 COMPRESSION SPRING 5
27 BALL BEARING 6201DDW
28 SHAFT LOCK
29 FAN 76
30 ARMATURE ASS\'Y 220V INC. 27,29,32,33
31 BAFFLE PLATE
32 INSULATION WASHER
33 BALL BEARING 608DDW (new)
33 BALL BEARING 608LLB (old)
34 FIELD 220V
35 SUPPORT COMPLETE
36 TAPPING SCREW 5X65 (new)
36 TAPPING SCREW FLANGE PF 5X65 (old)
37 LEVER 54
38 RING SPRING 12
39 HEX. NUT M8
40 TAPPING SCREW 5X25 (new)
40 TAPPING SCREW FLANGE PF 5X25 (old)
41 HANDLE SET INC. 54
42 NAME PLATE 5703R
43 SWITCH LEVER
44 SWITCH TG71B
45 COMPRESSION SPRING 4
46 LOCK-OFF BUTTON
47 TAPPING SCREW 4X18 (new)
47 TAPPING SCREW FLANGE PF 4X18 (old)
48 STRAIN RELIEF (new)
48 CORD CLAMP (old)
49 NOISE SUPPRESSOR 220/240V (new)
49 NOISE SUPPRESSOR 220/240V (old)
50 CORD GUARD 9.3-90 (new)
50 CORD GUARD 8-90 (old)
51 POWER SUPPLY CORD 1.0-2-2.5 (new)
51 POWER SUPPLY CORD 1.5-2-2.5 (old)
52 RUBBER PIN 6
53 RUBBER SLEEVE 6
54 HANDLE SET INC. 41
55 PIPE 9
56 FLAT WASHER 8
57 WING NUT M6
58 FLAT WASHER 6
59 SPRING PIN 6-16
60 HEX. BOLT M6X20
61 DEPTH GUIDE
62 MOTOR HOUSING COMPLETE
63 PAN HEAD SCREW M5X55
64 CARBON BRUSH CB-303
65 BRUSH HOLDER CAP
66 HEX. BOLT M6X20
67 ANGULAR PLATE GUIDE
68 WING BOLT M6X10 (new)
68 SCREW M6X10 (old)
69 FLAT WASHER 6
70 WING NUT M6
71 TAPPING SCREW 4X18 (new)
71 TAPPING SCREW FLANGE PF 4X18 (old)
72 PIN 10
73 BASE (new)
73 BASE (old)
74 BEARING RETAINER 19-34
75 FLAT WASHER 22
76 TAPPING SCREW BIND CT 4X12
77 O RING 44
A01 GUIDE RULE
A02 HEX. WRENCH 5
A03 T.C.T. SAW BLADE 190MM
E03 JOINT
E04 PLASTIC CARRYING CASE (new)
E04 PLASTIC CARRYING CASE (old)
E06 INNER TRAY
