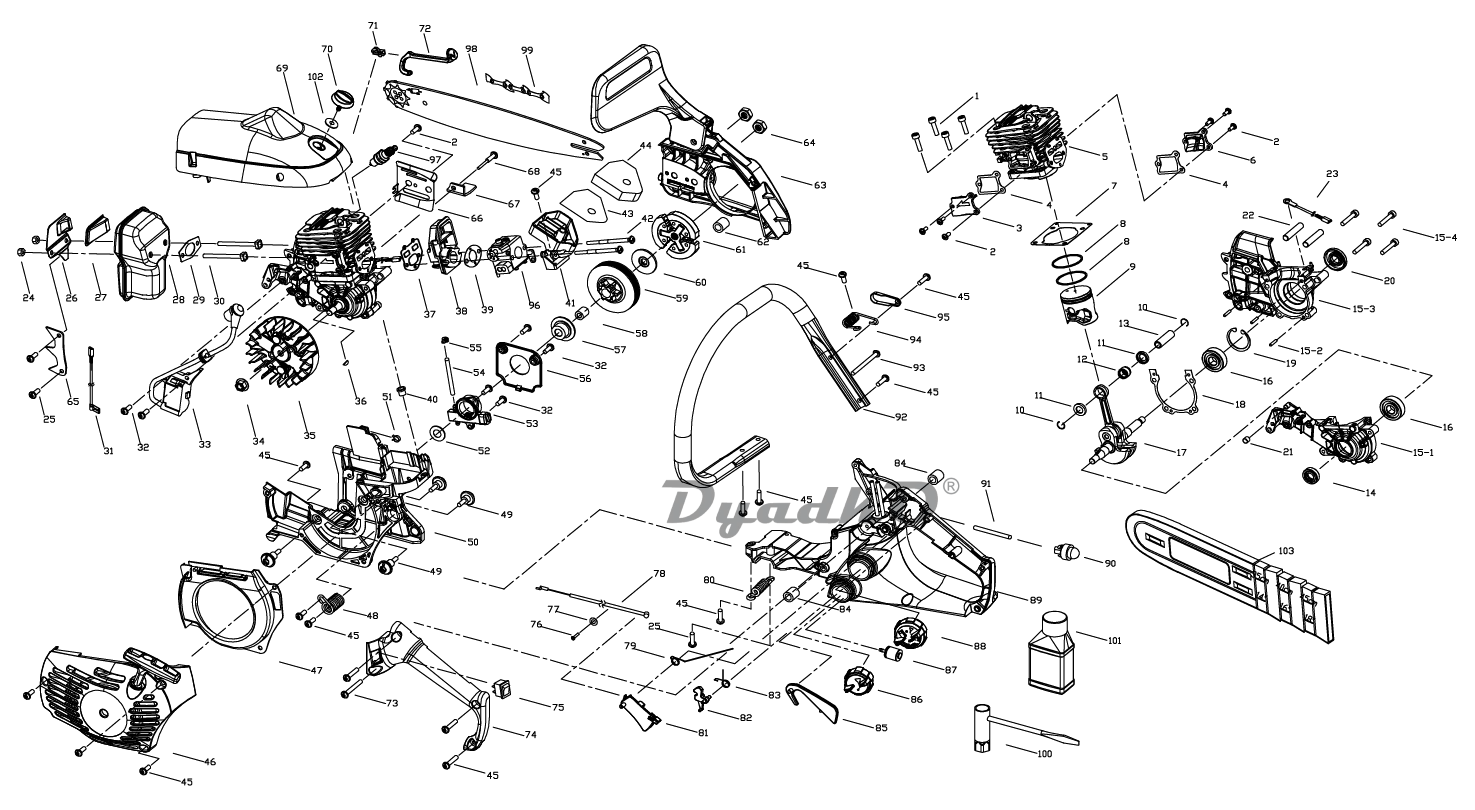

Схема CHAMPION (IGP) 335-16
1
SCREW
2
SCREW
3
CAP
4
GASKET
5
CYLINDER
6
CAP
7
GASKET
8
PISTON RING
9
PISTON
10
RING
11
WASHER
12
ROLLER
13
PIN, PISTON
14
SEAL
15
CLY CASE ASST
15-1
CLY CASE, LEFT
15-2
PIN
15-3
CLY CASE, RIGHT
15-4
SCREW
16
BEARING
17
CRANK/ROD ASST
18
GASKET
19
RING
20
SEAL
21
BUSH
22
SCREW
23
WIRE
24
NUT
25
SCREW
26
COVER, MESH
27
SPARK ARRESTER
28
MUFFLER ASS\'Y
29
BAFFLE
30
SCREW
31
WIRE
32
SCREW
33
IGNITION ASST
34
NUT
35
FLYWHEEL ASST
36
W OODRUFF KEY
37
SPACER
38
ISOLATER, CARBURETER
39
SPACER
40
RUBBER PLUG
41
AIR GUIDE ASST
42
SCREW
43
SET
44
SPONGE
45
SCREW
46
STARTER HOUSING ASS\'Y
47
CAP, AIRWAY
48
SPRING
49
SCREW
50
BRACKET
51
BUSH
52
SPACER
53
PUMP ASST
54
PIPE
55
CONNECTOR
56
CAP, ANTI-DUST
57
WORM
58
ROLLER
59
DRUM ASST
60
WASHER
61
CLUTCH ASST
62
RUBBER PLUG
63
BRAKE KIT ASST
64
NUT
65
SPIKE
66
SPACER
67
CHAIN CATCH
68
SCREW
69
SHROUD
70
KNOB
71
HOLDER, CHOKE LEVER
72
LEVER, CHOKE
73
SCREW
74
HANDLE ASS’Y (L)
75
SWITCH
76
SCREW
77
WASHER
78
CABLE, THROTTLE
79
SPRING
80
SPRING
81
TRIGGER, THROTTLE
82
TRIGGER, THROTTLE
83
SPRING
84
RUBBER PLUG
85
TRIGGER, RELEASE
86
OIL CAP ASS\'Y
87
FUEL FILTER
88
FUEL CAP ASS\'Y
89
HANDLE ASST (R)
90
PRIMER
91
PIPE
92
HANDLE, FRONT
93
SCREW
94
SPRING
95
CAP, SPRING
96
CARBURETER WT-634
97
SPARK PLUG NGK CMR7H
98
BAR
99
CHAIN
100
SPANNER
101
OIL
102
SPACER
103
SCABBARD
