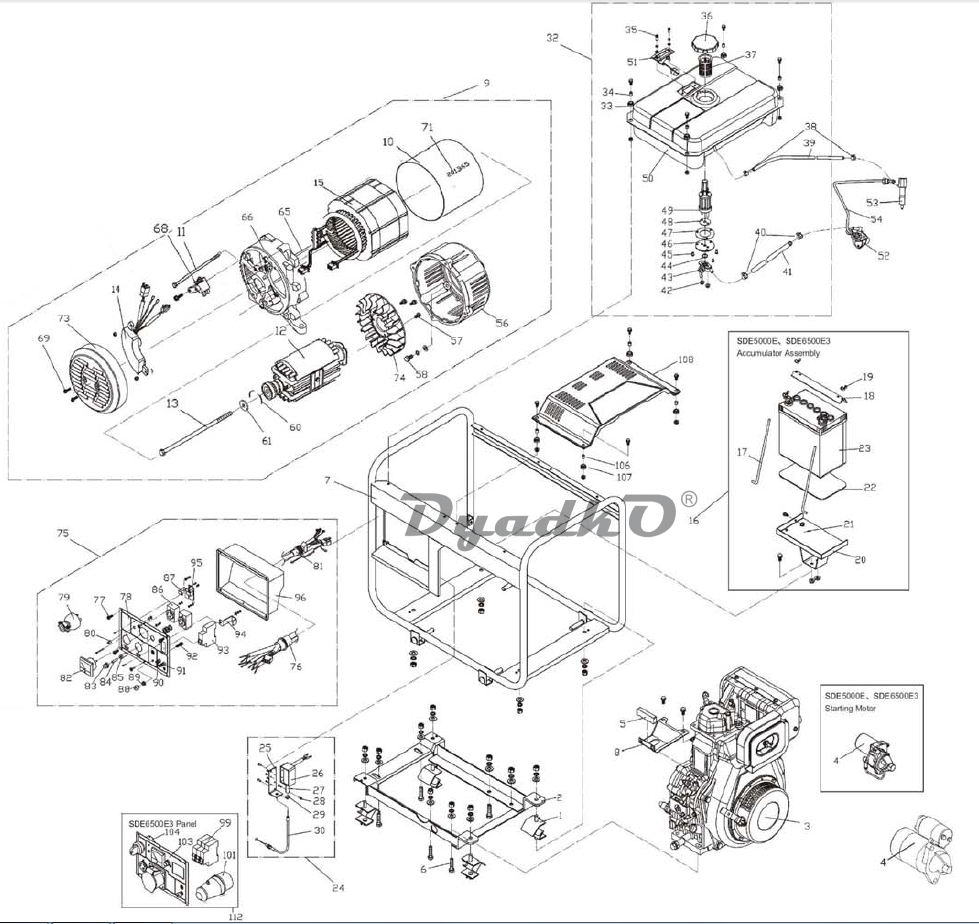

Схема CHAMPION (IGP) DG 6500E3 Генератор
1
Cushion
2
Housing Взв! Wektment Assembly
3
Air-cooled Ches«l
4
Starling Motor
5
Asia tint Support Frame Cushion
6
Bolt M10X40
7
Mousing WeMment Assembly
8
Engine Asistant Support Frame
9
Three-phase Machine AsseirUly
10
Thtee-*he*e Macfutt Saieguird PIMe
11
Screw M6X26
12
Three-phase Generator Rotator
13
Pu«-tfiroogti Shaft Bofl M10X224
14
Three-ptiase Enotation AVR
15
Three-phase Machine Staler
16
Accumulator Assembly
17
Screw Rod
18
Accumulator Pressure Plato
19
Wing Nut M6
20
A:o-tuIjbi fraUM ИНИММ МММЦ
21
Nut M6
22
Accumulator Washer
23
Accumulator 12V
24
E loclromagnol Assembly
25
Eloctromagnot Soiling Plat»
26
Electromagnet
27
tron-corn
28
Screw M5X8
29
Eledromagnol Washer
30
Flexible Shall Unit
32
Fuel Tank Assembly
33
Cushion
34
Sheath
35
Screw M5X12
36
Fuel Tank Cap Joit>1 Assembly
37
Fuel Filler Screen
38
Fuel Return Pipe Cap
39
Fuel Return Pipe
40
Fuel Filler Pipe Clip
41
Fuel Filler Pipe
42
№* M6
43
Fuel Tank Switch Assembly
44
O-Rmg
45
Screw
46
Seal Plate
47
Seal Washer
48
Seal Washer
49
Element Assembly
50
Fuel Tank Weldmont Assembly
51
Oil Mar» Assembly
52
Fuel Pi*np
53
Haute
54
Miah Pressure Fuel Pipe
56
Eiecbcal Mechmery Forepart Cover
57
Sell-Tappma LockoigScrew STS
58
Bolt M8X20
60
Clip Rtfig
61
Pull-through Shaft Bolt Washer
65
Bolt M5
66
Etecocal Mechinery Rare Cover
68
Carbon Brush
69
Self-lapping Locking Screw
71
Generator Serial Number
73
Electical Uechlnery Bootirg А» Cow
74
Etocbcel Machinery Fan
75
Panel Assembly
76
Wiring Harness Setting Sheath
77
Screw M6X16
78
Instrument Panel
79
SmgW-phrase Pin
80
Oil Pressure Alerlng Lamp
81
Circuitry Setting Shealh
82
Voltmeter KD-45
83
Fuse Box
85
Fuse Plastics Bottom Case
86
Single-phrase Receptacle
87
Selling Plate
88
Grounding Screw Cap
89
Nut M6
90
Anode Wiring Terminal Unit
91
Cathodo Wiring Terminal Unit
92
Boll M6x20
93
Air Switch
94
Air Switch Selena PMe
95
Oil Pressure Protecticn Breadboard
96
Instrument Box Rare Cover
99
Air Switch
101
Three-phase Pw
103
Instrument Panel
104
Starting key
106
Sneaih
107
Cushion
108
Decorating board Assembly
112
Panel Assembly
