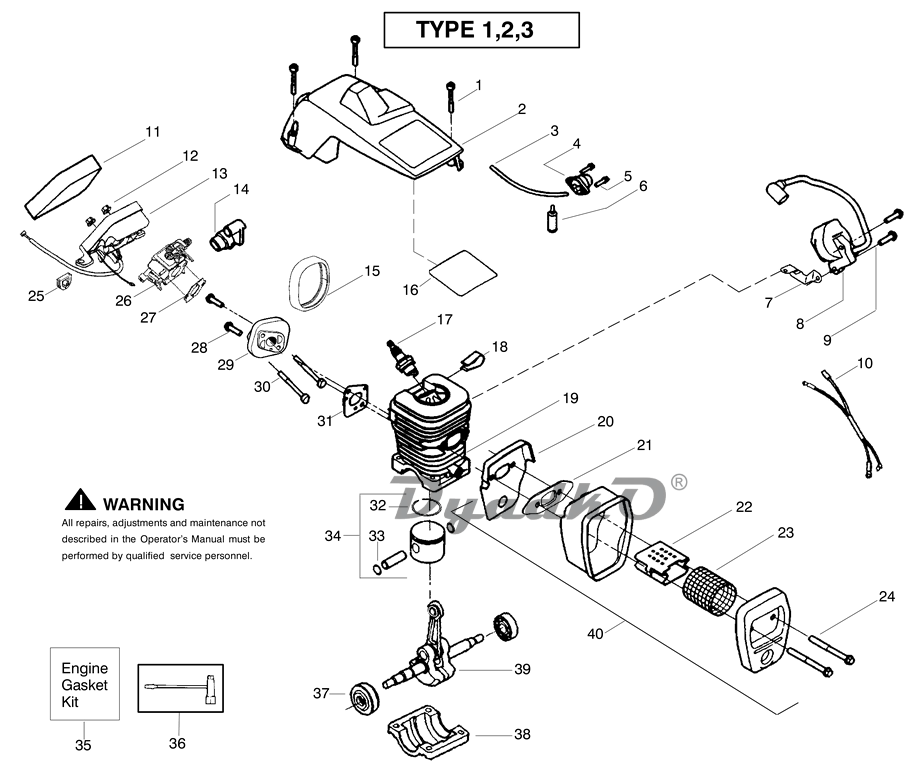

Схема (деталировка) пилы цепные бензиновые PARTNER 352 Chrome (952802058, 952802103) 2008-05 02 Двигатель (Type 1,2,3). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Screw
2	Assy---Cylinder Shield (includes # 16)
3	Kit---Fuel Line (Small)
4	Kit--- Air Purge (incl. #5)
5	Screw
6	Assy---Fuel Pick---up
7	Strap---Ground
8	Ignition Module
9	Screw
10	Assy---Wire Harness
11	Foam--- Air Filter
12	Nut
13	Assy--- Air Box
14	Grommet---Carb Adjust
15	Seal---Carb Adapter
16	Reflector---Heat
17	Spark Plug (RCJ---7Y)
18	Clip---High Tension Lead
19	Cylinder
20	Backplate---Muffler
21	Gasket---Muffler(kit)
22	Diffuser---Muffler
23	Screen---Spark
24	Bolt---Muffler
25	Grommet---Throttle Cable
26	Kit---Carburetor Walbro (WT---891)(Incl. Grommet)
27	Gasket---Carb. (kit)
28	Screw
29	Carb. Adapter
30	Screw
31	Gasket--- Adaptor(kit)
32	Ring---Piston
33	Retainer---Piston Pin
34	Kit---Piston (Incl. 32,33)
35	Kit---Engine Gasket (Incl. 21, 27 & 31)
36	Scrench
37	Assy---Seal & Bearing
38	Cap---Crankcase
39	Assy---Crankshaft
40	Assy---Muffler (Incl . 20,21,22,23,24)
	Не показано на схеме:
	Manuals (English)
	Manuals (Euro 1)
	Manuals (Russian)
	Decal---Warning
