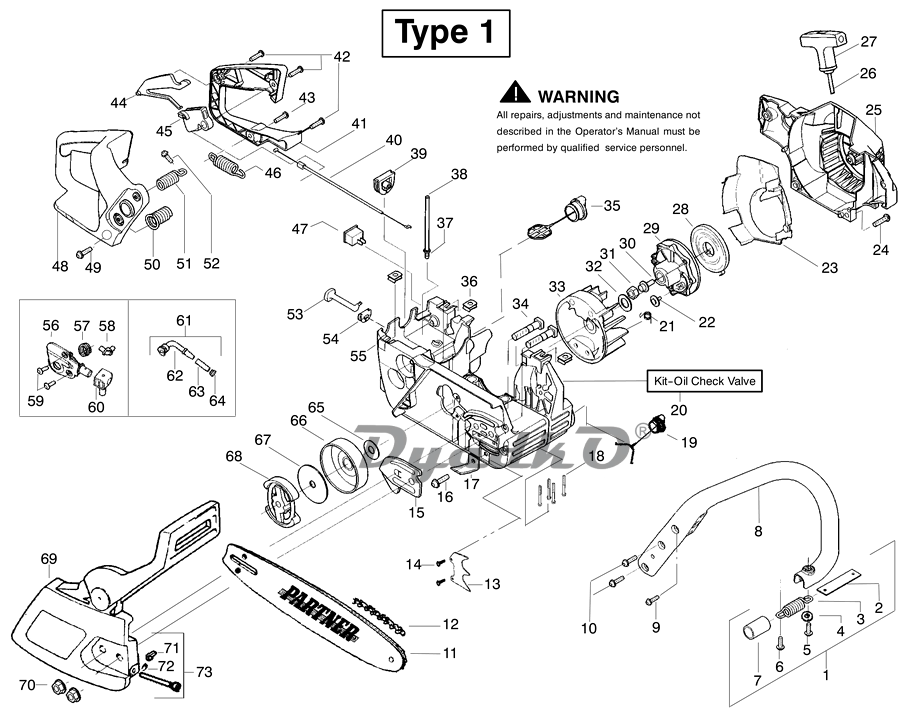

Схема PARTNER 352 (952801904)(952802002) 2008-05 01 Бензопила (Type 1)

1	Assy.--- Isolator
2	Strap---Limiter
3	Spring--- Isolator
4	Washer
5	Screw
6	Screw
7	Sleeve---AV Spring
8	Handle---Front
9	Screw
10	Screw
11	Bar --- 14”
12	Chain 14”
13	Kit---Assy Spike(incl.14)
14	Screw
15	Plate---Bar Mounting
16	Screw
17	Chain Catcher
18	Screw
19	Assy---Oil Cap
20	Kit---Oil Check Valve
21	Spring---Starter Dog
22	Screw
23	Baffle--- Air
24	Screw
25	Housing---Fan
26	Kit---Rope
27	Handle---Starter
28	Spring---Recoil
29	Pulley---Starter
30	Screw
31	Nut--- Flywheel
32	Washer--- Flywheel
33	Assy--- Flywheel
34	Bolt---Bar
35	Assy---Fuel Cap
36	Nut--- ”U”---Type
37	Fitting--- fuel line
38	Kit---Fuel line (large)
39	Grommet---Cable
40	Cable---Throttle
41	Cover---Rear Handle
42	Screw
43	Screw
44	Lockout---Throttle
45	Trigger---Throttle
46	Spring
47	Kit---Switch
48	Handle --- Rear
49	Screw
50	Assy. Isolator --- lower
51	Kit--- Isolator (Upper)
52	Screw
53	Knob---Choke
54	Grommet---Knob
55	Assy---Chassis
56	Kit---Oil Pump (Incls. 57,58,60)
57	Gear---Worm Spring
58	Elbow---Oil Pickup
59	Screw
60	Seal Block
61	Assy---Oil Pickup (Incl. 62---64)
62	Pick---up Oiler
63	Filter---Oil
64	Plug---Oil Filter
65	Washer---Thrust
66	Assy.---Clutch Drum w/bearing
67	Washer---Clutch
68	Assy. Clutch
69	Assy---Chain Brake
70	Nut---Bar Mounting
71	Pin---Retainer
72	Retainer
73	Kit---Bar Adjust
