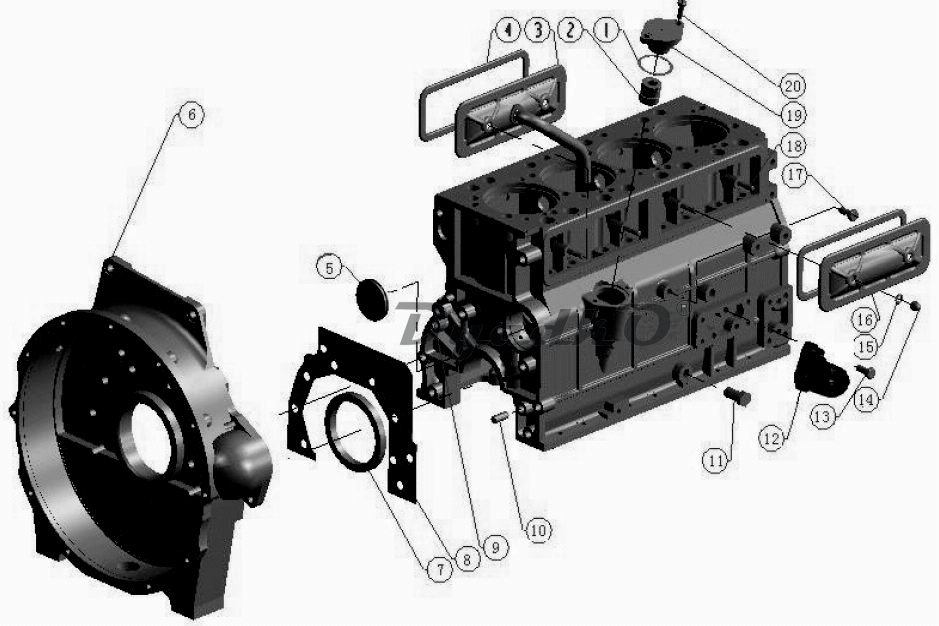

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 20000E3S Цилиндры. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Gasket
2	Bush,oil pump drive gear shaft
3	Rear side cover
4	Gasket, side cover
5	Plug
6	Flywheel housing
7	Oil seal, rear
8	Gasket, flywheel housing
9	plug
10	Dowel pin
11	Hexagon headed plug
12	stand bar
13	Hexagon headed bolt
14	Cap Nut
15	Spring washer
16	ide cover,front
17	Hexagon headed plug
18	Stud
19	Cover for lube,oil pump
20	Hexagon headed bolt
