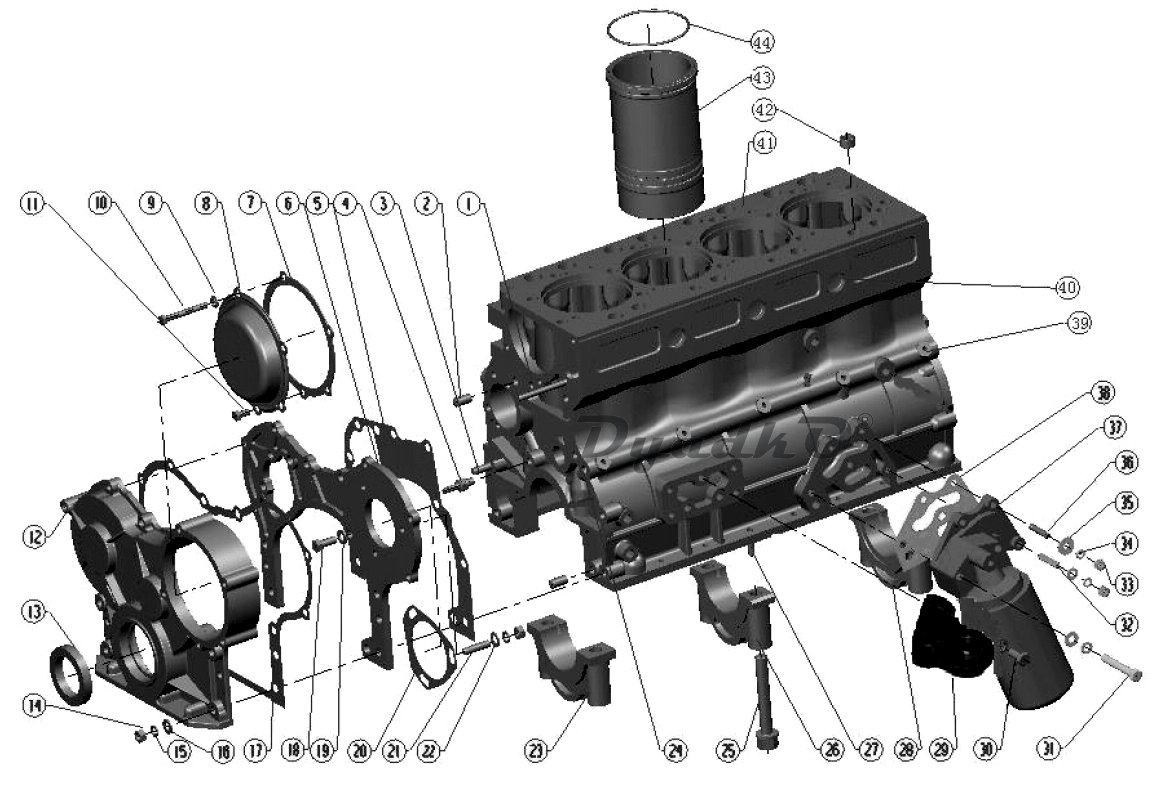

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 20000E3S Картер. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Stud
2	Straight pin
3	Stud
4	Jet
5	Gasket, gear case to block
6	Gear case
7	Gasket advance device cover
8	Advance device cover
9	Washer
10	Hexagon headed bolt
11	Hexagon headed bolt Hexagon headed bolt
11	Hexagon headed bolt Hexagon headed bolt
12	Gear casing
13	Oil seal front
14	Hexagon nut,style I
15	Spring washer
16	Washer
17	Gasket, cover to gear case
18	Hexagon headed bolt
19	Washer
20	Gasket
21	Stud
22	Spring washer, light style
23	Main bearing cap, front
24	plug
25	Main bearing bolt
26	Main bearing cap, middle
27	Stud
28	Main bearing cap, rear
29	stand bar
30	Hexagon headed bolt
31	Hexagon headed bolt
32	Stud
33	Hexagon nut,style I
34	Washer
35	Washer
36	Stud
37	Lubricating oil filter assy
38	Gasket,oil filter connecting plate
39	plug
40	Bowl-shaped plug plate
41	Cylinder block
41	Cylinder block
42	Cylinder head locating sleeve
43	Cylinder liner
43	Cylinder liner
44	Water sealed ring
44	Water sealed ring
