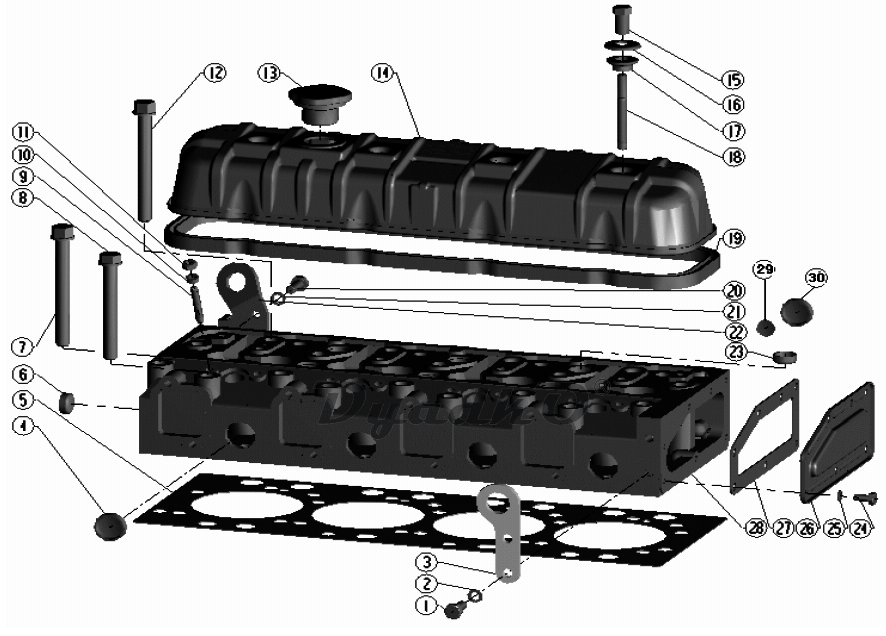

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 2000 E3S Головка цилиндров. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Hexagon headed bolt
2	Spring washer
3	Eye plate, rear
4	Bowl-shaped plug plate
5	Cylinder head gasket assy
6	Bowl-shaped plug,plate
7	Cylinder head bolt,middle
8	Cylinder head bolt,short
9	Stud
10	Spring washer
11	Hexagon Nut, style I
12	Cylinder head bolt,long
13	Oil filler cover GB3452
14	Cylinder head cover assy 10030303M
15	Cap Nut 0394B10
16	Washer Q40110
17	Rubber ring Washer 1003034—1_Q
18	Stud 1003016-2M
19	Rubber sealing gasket-Cylinderhead cover 1003032—1_Q
20	Hexagon headed bolt
21	Spring washer
22	Eye plate, front
23	Bowl-shaped plug plate
24	Hexagon headed bolt
25	Spring washer
26	Rear cover of cvlinder head
27	Gasket of rear cover
28	Cylinder head
29	Bowl-shaped plug plate
30	Bowl-shaped plug plate
	Oil filler cover “ 0\" ring
