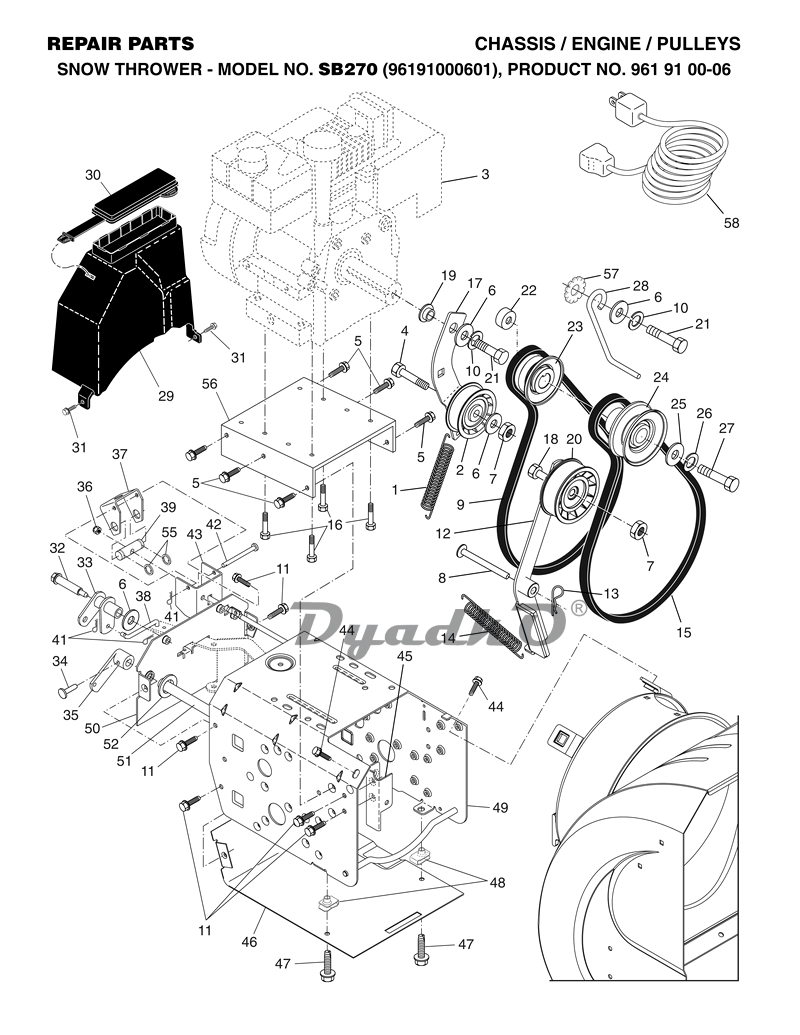

Схема (деталировка) снегоуборщики бензиновые PARTNER SB270 (96191000601) 2007-07 05 CHASSIS / ENGINE / PULLEYS. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Spring, Traction Idler
2	Pulley, Idler (2-1/4)
3	Engine, B&S, Model Number 20A114 (For engine service and replacement parts, call B&S at 1-800-233-3723)
4	Screw, Hex Head 5/16-18 x 1-1/4
5	Screw, Hex Head 5/16-18
6	Washer, Flat
7	Nut, Jam, Lock 5/16-18
8	Pin, Idler Pivot
9	V-Belt, Traction Drive
10	Washer, Lock 5/16
11	Screw, Hex Head 5/16-18 x 1/2
12	Impeller Arm / Pad Assembly
13	Retainer, Hairpin
14	Spring, Brake
15	V-Belt, Impeller Drive
16	Screw, Hex Head 3/8-16 x 1-1/4
17	Arm, Idler
18	Screw, Hex Head 5/16-18 x 1-1/2
19	Bushing, Idler Pivot
20	Pulley, Idler (2-3/4)
21	Screw, Hex Head 5/16-18 x 1
22	Spacer, Engine Pulley
23	Pulley, Engine, Traction Drive
24	Pulley, Engine, Impeller Drive
25	Washer, Flat 3/8
26	Washer, Lock, Helical 3/8
27	Screw, Hex Head 3/8-24 x 1-3/8
28	Guide, Belt
29	Belt Cover Assembly (Includes Toolbox Cover)
30	Cover, Toolbox
31	Screw, Hex Head 1/4-20 x 1/2
32	Bolt, Shoulder 5/16-18
33	Bellcrank Shifter
34	Clevis Pin
35	Arm, Auger Control
36	Nut, Lock 5/16-18
37	Bellcrank
38	Link, Speed Control
39	Trunnion, Pivot Bracket
41	Hairpin, Cotter 3/32 x 1/2
42	Pin, Bellcrank
43	Bracket, Bellcrank
44	Screw, Hex Head
45	Pivot Bracket, Impeller Idler Arm
46	Pan, Frame Bottom
47	Screw, Hex Head 5/16-18 x 3/4
48	Nut, Speed 5/16-18
49	Frame Assembly
50	Plate, Frame End
51	Shaft, Auger Control
52	Washer, Hardened
55	Ring, Crescent
56	Mounting Plate, Engine
57	Washer, Lock, External Tooth 5/16
58	Power Cord
