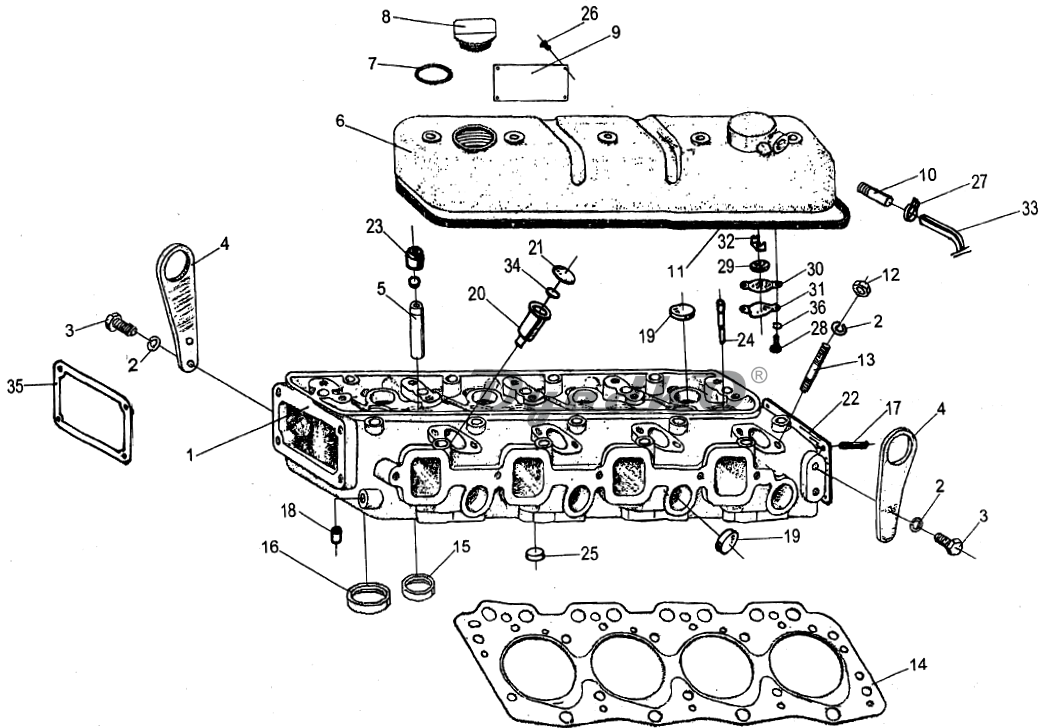

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 15ES E3S Головка цилиндров. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Cylinder head
2	Spring washer,light type
3	Hexagon-header bolt
4	Lifting eye plate
5	Valve guide pipe
6	Cylinder head cover
7	O-Ring 23.6x3.55
8	Oil filler cover
9	Engine nameplate
10	Ventilating pipe
11	Rubber sealing gasket-cylinder head cover
12	Hexagon nut,style I
13	Stud
14	Cylinder head gasket assy
15	Exhaust valve seat
16	Intake valve seat
17	Stud
18	Plug
19	Bowl-shaped plug plate
20	Copper sheathing of fuel injector
21	Copper sheathing compacting ring
22	Strap
23	Air gate-oil seal
24	Lubricating oil coupling pipe
25	Bowl-shaped plug plate
26	Rating plate clinch bolt
27	Clamp
28	Scrw M6xl2
29	Steel wool filter
30	Perforated plate
31	Cover pre-separator
32	Baffle shelf
33	Hose, inlet
34	O-Ring 23.6x3.55
35	Gasket
36	Spring wadher, light type
	Cylinder head assy
	Cylinder head cover assy
	Cylinder head gasket assy
