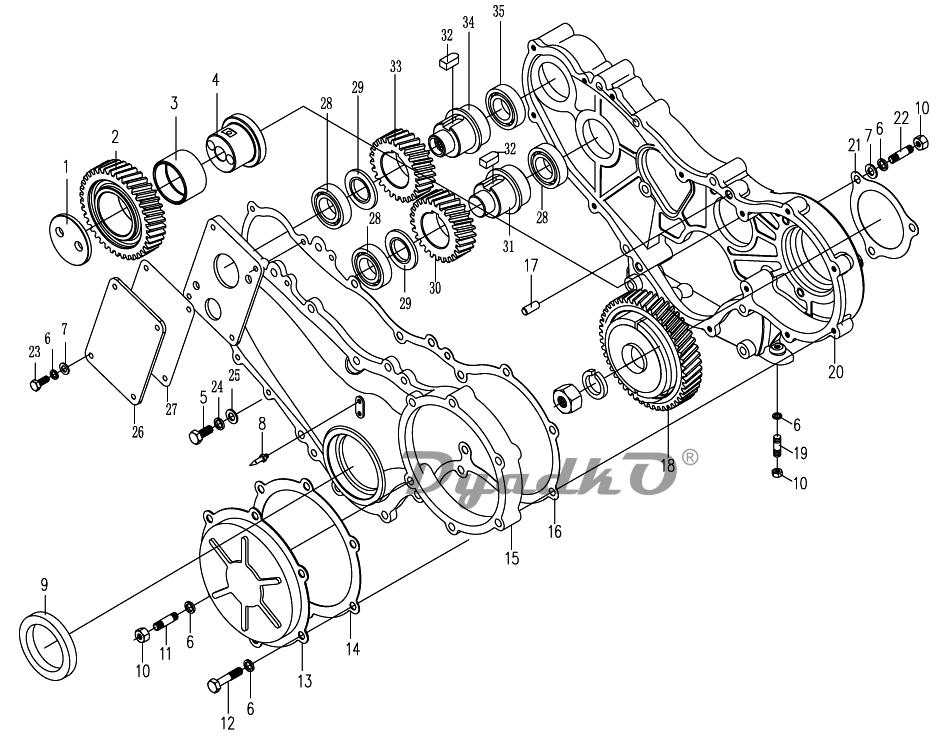

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 12 Редуктор. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Idle gear holddown
2	Idle gear
3	Idle gear bush
4	Idle gear shaft
5	Bolt Ml 0x20
6	Washer 8
7	Washer 8
8	Upper death point showing needle
9	Oil seal DR55x75xl2
10	Bolt MS
11	Bolt M8*40
12	Bolt M8x40
13	Gear case front cover
14	Gear case front cover gasket
15	Timing gear case cover
16	Tuning gear case cover gasket
17	Pin BS*18
18	Injection advacer assy
19	Bolt MSxl6
20	Timing gear cases
21	Fuel injection pump gasket
22	Bolt M8x30
23	Bolt M8x30
24	Washer 10
25	Washer 10
26	Hydraulic pump cover
27	Hydraulic pump gasket
28	6205 deep groove ball bearing
29	Bearing ring
30	Hydraulic pump transition gear
31	Hydraulic pump transition shaft
32	C8X20 square and rectangular key
33	Hydraulic pump gear
34	Hydraulic pump shaft
35	7250C angular contact ball bearing
