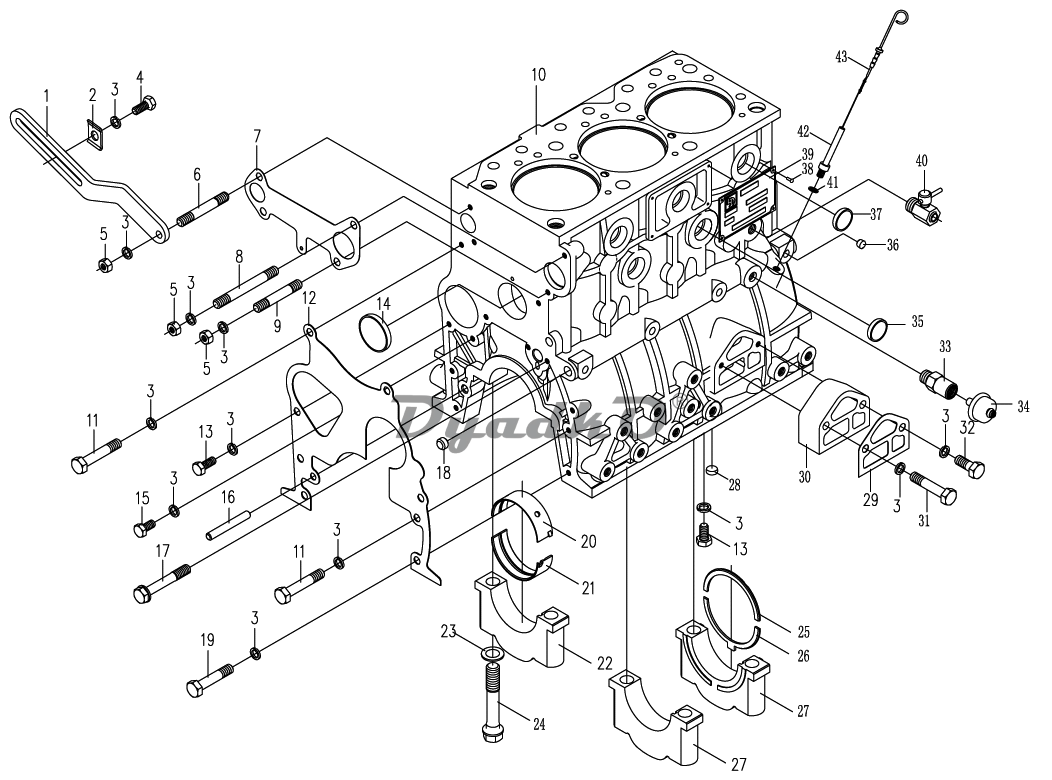

Схема (деталировка) генераторы дизельные CHAMPION (IGP) DG 12 Цилиндр. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Alternator adjustable sppoit
2	Washer 8
3	Washer 8
4	Bolt M8x35
5	NutM8
6	Bolt M8x65
7	Water rear cover gasket
8	Bolt M8x90
9	Bolt M8x60
10	Cylinder block
11	Bolt M8x55
12	Gear case cover gasket
13	Bolt M8x20
14	Blind plug
15	BoltM8xl6
16	Pin B8x50
17	Idle Bolt Ml0x70
18	Main bearing stopper
19	Locating sleeve of main bearing cap
20	Main bearing(upper shell)
21	Main bearing(lower shell)
22	Main bearing cap
23	Washer of main bearing cap boh
24	Main bearing cap bolt
25	Upper thrust piece of crankshaft
26	Lower thrust piece of crankshaft
27	Rear main bearing cover
28	Blind plug ф12
29	Oil filter gasket
30	Oil filter padding block
31	Bolt M8*50
32	Bolt M8x50
33	Connecting pipe for pressure sensor
34	Oil pressuer sensor
35	Bowl shape plug
36	Taper plug
37	Blind plug o32
38	Rivet2x6
39	Brand mark plate
40	Water drain cock
41	Washer
42	Dipstick sleeve weldment
43	Oil level dipstick
