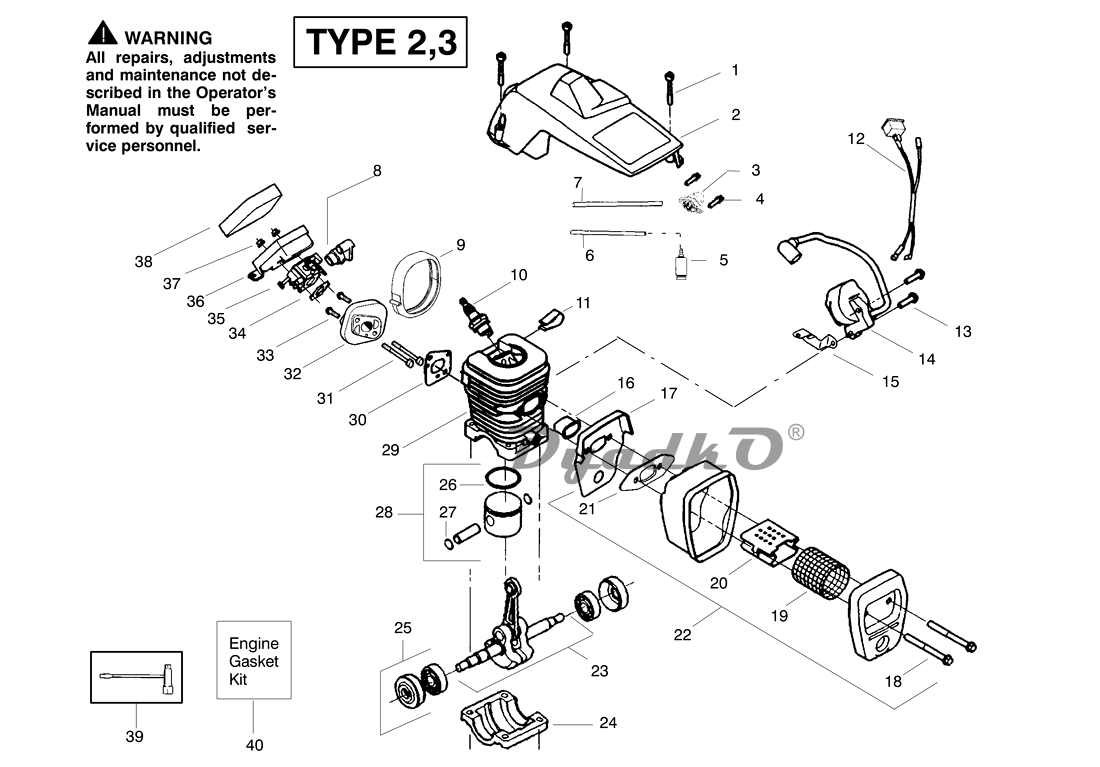

Схема (деталировка) пилы цепные бензиновые MCCULLOCH Mac Cat 441 (952801910)(952801964) 2008-05 06 Двигатель (TYPE 2,3). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Screw
2	Shield--Cylinder
3	Assy--Air Purge
4	Screw
5	Assy--Fuel Pick--up
6	Kit--Line Purge/Carb. (Small Dia)
7	Kit--Line Purge/Tank (large line)
8	Grommet--Carb Adjust.
9	Seal--Carb Adapter
10	Spark Plug (RCJ--7Y)
11	Clip--High Tension Lead
12	Assy--Wire Harness (includes switch)
13	Screw
14	Module--Ignition
15	Strap--Ground
16	Insulator--Heat
17	Back Plate--Muffler
18	Screw
19	Screen--Spark
20	Diffuser--Muffler
21	Gasket--Muffler (kit)
22	Assy--Muffler (Incl. 17--21)
23	Assy--Crankshaft
24	Cap--Crankcase
25	Assy--Seal & Bearing
26	Ring--Piston
27	Retainer -- Piston Pin
28	Kit--Piston -- (incl. 26,27)
29	Kit--Cylinder
30	Gasket--Carb. Adapter (kit)
31	Screw
32	Carb. Adapter
33	Screw
34	Carb. Gasket (kit)
35	Kit--Carburetor (WT--391)
36	Housing--Air Filter
37	Nut
38	Air Filter -- Foam
39	Wrench--Bar
40	Kit--Engine Gasket (incl. 21,30,34)
	Не показано на схеме:
	Manual-- (Scan)
	Manual -- (Euro I)
	Manual -- (Euro II)
	Decal--Warning
	Cap--limiter low(tan)
	Cap--limiter high(brn)
