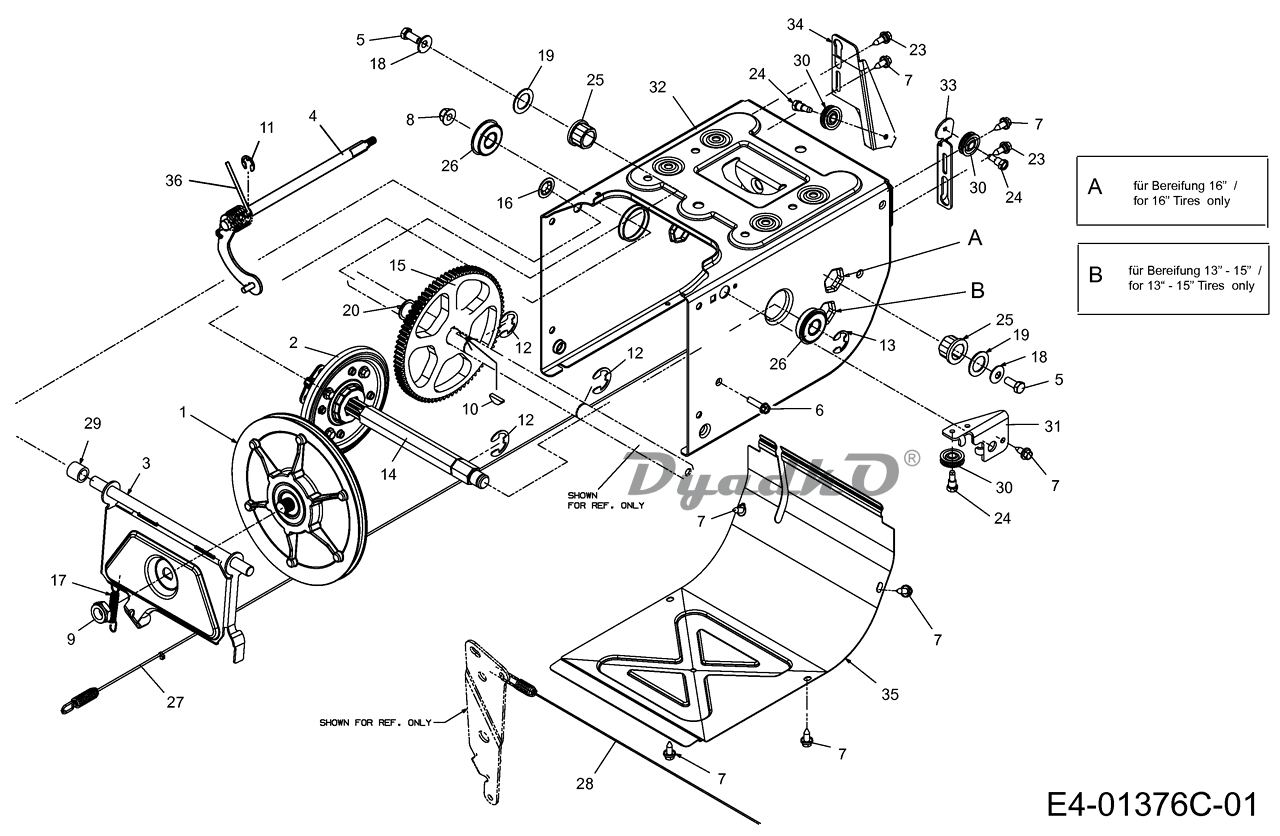

Схема MTD ME 76 (31AY65S5678) (2013) 06 DRIVE

1	DISC ASM:WHL:FRICTION
2	WHL ASM:FRCTN WHEEL
3	BRKT ASM:SUPT:FRCTN WHL
4	SHFT ASM:ROD S/T
5	SCREW HHCS:5/16-24:.750GR5LOCK
6	SCREW:TT:1/4-20:1.000:HXINDWSH
7	SCR:TT:1/4-20 x.625:HXINDWH
8	NUT:FLGLK:3/8-16:GRF:NYLON
9	NUT:FLG:5/8-18
10	KEY-HI-PRO:3/16 x 3/4 DIA
11	E-RING:.500 DIA SHAFT
12	RING:RET:TYPE-E .875 DIA
13	RING:E-TYPE:.750
14	SHF:.8125 HEX - 7 TEETH
15	GEAR:80 TOOTH
16	NUT:SPD:.500
17	SPR:EXTN:.380 OD x 2.500 LG
18	WASH:BLVL:.340 x .872 x .060
19	WASH:FLAT:.793 x 1.24 x .06:HT
20	WASH:FLAT:.75 x 1.00 x .06
23	SCR:SHLDR:.368x.113:TT:1/4-20
24	SCR:SHLDR:.340x.355xC:1/4-28
25	BRG:HEX FLANGE x.75 ID
26	BRG:BALL:17x40x12:6203:DS
27	CBL:CLU:DR:WHL:44.955 LG
28	CABEL:CLUTCH:AUGER: 47.40 LG
29	SPCR:.508 ID x.750 OD x.68
30	cable idler wheel
31	GUIDE BRACKET, FRONT
32	FRM:600:WHL DR
33	BRKT:GDE:CBL:CLU:AUGER
34	BRKT:GDE:CBL:CLU:DRIVE
35	COVER:FRM:S/T
36	TORSION SPRING:.750 IDx .968LG
