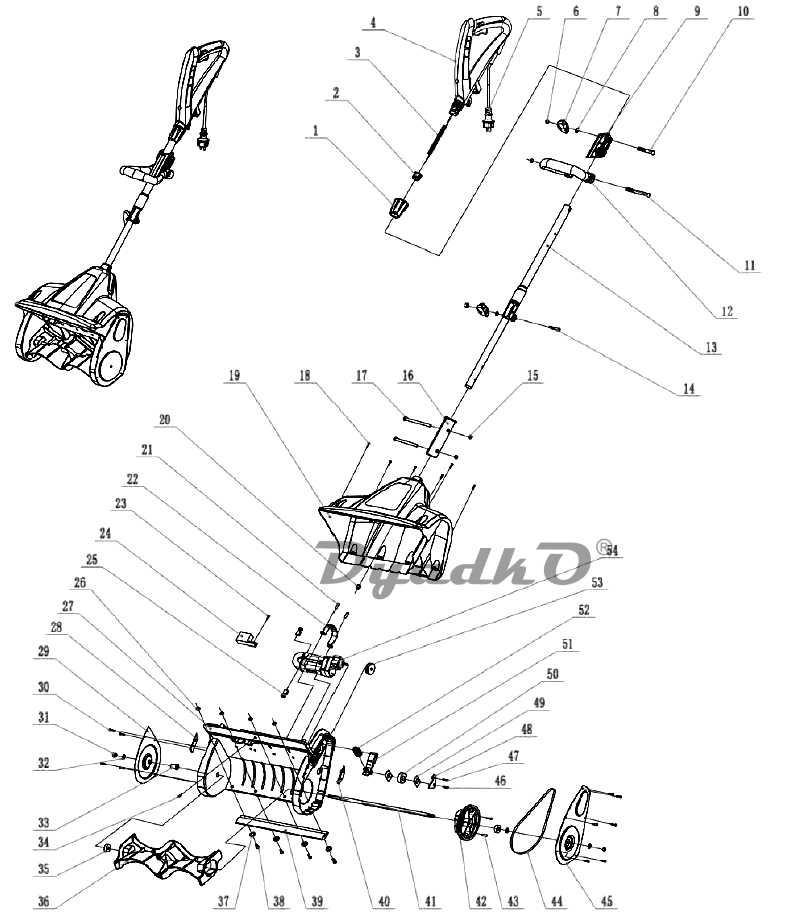

| 1 | Handle Knob |
| 2 | Pige plug |
| 3 | Connect cable |
| 4 | Handle assembly |
| 5 | Power cord |
| 6 | Nylon lock nut |
| 7 | Knob |
| 8 | Flat washer |
| 9 | telescopic clamping seat |
| 10 | Cup head square neck bolt |
| 11 | Cup head square neck bolt |
| 12 | Auxiliary handle |
| 13 | Telescopic handle assembly |
| 14 | Cup head square neck bolt |
| 15 | Nylon lock nut |
| 16 | Pipe bushing |
| 17 | Screw |
| 18 | Screw |
| 19 | Housing |
| 20 | Pipe plug |
| 21 | Screw |
| 22 | Motor plate |
| 23 | Tapping Screw |
| 24 | Overload protection |
| 25 | Carbon brush assembly |
| 26 | Screw |
| 27 | Bottom |
| 28 | Baffle |
| 29 | Right cover |
| 30 | Tapping Screw |
| 31 | Nylon lock nut |
| 32 | Flat washer |
| 33 | Spacer bush |
| 34 | Tapping Screw |
| 35 | Bearing 6000z |
| 36 | Auger |
| 37 | Flat washer |
| 38 | Pan bolt |
| 39 | Shovel |
| 40 | Baffle |
| 41 | Roller shaft |
| 42 | Big pulley |
| 43 | Screw |
| 44 | Multi wedge belt |
| 45 | Left cover |
| 46 | Tapping Screw |
| 47 | Tapping Screw |
| 48 | Baffle |
| 49 | Fixed plate |
| 50 | Bearing 6202z |
| 51 | Tention pully Holder |
| 52 | Tention Spring |
| 53 | Small Pulley |
| 54 | Motor Assembly |
