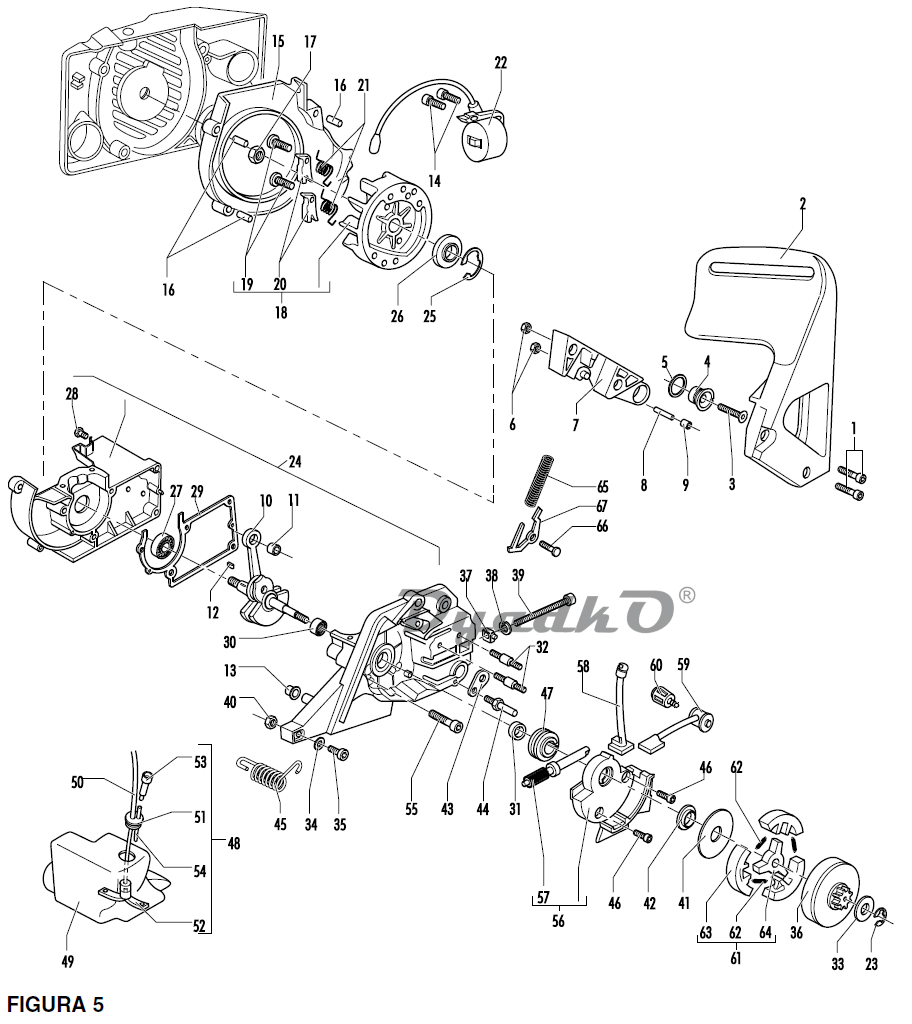

Схема MCCULLOCH Mac 542E Зажигание, Сцепление, Тормоз цепи

1 SCREW M5 X 20 TCE 235806
2 BRAKE LEVER C 241907
3 SCREW M6X25 241905
4 SLEEVE 241904
5 PLAN WASHER D.10X15X1 241906
6 NUT M5 235642
7 BRAKE HOUSWG 241902
8 BAND PIVOT 242017
9 BRAKE NEEDLE 241903
10 CRANKSHAFT ASSY 38cc 241871
10 CRANKSHAFT ASSY 241873
11 NEEDLE BEARING 0 9X14X12 MM C 235742
11 BEARWG NEEDLE C 227329
12 KEY 227631
13 RUBBER SUPPORT WK 235672
14 SCREW M5 X 20 TCE 235806
15 AIR CONVEYOR PROMAC 36 247290
16 SPACER 240358
17 NUTM8 235218
18 FLYWHEEL KEY=2 S7 241204
19 STARTER PIN PAWL B 235516
20 STARTER PAWL B 235517
21 STARTER SPRING B 235518
22 IGNmON COL ASSY-S5 C 241291
23 BENZING 8MM 229137
24 L CRANKCASE KIT 248497
25 SEEGER RING 235899
26 SEAL 15X32X4/5 C 241879
27 BALL BEARING 6002 15/32/9 235900
28 SELF-THREAD. SCREW 4X14 241077
29 GASKET 240312
30 NEEDLE BEARING 15X21X12 241253
31 SEAL 13-32-5 (S7) C 228872
32 BAR BOLT B 241880
33 CLUTCH WASHER 235287
34 WASHER 227259
35 SCREW M5 X 20 TCE 235806
36 DRUM SPROCKET 3/8 B 240260
36 DRUM SPROCKET 325 B 240266
37 NUT BAR ADJUSTMENT B 241908
38 BENZING 4MM B 235367
39 SCREW B 241909
40 NUT M5 235642
41 WASHER 241346
42 CLUTCH SPACER 242006
43 PLATE OL CAP 240309
44 CHAIN BRAKE C 240363
45 SPRING B 240286
46 SCREW M5 X14 TCE 235802
47 OIL PUMP SCREW C 241882
48 FUEL TANK ASSY 240920
49 FUEL TANK 240300
50 HOSE FUEL B 240868
51 FUELTANK GROMMET C 235675
52 PICK UP FUEL A 240452
53 VENT FILTER C 227582
54 BREATHER PIPE OIL TANK 229716
55 M5X30 SCREW 236997
56 OIL PUMP ASSY B 241883
57 OIL PUMP PISTON KIT (S5E) C 241885
58 PIPE JOINT 241895
59 TUBE OIL PUMP 241896
60 BUMPER CUT CONTROL C 225063
61 CLUTCH KIT 242004
62 SPRING B 240926
63 SHOE-CLUTCH 227359
64 ROTOR CLUCTCH 242005
65 BRAKE SPRING 235076
66 LATCH PIVOT 235075
67 BRAKE LATCH 94006
Обозначения:
A= ALTA ROTAZIONE
B=MEDIA ROTAZIONE
C=BASSA ROTAZIONE
A=HIGH MCVING
B=MEDIUM MOVING
C=SLCW MOVING
A= HAUTE DEMANDE
B=MOYENNE DEMANDE
C=BASSE DEMANDE
A=GROGE NACHFRAGE
B=MITTELMAEBIGE
C=WENIGE NACHFRAGE
