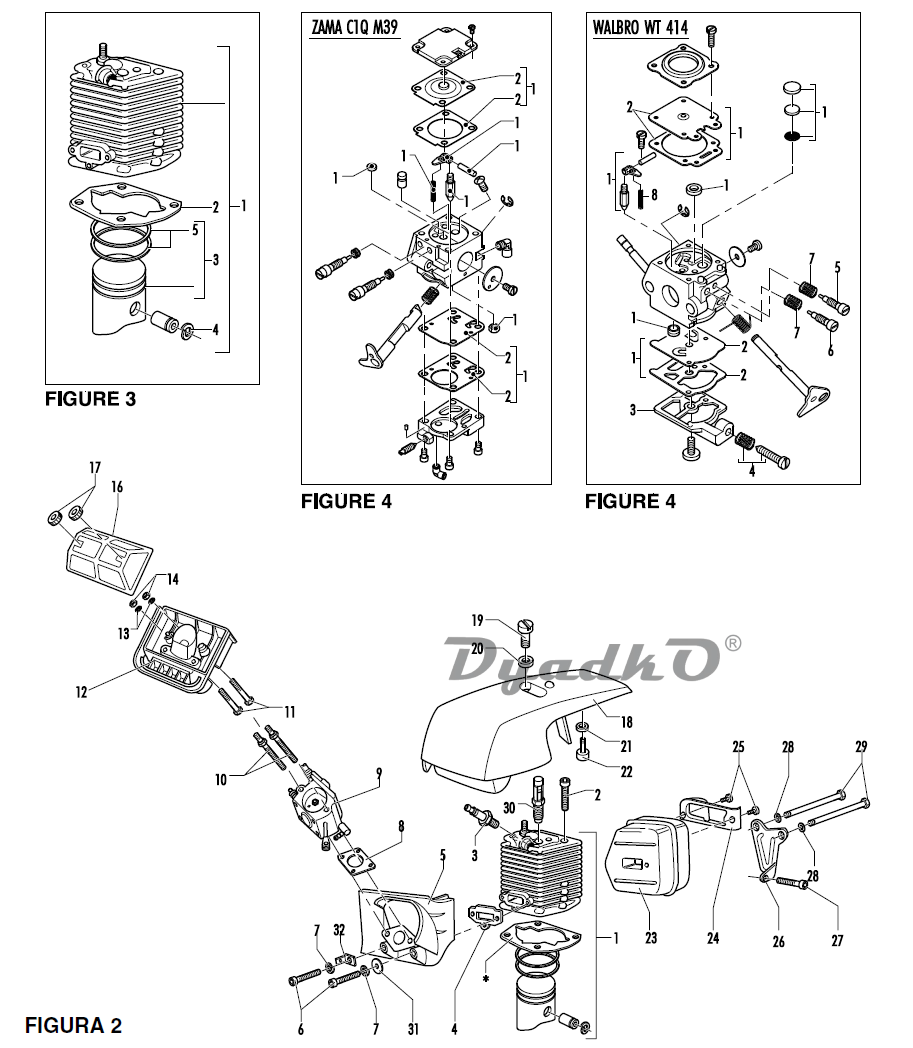

Схема MCCULLOCH Mac 542E Поршневая группа, Карбюратор

1 KIT REPAIR CARB.C1Q B 226226
1 FIGURA 2 C
1 38cc CYLINDER KIT C 247253
1 CYiyPIST.KIT 42cc C 248806
1 CYiyPIST.KIT PM46 II C 248500
1 MAIN KIT CARB.K20 WAT B 247260
2 GASKET B 240343
2 SCFEW M5X25 227565
2 KIT GASKET+DIAPH C1Q A 226227
2 GASKET-DIAPH.W A 229191
2 GASKET B 240343
2 GASKET B 242366
3 46cc PISTON KIT C 247258
3 PUMP COVER 247261
3 38cc PISTON KIT C 247256
3 SPARK PLUG RDJ8J A 92879
3 PISTON KIT 42cc C 248807
4 RETAMING RING 229544
4 GASKET B 240345
4 IDLE SCREW KIT 237481
4 RETAMING RING 229544
4 RNG SNAP INT. 235008
5 PISTON RING (1PC) B 240005
5 HI SCREW CARB.WT 414 247388
5 CARB.SPACER 240261
5 46cc PISTON RING B 240353
5 CARB.SPACER (538E) 240271
5 42cc PISTON RING B 240085
6 M5X30 SCREW 236997
6 HIGH SPEED NEEDLE 246540
7 SPLIT WASHER 236529
7 NEEDLES SPRWG 229601
8 GASKET A 227692
8 98-3249 SPRWG C 247387
9 FIGURA 4 C
10 BAR BOLT 240328
11 M4X40 SCREW 240334
12 AIR FILTER BOX 240262
13 WASHER M5 235248
14 NUT M5 235216
15 RUBBER CAP 241239
16 AIR FILTER B 240263
17 NUT 240322
18 RED ENGINE COVER PM46 1 242161
18 GOLD ENGINE COVER DM 40 242670
18 GOLD ENGINE COVER PM46 II 242660
19 SCREW 240320
20 WASHER 240321
21 WASHER 236936
22 FAN BAFFLE 240272
23 MUFFLER 240291
24 PROMAC MUFFLER BAFFLE 240297
25 T5 SCREW 236981
26 SUPPORT MUFFLER 240299
27 M5X30 SCREW 236997
28 WASHER D-5 227626
29 SCREW M5X70 227567
30 VALVE COMP.RELEASE 94273
31 WASHER M5 235248
32 CONTACT WIRE 228139
42 CC
38 CC
ZAMA C1QM39
C=WENIGE NACHFRAGE
WALBRO WT414
46 CC
A=GROGE NACHFRAGE
B=MITTELMAEBIGE
FIGURA 3
Обозначения:
A= ALTA ROTAZIONE
B=MEDIA ROTAZIONE
C=BASSA ROTAZIONE
A=HIGH MCVING
B=MEDIUM MOVING
C=SLOW MOVING
A= HAUTE DEMANDE
B=MOYENNE DEMANDE
C=BASSE DEMANDE
_ CARB.ZAMA C1Q M39 C 242062
_ CARBURATOR WT 414 C 240350
