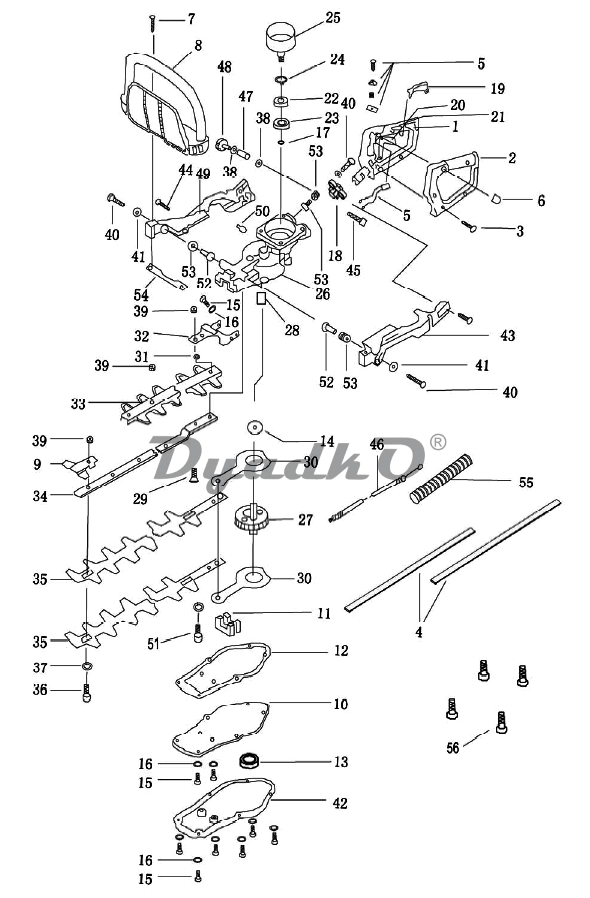

Схема CHAMPION (IGP) HT726 Нож, ручка

1	handle А 7697
2	handle В 7698
3	seres 9006
4	Safty guard 7788
5	stop switch assy 3860
6	Rubber cover 7772
7	seres 4481
8	Handle 7691
9	Support В 7781
10	crear case inside lid 7779
11	Felt 7781
12	Gasket 7776
13	Bearing 7802
14	Washer 7801
15	Seres 66S9
16	Washer 1250
17	Ring 1531
18	Seat 7699
19	lioite location handle 7696
20	throttle lever handle 7695
21	Soring 7773
22	Bearing 3513
23	Bearing 46
24	Ring 4540
25	Drum 7782
26	Gear case 7780
27	Eceenter 7777
28	Bearing 7800
29	seres 1266
30	Transmission arm 7778
31	Washer 7809
32	suDDtarter A 7783
33	Safeguard 7787
34	Settle plate 77S6
35	Blade 7785
36	Adjusting bolt 7219
37	Washer 1537
38	Washer 3232
39	pressed nut 4471
40	seres 6686
41	Washer 3015
42	Gear case lid 7775
43	left handle connect 7692
44	Seres 6706
45	Seres 1165
46	Cable comp 7799
47	Spacer 7774
48	Knob 2259
49	right handle connect 7693
50	Butter nipple 3697
51	Blade adjusting bolt 9905
52	damDine seat 7691
53	damping cover 7771
54	impaction slice 7770
55	Wave tube
56	seres 1211
