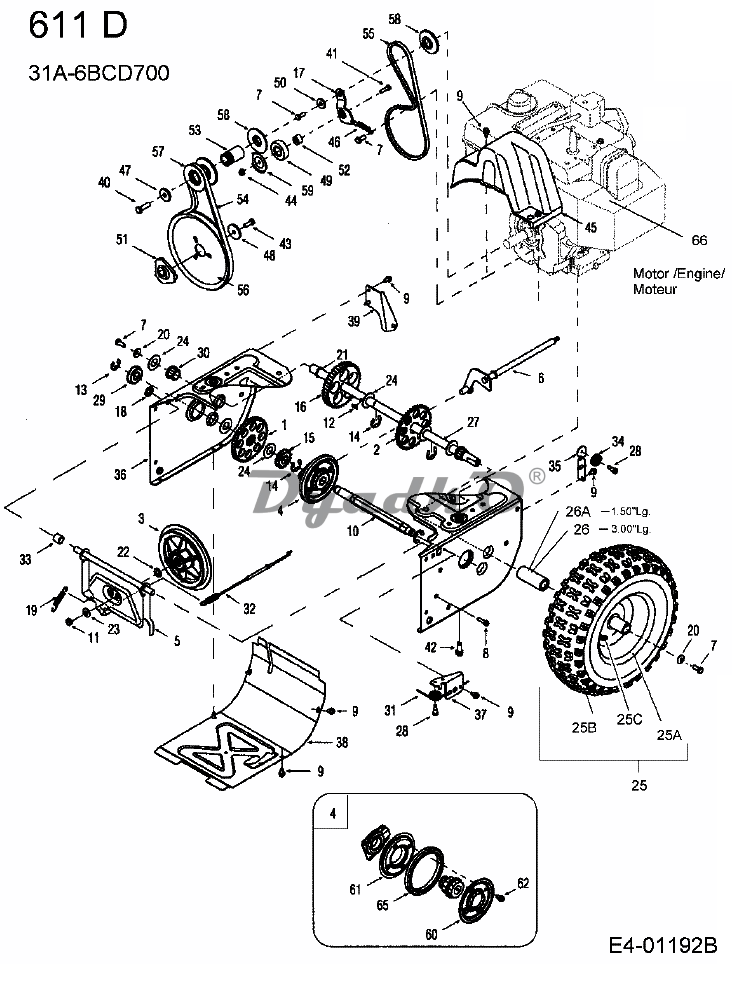

Схема MTD 611 D (31A-6BCD700) (2006) Drive system, Milling drive, Wheels

1 GEAR ASM 16/44 T
2 GEAR ASM 16/44 T
3 DISC-ASSY FRICTION
4 DRIVEN DISC
5 SUPPORT BRACKET ASSY
6 SHIFT ASSY, ROD
7 SCREW HHCS:5/16-24:.750G R5LOCK
8 SCREW:TT:1/4-20:1.000:HXIN DWSH
9 SCR:TT:1/4-20 x.625:HXINDW H
10 AXLE
11 NUT:JAM:3/8-24:GR5
12 KEY:HI-PRO:3/16 x 5/8
13 RING:E-TYPE:.750
14 RING:RET:TYPE-E .875 DIA
15 GEAR-PINION 16 T SNOWTH ROWER
16 GEAR 44T
17 BRACKET-IDLER
18 NUT:SPD:.500
19 SPR:EXTN:.380 OD x 2.500 LG
20 WASH:BLVL:.340 x .872 x .060
21 WASH:FLAT:.75 x 1.00 x .06
22 WASH:FLAT:.406 X .875 X.059
23 SPRING WASHER .401 x.870 x
24 WASH:FLAT:.793 x 1.24 x .06:H T
25 WHL:COMPL:13x4 SNOW HO G:GRAY
25A RIM ASM 6X3.25 W/V CC?
25B TIRE:SNWHG:13.0 x 4.0 x 6.0
25C VALVE - TUBELESS AIR
26 SPCR:1.25 OD x.75 ID x 3.00 L G
26A SPCR:1.25 OD x.75 ID x 2.0 L G
27 SHAFT-WHEEL AXLE .75 X 22 \"SNWT
28 HEX SCREW
29 BRG:BALL:17x40x12:6203:DS
30 BRG:HEX FLANGE x.75 ID
31 CBL:CLU:X 44.75 AUGER
32 CABLE-DRIVE
33 SPCR:.508 ID x.750 OD x.68
34 cable idler wheel
35 BRACKET-GUIDE-AUGER:LH
36 FRAME
37 BRKT:GDE:AUGER CBL FRNT SUPT
38 FRAME COVER MTD RED
39 BRACKET
40 HHCS:3/8-24:1.25:GR8:SPEC
41 SCR:HHCS:1/4-20:1.00:GR5:S PEC
42 SCR:TTSEMS:3/8-16:1.000:HX LWSH
43 HHCS:5/16-24:.875:GR8:LOCK
44 NUT:FLGLK:1/4-20:GRF:NYLO N
45 BELT PLAST COVER
46 SPRING, GOVERNOR
47 WASH:FLAT:.406x1.250x.157:H D
48 WASH:FLAT:.34 x 1.50 x .150:H T
49 BRG:BALL:.787IDx1.85ODx.55 1
50 SHOULDER SPACER:.315DLX 1
51 PULLEY, ADAPTER
52 FLANGE SPACER
53 SPCR:.875 ID x 1.185 OD
54 BELT:.500 x 35.06 LG
55 V-BELT
56 PUL:AUGR:8.1 x.5 BELT
57 PUL:HALF:4L-V x 2.600 OD
58 PULLEY HALF
59 WASHER-BEARING
60 PLATE, FRICTION
61 PLATE, FRICTION
62 SCR:AB:1/4-14:.625:HXINDWS H
65 DISC ASSY-FRICTION
66 ENGINE
