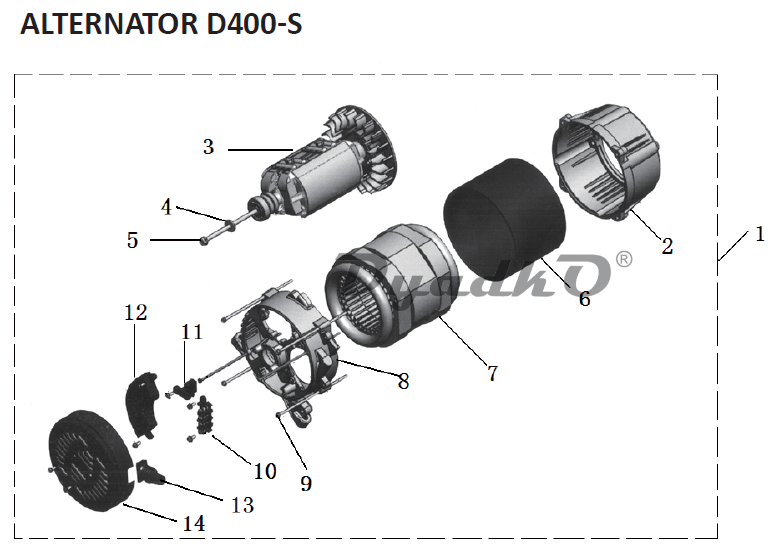

Схема (деталировка) генераторы дизельные HYUNDAI DHY 6000, DHY 6000LE, DHY 6000LE-3, DHY 6000SE, DHY 6000SE-3, DHY 8000, DHY 8000LE, DHY 8000LE-3, DHY 8000SE, DHY 8000SE-3 (DG7500LE-3) ALTERNATOR D400. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	5KVA Alternator ASSY(LE) (single phase)
1-1	6KVA Alternator ASSY(LE) (single phase)
1-2	5KVA Alternator ASSY(LE-3) (3 phase)
1-3	6KVA Alternator ASSY(LE-3) (3 phase)
1-4	5KVA Alternator ASSY(SE) (single phase)
1-5	6KVA Alternator ASSY(SE) (single phase)
1-6	5KVA Alternator ASSY(SE-3) (3 phase)
1-7	6KVA Alternator ASSY(SE-3) (3 phase)
2	Front round cover(LE/LE-3) (open type)
2-1	Front round cover(SE/SE-3) (soundproof type)
3	5KVA Rotor(LE/SE) (single phase)
3-1	6KVA Rotor(LE/SE) (single phase)
3-2	5KVA Rotor(LE-3/SE-3) (3 phase)
3-3	6KVA Rotor(LE-3/SE-3) (3 phase)
4	Flat washer OlO
5	5KVA Axis bolt
5-1	6KVA Axis bolt
6	5KVA Stator cover
6-1	6KVA Stator cover
7	5KVA Stator(LE/SE) (single phase)
7-1	6KVA Stator(LE/SE) (single phase)
7-2	5KVA Stator(LE-3/SE-3) (3 phase)
7-3	6KVA Stator(LE-3/SE-3) (3 phase)
8	Real round cover
9	5KVA Frange bolt M6xl70
9-1	6KVA Frange bolt M6xl85
10	Terminal plate(LE/SE) (single phase)
10-1	Terminal plate(LE-3/SE-3) (3 phase)
11	Brush kit
12	AVR(LE/SE) (single phase)
12-1	AVR(LE-3/SE-3) (3 phase)
13	Rubber cable cover
14	Real end cover
