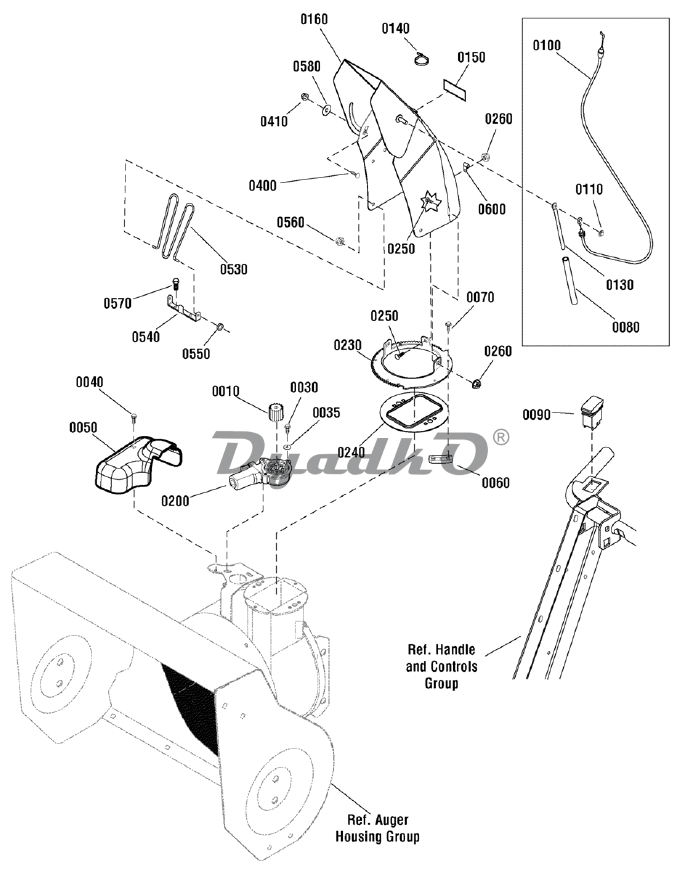

Схема (деталировка) снегоуборщики бензиновые CANADIANA CL 841650 S (1696056) Рукав . Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

10	PINION
30	SCREW, Button Head, Torx, M5 x .8 x 14
35	WASHER, Flat, 1/4
40	SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
50	COVER, Electric Chute Rotation
60	RETAINER, Spout
70	SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
80	SPRING, Compression, 6\"
90	SWITCH, Chute Rotation
100	CABLE ASSEMBLY, Chute Deflector
110	NUT, Push, 5/16
130	ROD, Spring Guide
140	CABLE TIE
150	DECAL, Hinge
160	CHUTE
200	MOTOR, Chute Rotation
230	GEAR, Chute
240	ADAPTER, Chute Ring
250	BOLT, Carriage, 1/4-20 x 3/4
260	NUT, Hex KEPS, 1/4-20
400	BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
410	NUT, Hex Flange, ESN A, 5/16-18
530	GUARD, Chute
540	BRACKET, Chute Guard
550	GROMMET
560	NUT, Push, 3/16
570	SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
580	WASHER, Nylon
600	CLIP, Cable
