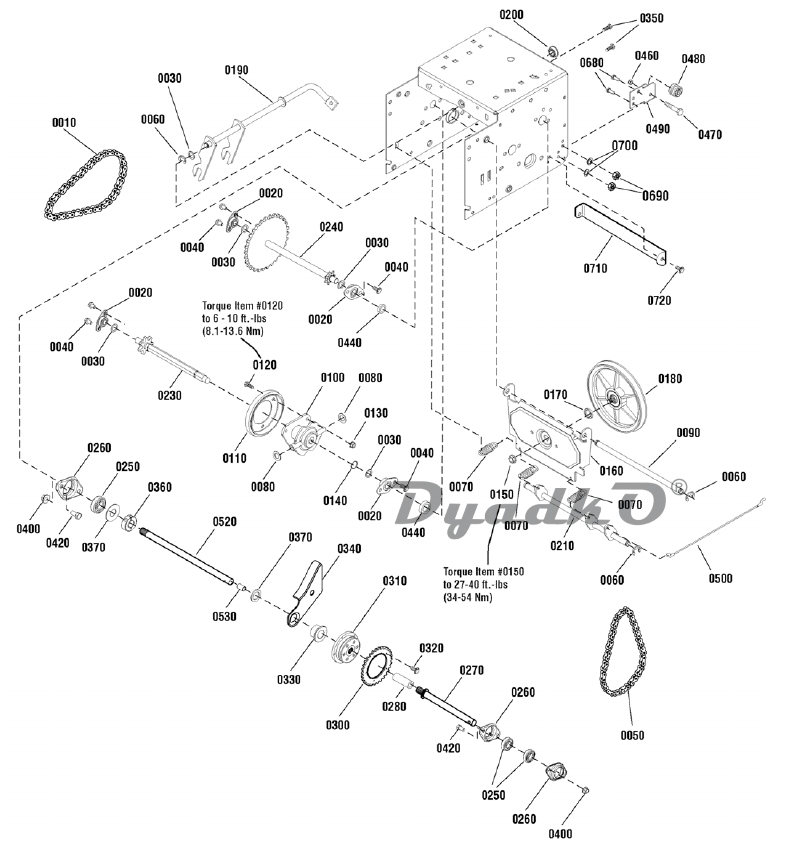

Схема (деталировка) снегоуборщики бензиновые CANADIANA CL 841650 S (1696056) Система привода. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

10	CHAIN, Roller, 19\"
20	RETAINER & BUSHING ASSEMBLY
30	WASHER, Flat, 1/2
40	CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
50	CHAIN, Roller, 18\"
60	RETAINER, Ring, 7/16
70	SPRING, Extension
80	WASHER, 1/2
90	AXLE, 7/16 Dia. Swing Plate, 10-1/2
100	BEARING TRUNNION ASSEMBLY
110	WHEEL, Friction, 4.3, Rubber
120	CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
130	NUT, Hex, 1/4-20
140	RING, Retaining, External, # 63
150	NUT, Flange Locking, 3/8-24
160	PLATE, Swinging
170	SPACER, Friction Pulley
180	FRICTION PULLEY ASSEMBLY
190	SPEED SELECTOR ASSEMBLY
200	BEARING, Flange,1/2 ID x 7/8 OD
210	SPRING LINK ASSEMBLY, Steerable
230	SHAFT & SPROCKET ASSEMBLY
240	SPROCKET, Set
250	Bearing, BALL, 3/4 ID x 1-5/8 OD
260	RETAINER, Bearing, Flanged
270	AXLE WASHER ASSEMBLY, LH
280	PIN, Axle
300	SPROCKET, Steer
310	CLUTCH, Auto Lock, Steer
320	CAPSCREW, Socket Head, #10-24 x 1/2
330	BEARING, Axle, D-Hole
340	BRACKET, Axle Support
350	CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
360	COLLAR, Locking
370	WASHER, 3/4
400	NUT, Hex Flange Whiz Lock, 3/8-16
420	CAPSCREW, Hex Head, 3/8-16 x 3/4, G5
440	BEARING, Ball
460	NUT, Hex Lock, 1/4-20
470	CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
480	SPOOL CABLE, Auger Control
490	BRACKET, Cable Spool
500	CABLE, Front Drive, Lower
520	SHAFT, Axle, 3/4 Dia. 15-1/8, R.H.
530	BUSHING
680	BOLT, Hex, 1/4-20 x 5/8
690	NUT, Hex, 1/4-20, GR5
700	LOCKWASHER, Spring, 1/4
710	BRACKET, Support
720	SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
