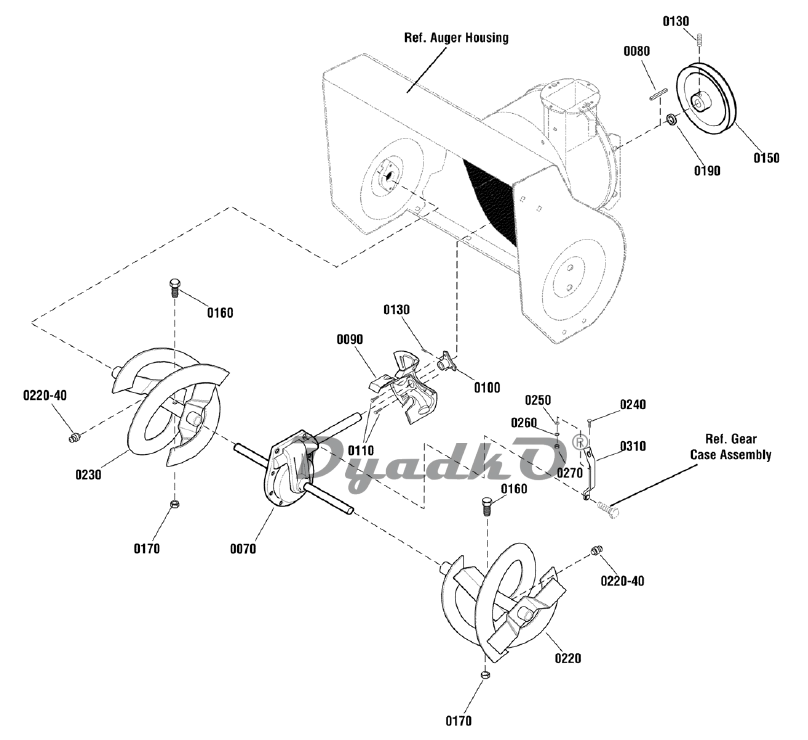

Схема (деталировка) снегоуборщики бензиновые CANADIANA CL 841650 S (1696056) Шнек. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

70	GEAR CASE ASSEMBLY
80	KEY, Square, 3/16 x 3/4
90	IMPELLER
100	HUB, Impeller
110	SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
130	SET SCREW, Square Head, 5/16-18 x 5/8, G8
150	PULLEY
160	BOLT, Shoulder, 5/16-18 x 1-3/4
170	NUT, Hex Centerlock, 5/16-18
190	SPACER, Friction Pulley
220	AUGER, LH, 33 (Includes Ref. No. 0220-40)
0220-40	FITTING, Grease
230	AUGER, RH, 33 (Includes Ref. No. 0220-40)
240	CAPSCREW, Hex Head, 5/16-18 x 1-1/4
250	WASHER, Flat
260	WASHER, Split Lock, 5/16
270	NUT, Hex, 5/16-18
310	BRACE, Gear Box
___	KIT, Shear Bolt (Includes Ref. Nos. 0160 & 0170)
