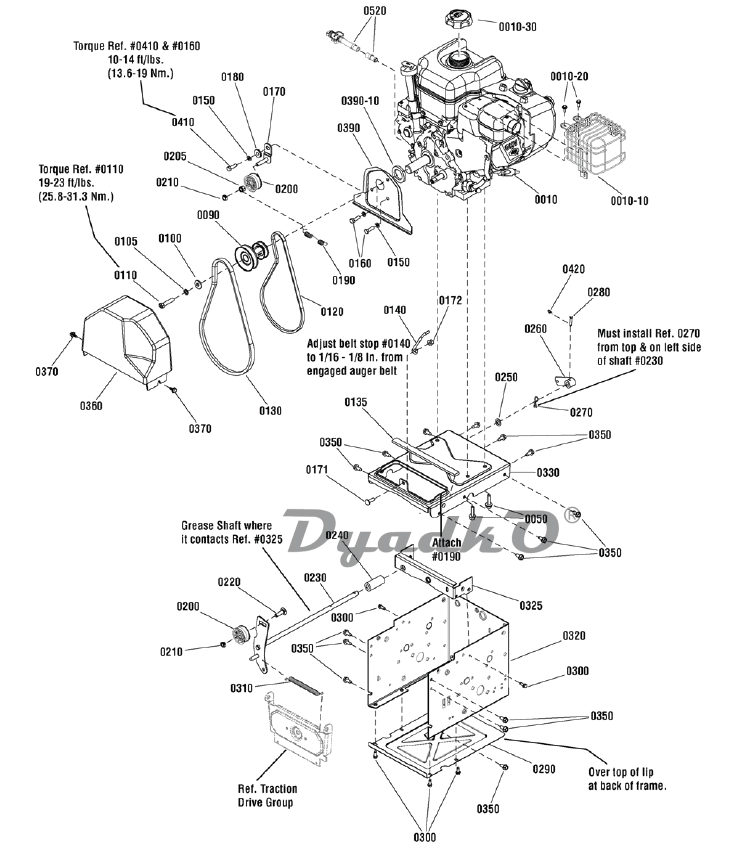

Схема (деталировка) снегоуборщики бензиновые CANADIANA CL 841650 S (1696056) Место крепления двигателя. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

10	* ENGINE, 16.5TP Briggs & Stratton
0010-10	GUARD, Muffler
0010-20	SCREW, Muffler Guard
0010-30	CAP, Fuel
50	BOLT, Carriage, 5/16-18 x 1-1/2
90	PULLEY ASSEMBLY
100	WASHER, 3/8
105	LOCKWASHER, Spring, 3/8
110	CAPSCREW, Hex Head, 3/8-24 x 1-3/4
120	V-BELT, Traction Drive, 3L 33.13
130	BELT, Auger, V4L 38.10 MF 05-10
135	SEAL, Strip
140	STOP, Belt
150	LOCKWASHER, Spring, 5/16
160	CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
170	BRACKET, Idler
171	BOLT, Carriage, Short Neck, 5/16-18 x 1, G5
172	NUT, Hex KEPS, 5/16-18
180	BUSHING, Idler Bracket
190	SPRING, Extension, Idler
200	IDLER
205	NUT, Hex Nylock, 3/8-16
210	NUT, Hex Centerlock, Jam, 3/8-16
220	BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
230	IDLER, Auger
240	SPACER, Auger Bracket
250	WASHER, 1/2
260	ARM, Control
270	PIN, Hair
280	PIN, Clevis
290	PANEL, Bottom
300	SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
310	SPRING, Extension, Auger, 5\"
320	FRAME
325	ANGLE, Auger & Traction Rod Mounting
330	PLATE, Engine
350	SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
360	COVER, Belt
370	SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
390	PLATE, Seal
0390-10	SEAL, Foam
410	BOLT, Hex, 5/16-24 x 1
420	PIN, Cotter, Self Locking, 1/4
520	OIL DRAIN ASSEMBLY
