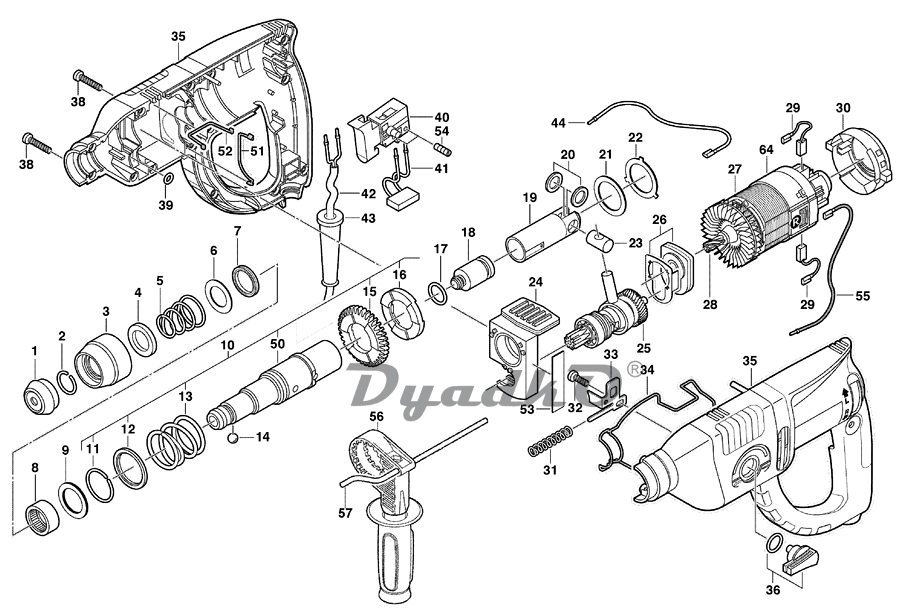

| 1 | PROTECTIVE CAP |
| 2 | RETAINING RING |
| 3 | ROTATING SLEEVE |
| 4 | WASHER |
| 5 | CONICAL SPRING |
| 6 | WASHER 20X32X0,8 |
| 7 | RADIAL SHAFT SEALING |
| 8 | NEEDLE BUSH |
| 9 | WASHER 24 MM |
| 10 | DRILL SPINDLE CPL.PREASSEMBLED |
| 11 | RETAINING RING |
| 12 | WASHER 30 MM |
| 13 | PRESSURE SPRING |
| 14 | STEEL BALL 7 MM |
| 15 | GEAR WHEEL |
| 16 | CLUTCH DISK |
| 17 | O-RING |
| 18 | FREE PISTON |
| 19 | PISTON 27588 |
| 20 | WASHER |
| 21 | AXIAL DISK |
| 22 | DISK |
| 23 | BEARING BOLT |
| 24 | BEARING PART |
| 25 | BACK GEAR SHAFT |
| 26 | BEARING PLATE |
| 27 | STATOR 29065/29585/31061 |
| 28 | ARMATURE WITH BEARING B |
| 29 | CARBON BRUSH |
| 30 | SWITCHING RING |
| 31 | PRESSURE SPRING |
| 32 | SCREW KT 4X9,5 |
| 33 | SWITCHING PLATE |
| 34 | FORM SEALING |
| 35 | CASING 30803 |
| 36 | SWITCHING LEVER 26972 |
| 38 | SCREW KT 4,0 x 19 |
| 39 | O-RING |
| 40 | SWITCH |
| 41 | CAPACITOR |
| 42 | POWER SUPPLY 19638/30796 |
| 43 | RUBBER BUSHING |
| 44 | CORD YELLOW |
| 50 | SPINDLE PREASSEMBLED |
| 51 | FORM SEALING |
| 52 | FORM SEALING |
| 53 | SHEET METAL PLATE |
| 54 | GRUB SCREW |
| 55 | STRANDED WIRE,BLACK |
| 56 | HANDLE |
| 57 | DEPT STOP |
| 64 | ENDSHIELD MAXX +C.BRUSH RING |
