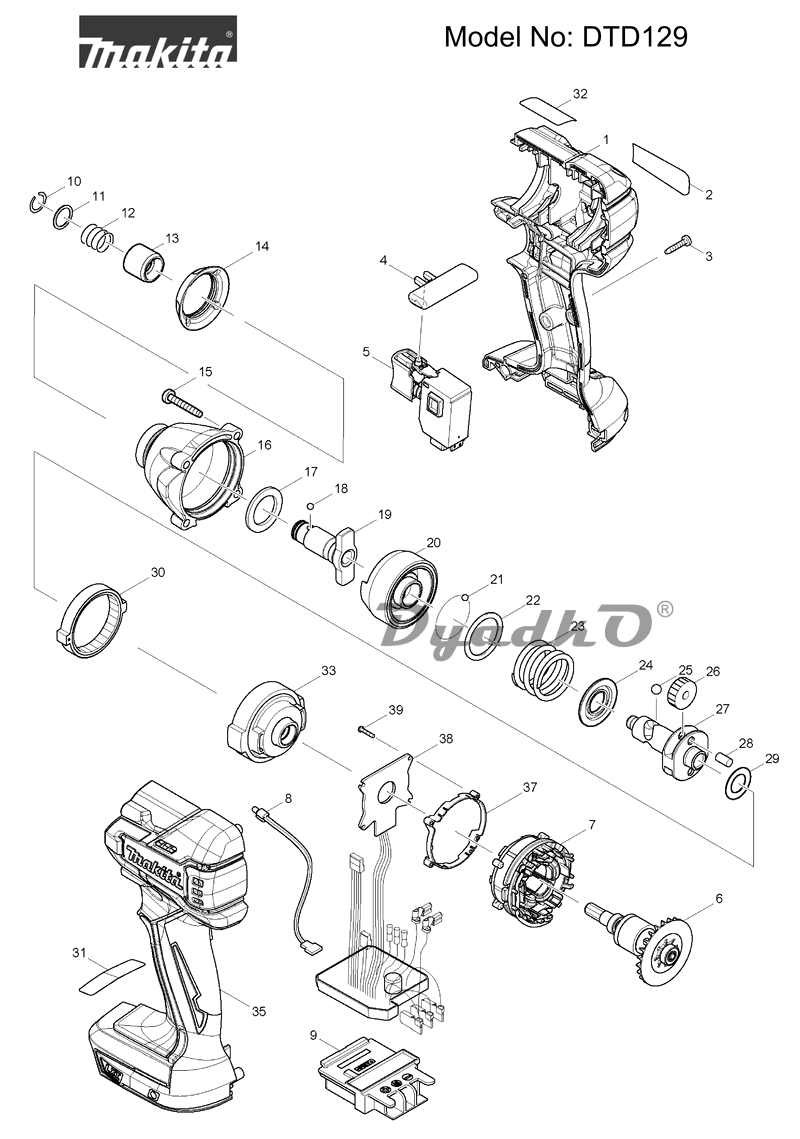

Схема MAKITA DTD 129 DTD129

1A1 HOUSING SET INC. 35
1A1 RUBBER PIN 6
1-1 HOUSING SET INC. 35
1-1 RUBBER PIN 6
1 RUBBER PIN 6
1 HOUSING SET INC. 35
1A RUBBER PIN 6
1A HOUSING SET INC. 35
2 DTD129 NAME PLATE
2A DTD129 NAME PLATE
2B DTD129 NAME PLATE
3 TAPPING SCREW 3X16
3A TAPPING SCREW 3X16
3B TAPPING SCREW 3X16
4 F/R CHANGE LEVER
4A F/R CHANGE LEVER
4B F/R CHANGE LEVER
5 SWITCH C3JW-2B
5A SWITCH C3JW-2B
5B SWITCH C3JW-2B
6 ROTOR
6A ROTOR
6B ROTOR
7 STATOR
7A STATOR
7B STATOR
8 LED CIRCUIT
8A LED CIRCUIT
8B LED CIRCUIT
9 TERMINAL
9A TERMINAL
9B TERMINAL
10 RING SPRING 11
10A RING SPRING 11
10B RING SPRING 11
11 FLAT WASHER 12
11A FLAT WASHER 12
11B FLAT WASHER 12
12 COMPRESSION SPRING 13
12A COMPRESSION SPRING 13
12B COMPRESSION SPRING 13
13 SLEEVE
13A SLEEVE
13B SLEEVE
14 BUMPER
14A BUMPER
14B BUMPER
15 TAPPING SCREW 4X25
15A TAPPING SCREW 4X25
15B TAPPING SCREW 4X25
16 HAMMER CASE COMPLETE
16A HAMMER CASE COMPLETE
16B HAMMER CASE COMPLETE
17 NYLON WASHER 19
17A NYLON WASHER 19
17B NYLON WASHER 19
18B1 STEEL BALL 3.5
18 STEEL BALL 3.5
18-1 STEEL BALL 3.5
18A1 STEEL BALL 3.5
18A STEEL BALL 3.5
18B STEEL BALL 3.5
19 ANVIL M
19A ANVIL M
19B ANVIL M
20 HAMMER
20A HAMMER
20B HAMMER
21A1 STEEL BALL 3.5
21 STEEL BALL 3.5
21-1 STEEL BALL 3.5
21B1 STEEL BALL 3.5
21A STEEL BALL 3.5
21B STEEL BALL 3.5
22 FLAT WASHER 24
22A FLAT WASHER 24
22B FLAT WASHER 24
23 COMPRESSION SPRING 24
23A COMPRESSION SPRING 24
23B COMPRESSION SPRING 24
24 CUP WASHER 14
24A CUP WASHER 14
24B CUP WASHER 14
25B1 STEEL BALL 5.6
25 STEEL BALL 5.6
25-1 STEEL BALL 5.6
25A1 STEEL BALL 5.6
25A STEEL BALL 5.6
25B STEEL BALL 5.6
26 SPUR GEAR 22
26A SPUR GEAR 22
26B SPUR GEAR 22
27 SPINDLE
27A SPINDLE
27B SPINDLE
28 PIN 5
28A PIN 5
28B PIN 5
29 FLAT WASHER 12
29A FLAT WASHER 12
29B FLAT WASHER 12
30 INTERNAL GEAR 51
30A INTERNAL GEAR 51
30B INTERNAL GEAR 51
33 INTERNAL GEAR CASE COMPLETE
33A INTERNAL GEAR CASE COMPLETE
33B INTERNAL GEAR CASE COMPLETE
35-1 HOUSING SET INC. 1
35-1 RUBBER PIN 6
35A1 HOUSING SET INC. 1
35B1 HOUSING SET INC. 1
35A1 RUBBER PIN 6
35B1 RUBBER PIN 6
35 HOUSING SET INC. 1
35 RUBBER PIN 6
35A RUBBER PIN 6
35A HOUSING SET INC. 1
37 SUPPORT
37A SUPPORT
37B SUPPORT
38 CONTROLLER
38A CONTROLLER
38B CONTROLLER
39 + PAN HEAD TAPPING SCREW 2X10
39A + PAN HEAD TAPPING SCREW 2X10
39B + PAN HEAD TAPPING SCREW 2X10
A06 HANDLE
A06 PLASTIC CASE COMPLETE
A06 SHAFT
A06 LATCH
A02 HOOK
A01 + SCREW M4X12
A03 DC18RC FAST CHARGER
A03-1 DC18RC FAST CHARGER
A03A1 DC18SD BATTERY CHARGER
A07 DTD129SYE PLASTIC CASE LABEL
A03B1 DC18SD BATTERY CHARGER
A04 BATTERY BL1830 SET
A04-1 BATTERY BL1830 SET
A04B1 BATTERY BL1815N SET
A07 DTD129RFE PLASTIC CASE LABEL
A05 BATTERY COVER
A02 HOOK
A07A DTD129SHE PLASTIC CASE LABEL
A01A + SCREW M4X12
A02A HOOK
A02A HOOK
A03A DC18SD BATTERY CHARGER
A04A BATTERY BL1815 SET
A05A BATTERY COVER
A06A PLASTIC CASE COMPLETE
A06A SHAFT
A06A LATCH
A06A HANDLE
A01B + SCREW M4X12
A06B PLASTIC CASE COMPLETE
A06B SHAFT
A06B LATCH
A05B BATTERY COVER
A06B HANDLE
A04B BATTERY BL1815N SET
A03B DC18SD BATTERY CHARGER
