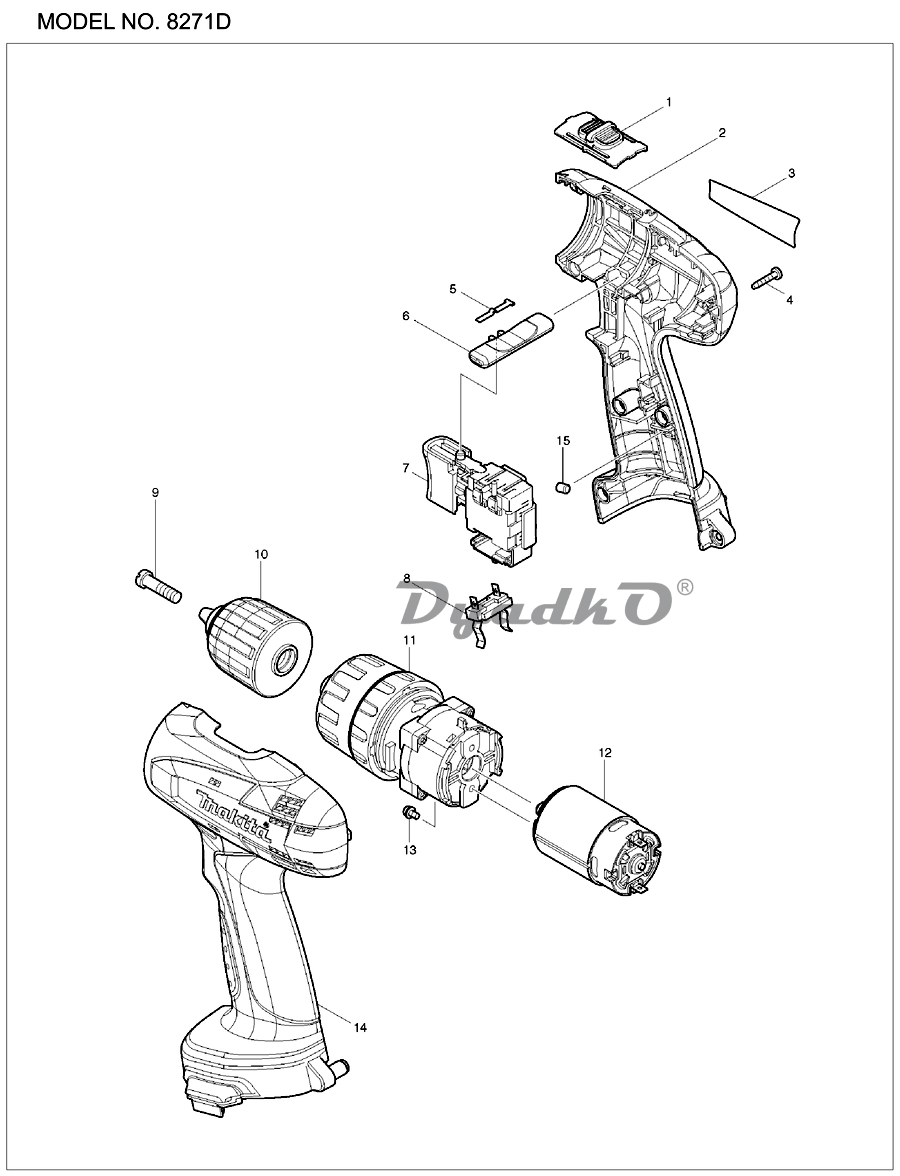

Схема MAKITA 8271 D 8271D
1
SPEED CHANGE LEVER ASS\'Y
2
HOUSING SET INC. 14 (new)
2
HOUSING SET INC. 14 (old)
3
8271D NAME PLATE
4
TAPPING SCREW BIND PT 3X16
5
LEAF SPRING
6
F/R CHANGE LEVER
7
SWITCH TG563FSB-2 (new)
7
SWITCH TG563FSB-2 (old)
8
BATTERY HOLDER
9
- FLAT HEAD SCREW M6X22
10
KEYLESS DRILL CHUCK 10
11
GEAR ASS\'Y
12
DC MOTOR
13
PAN HEAD SCREW M3X6
14
HOUSING SET INC. 2 (new)
14
HOUSING SET INC. 2 (old)
15
RUBBER PIN 4
A01
+- BIT 2-65
A02
BATTERY COVER
A03
DC1414 BATTERY CHARGER
A04
BATTERY 1222 SET
A04
BATTERY PA12 SET
A05
PLASTIC CARRYING CASE
E02
LINE FILTER
E03
LINE FILTER
