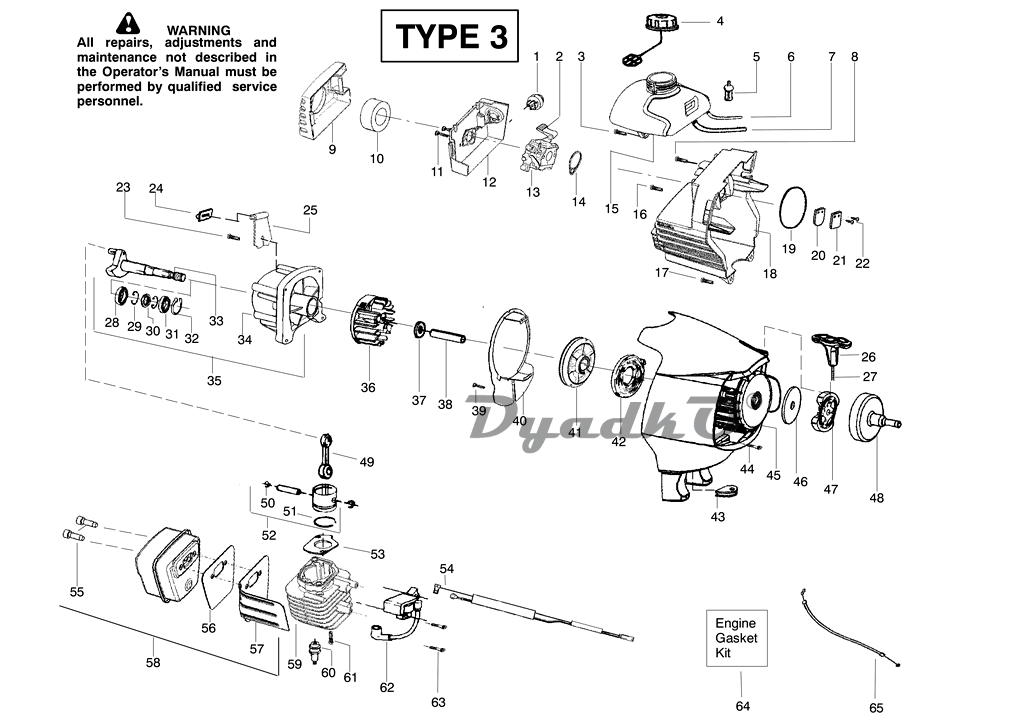

Схема (деталировка) триммеры бензиновые PARTNER T330, T330 Pro+ (952715483, 952715702)(2011-09) 06 Двигатель (TYPE 3). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Bulb--Purge
2	Kit--Choke Lever
3	Screw--tank
4	Cap--Fuel w/ret.
5	Assy--Fuel pickup
6	Kit--Fuel/Carb. line
7	Kit--Fuel/Purge line
8	Screw
9	Cover--Air box
10	Filter--Air
11	Screw--Carb.
12	Box--Air
13	Kit--Carb assy. (C1U--W32)(Note: Repair kits are not available for this carburetor)
14	Seal--Carb.(kit)
15	Assy--Fuel Tank
16	Screw--Crankcase
17	Screw--Shroud
18	Assy--Rear Shroud
19	O--ring--Shroud (kit)
20	Valve--Reed
21	Stop--Reed
22	Screw--Reed stop
23	Screw--Retainer
24	Isolator--Tank
25	Ret.--Tank
26	Handle--Starter
27	Kit--Rope
28	Bearing--Inner
29	Retainer
30	Seal
31	Bearing--Outer
32	Ret.--Crankshaft
33	Assy--Crankshaft
34	Assy--Crankcase ( Incl. 28,29,30,31)
35	Assy--C’case/C’shaft ( Incl. 32,33,34)
36	Assy--Flywheel
37	Washer
38	Spacer
39	Screw--Baffle
40	Plate--Baffle
41	Kit--Pulley
42	Spring--Starter
43	Grommet
44	Screw--F/hsg.
45	Assy--Fan Housing
46	Washer--Clutch
47	Assy--Clutch
48	Assy--Drum/Adapter
49	Assy--Conn. Rod
50	Ret.--Piston pin
51	Ring--Piston
52	Kit--Piston (Incl. 50,51)
53	Gasket--Cylinder(kit)
54	Assy--Leadwire
55	Bolt--Muffler 1/4”--20
56	Gasket--Muffler (kit)
57	Shield
58	Kit--Muffler (Incl. 55,56,57)
59	Cylinder
60	Plug--Spark(RCJ--6Y)
61	Bolt--Cyl. 1/4”--20
62	Module--Ignition
63	Screw--Module
64	Kit--Gasket/Seal ( Incl. 14,19, 53,56)
65	Assy--Throttle cable
