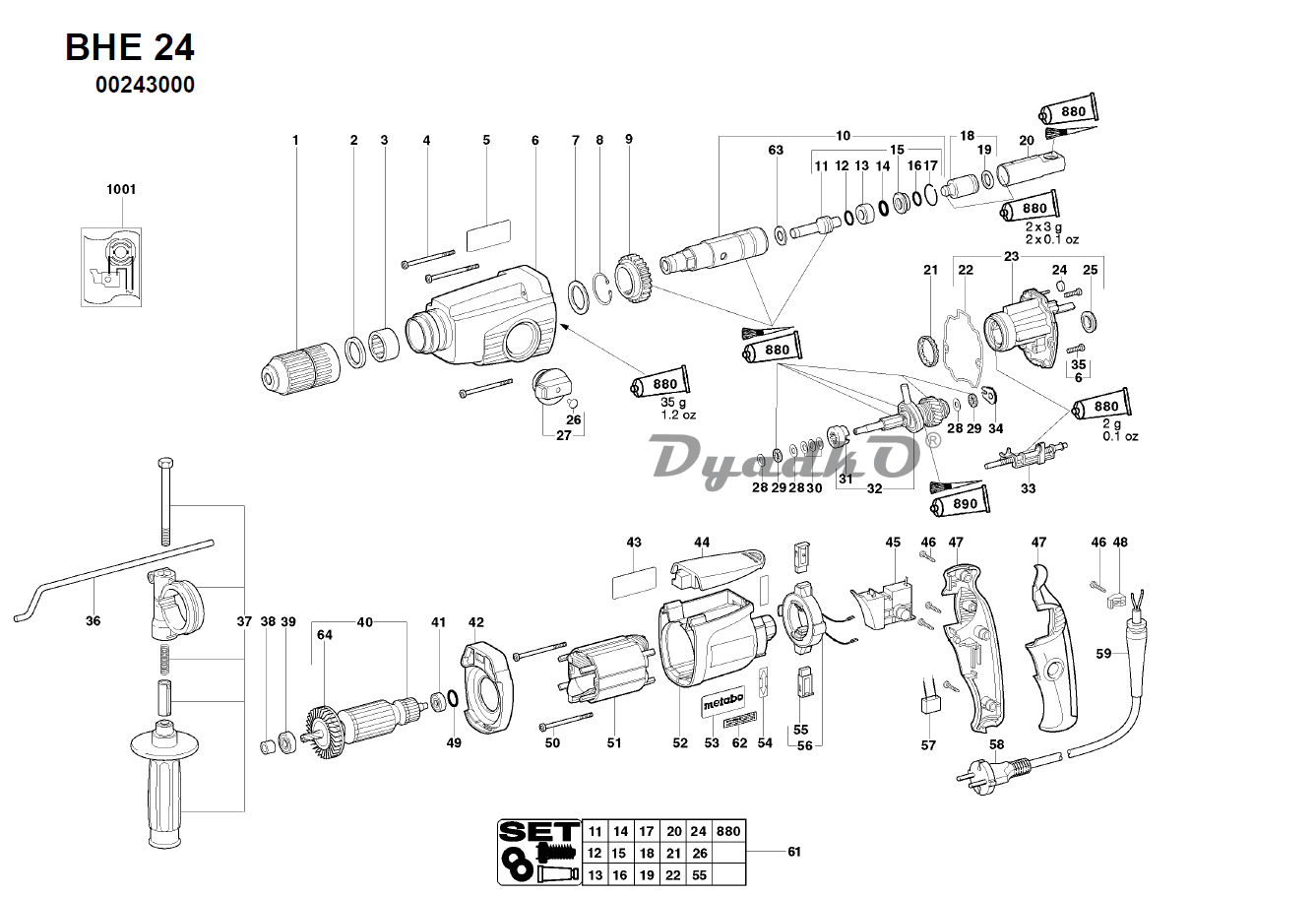

Схема (деталировка) перфораторы METABO BHE 24 (00243000). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Adaptor SDS -PLUS
2	Shaft sealing ring
3	Needle sleeve
4	Self-tap. fill. h. screw
5	Indication label
6	Gear housing cpI.
7	Supporting disc
8	Circlip
9	Sliding sleeve
10	Drill driving sleeve cpI.
11	Intermediate striker cpI.
12	O-ring
13	Supporting ring
14	O-ring
15	Catching sleeve cpI.
16	O-ring
17	Circlip
18	Striker cpI.
19	Sealing ring
20	Exciter sleeve
21	Ball holder
22	Seal
23	Gear flange cpI.
24	Felt seal
25	Rubber buffer
26	Seal
27	Control knob cpI.
28	Washer
29	Axial needle bearing
30	Cup spring
31	Coupling sleeve
32	Intermediate gear cpI.
33	Switch element cpl.w.o. rot. Stop
34	Butting sheet
35	Fill, head screw(DIN 7985)
36	Depth stop
37	Support handle compl.
38	Sealing ring
39	Ball bearing, 8x22x7
40	Armature cpl.230V
41	Ballbearing, 6X 19X 6
42	Intermediate flange
43	Rating plate
44	Cover w.o. electronic
45	Electronic switch w/o wheel
46	Self-tap. fill. h. screw
47	Drill Handle w/overmold green
48	Cable clip
49	O-ring
50	Self-tap. fill. h. screw
51	Field coil 230V
52	Motor housing
53	M-Label,08 52x22
54	Indication label
55	Brush set 230V/120V
56	Brush holder module
57	Interference suppr. cond.
58	Cable with plug
59	Cable sleeve
61	Maintenance kit
62	Part not needed
63	Ring
64	Fan w. prot. Grid
880	Grease FG 126
890	Grease SF 011 50Gr 1,8oz
1001	Diagram
