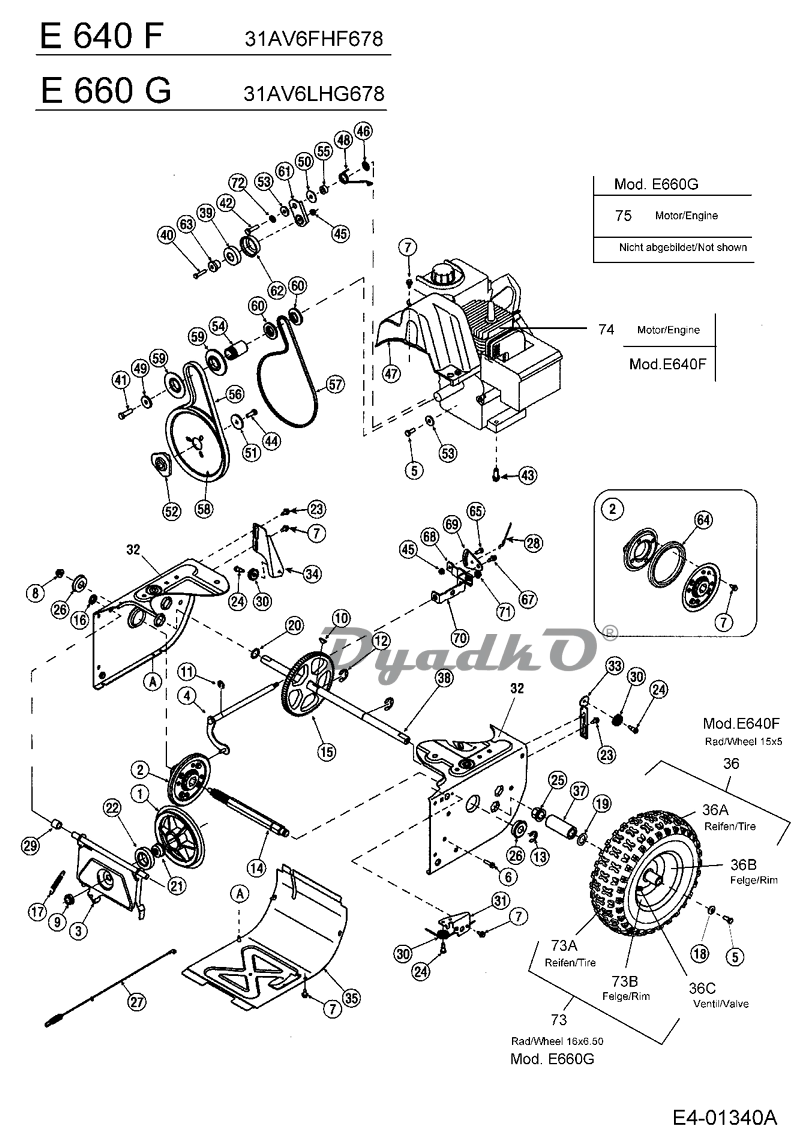

Схема MTD E 660 G (31AV6LHG678) (2006) 03 Drive system, Milling drive, Wheels

1 DISC-ASSY FRICTION
2 WHL ASM:FRCTN WHEEL
3 BRKT ASM: SUPT:FRCTN WHL BLACK
4 SHIFT ASSY, ROD
5 SCREW HHCS:5/16-24:.750GR5LOCK
6 SCREW:TT:1/4-20:1.000:HXINDWSH
7 SCR:AB:1/4-14:.625:HXINDWSH
8 NUT:FLGLK:3/8-16:GRF:NYLON
9 NUT:JAMLK:5/8-18:GR5:NYLON
10 KEY-HI-PRO:3/16 x 3/4 DIA
11 E-RING:.500 DIA SHAFT
12 RING:RET:TYPE-E .875 DIA
13 RING:E-TYPE:.750
14 AXLE
15 GEAR:80 TOOTH
16 NUT:SPD:.500
17 SPR:EXTN:.380 OD x 2.500 LG
18 WASH:BLVL:.340 x .872 x .060
19 WASH:FLAT:.793 x 1.24 x .06:HT
20 WASH:FLAT:.75 x 1.00 x .06
21 PIN FRICTION DISK
22 BALL BEARING
23 SCR:SHLDR:.368x.113:TT:1/4-20
23 SCR:SHLDR:.368x.113:TT:1/4-20
24 HEX SCREW
25 BRG:HEX FLANGE x.75 ID
26 BRG:BALL:17x40x12:6203:DS
27 CBL:CLU:DR:WHL:44.955 LG
28 CABLE: SELECTOR: SPEED
29 SPCR:.508 ID x.750 OD x.68
30 cable idler wheel
31 BRKT:GDE:AUGER CBL FRNT SUPT
32 FRAME:600:WHEEL DR MTD RED
33 BRACKET:GUIDE CABLE BLACK
34 BRACKET:CLUTCH POWDER BLACK
35 COVER:FRAME 500 S/T BL
36 WHEEL COMPL, 15x5 SNOW HOG
36B1 RIM YM YELLOW
36A TIRE:SNWHG:15.0 x 5.0 x 6.0
36B RIM ONLY
36C VALVE - TUBELESS AIR
37 SPCR:1.25 OD x.75 ID x 3.00 LG
38 AXLE:.75 x 22.000 LG
39 BRG:BALL:.787IDx1.85ODx.551
40 HHCS:1/4-20:1.25:GR5:SPEC
41 HHCS:3/8-24:1.25:GR8:SPEC
42 HHCS:5/16-24:1.25:GR5:STD
43 SCR:TTSEMS:3/8-16:1.000:HXLWSH
44 HHCS:5/16-24:.875:GR8:LOCK
45 NUT:FLGLK:1/4-20:GRF:NYLON
46 NUT:PUSH-ON:.25 DIA
47 COVER:BELT
48 TORSION SPRING
49 WASH:FLAT:.406x1.250x.157:HD
50 WASH-FLAT:.330 x 1.25 x.06:HD
51 WASH:FLAT:.34 x 1.50 x .150:HT
52 PULLEY, ADAPTER
53 Washer
54 SPCR:.875 ID x 1.185 OD
55 SPACER: .340 X .750 X .360LG
56 BELT:.500 x 35.06 LG
57 BELT:V
58 PUL:AUGR:8.1 x.5 BELT
59 PUL:HALF:4L-V x 2.600 OD
60 PULLEY HALF:1/4-V X 1.5 OD
61 BRACKET:IDLER DR
62 SLEEVE:BEARING IDLER
63 SPCR:SHLDR:.260 x .785 x .538
64 WHEEL:FRICTION:5.5 OD
65 HHCS:1/4-20:.620:GR5:STD
66 TORSION SPRING:.750 IDx .968LG
68 SPACER-PULLEY
69 BRKT:PIVOT SELECTOR SPEED
70 BRKT:SHIFT SELECT POWDER BLACK
71 FLANGED NUT 5/16-18:GRF:NYLON
72 WASHER:LOCK:5/16:SPLT:REG
73 WHL COMP 16X6.5 OYSTER-CARLI
73A TIRE:SNWHG:16.0 x 6.5 x 8.0
73B RIM ASM-8.0X5.38 w/VALVE
74 ENGINE TEC
75 ENGINE TEC
