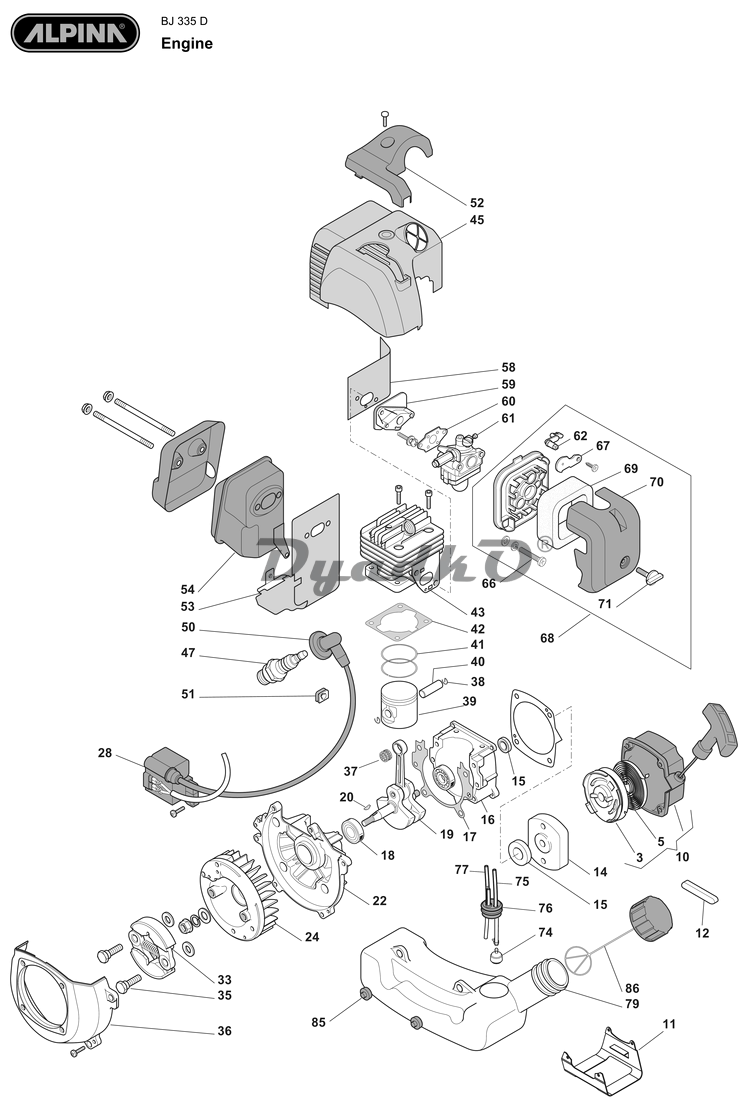

| 3 | Starter Pulley |
| 5 | Spring |
| 10 | Starter Ass.Y |
| 11 | Engine Support |
| 12 | Grommet |
| 14 | Starter Cup Ass.Y |
| 15 | Seal Ring |
| 16 | Crank Case |
| 17 | Gasket |
| 18 | Ball Bearing |
| 19 | Crankshaft |
| 20 | Key |
| 22 | Crank Case |
| 24 | Flywheel |
| 28 | Electronic Coil |
| 33 | Clutch Ass.Y |
| 35 | Screw |
| 36 | Transm.Support Case |
| 37 | Needle Bearing |
| 38 | Circlip |
| 39 | Piston |
| 40 | Piston Pin |
| 41 | Piston Ring |
| 42 | Cylinder Gasket |
| 43 | Cylinder |
| 45 | Cylinder Cover Yellow |
| 47 | Spark Plug |
| 50 | Spark Plug Cover |
| 51 | Grommet |
| 52 | Cover, Spark Plug |
| 53 | Gasket |
| 54 | Muffler |
| 58 | Intake Manif-Gasket |
| 59 | Intake Manifold |
| 60 | Intake-Carb Gasket |
| 61 | Carburettor |
| 62 | Choke Lever |
| 66 | Screw |
| 67 | Shutter |
| 68 | Air Filter |
| 69 | Air Filter |
| 70 | Air Cleaner Cover |
| 71 | Knob |
| 72 | Grommet |
| 74 | Intake Filter |
| 75 | Tube |
| 77 | Tube |
| 79 | Kit Fuel Tank |
| 85 | Grommet |
| 86 | Fuel Cap Assy |
