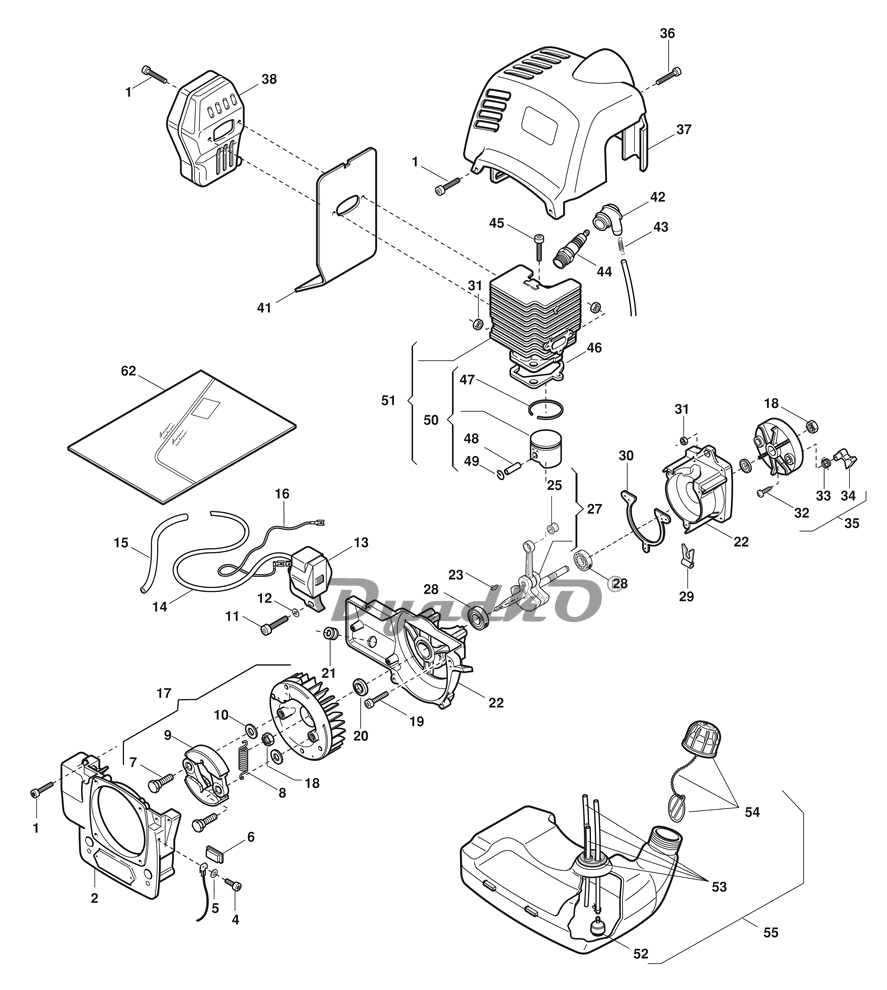

Схема ALPINA STAR 26 D (182621000) 2005 01 Двигатель - Глушитель, Картер, Коленчатый вал, Система зажигания, Сцепление, Топливный бак, Цилиндр-Поршень
| 1 | Screw |
| 2 | Transm. Support case |
| 4 | Screw |
| 5 | Washer |
| 6 | serb.Grommet |
| 7 | friz.Screw |
| 8 | Spring |
| 9 | Clutch unit |
| 10 | D6x14x1Washer |
| 11 | Screw |
| 12 | 4x10x0,5Washer |
| 13 | Electronic coil |
| 14 | Spark plug cable |
| 15 | Wire sheath |
| 16 | Ground terminal |
| 17 | Flywheel ass.y (incl.7,9,10) |
| 18 | Nut |
| 19 | Screw |
| 20 | Seal ring |
| 21 | Grommet |
| 22 | Cranckase ass.y |
| 23 | Flywheel key |
| 24 | Washer |
| 25 | Needle bearing |
| 26 | Washer |
| 27 | Cranckshaft (incl.25) |
| 28 | Ball bearing |
| 29 | massaThread guide |
| 30 | Gasket |
| 31 | Self-clocking nut |
| 32 | Screw |
| 33 | Spring |
| 34 | Starter hook |
| 35 | Starter cup ass.y (incl.32-36) |
| 36 | Screw |
| 37 | Cylinder cover ass.y yellow |
| 37 | Cylinder cover ass.y red |
| 38 | Muffler |
| 41 | Muffler gasket |
| 42 | Spark plug cover |
| 43 | Spark plug spring |
| 44 | Plug |
| 45 | Screw |
| 46 | Cilynder gasket |
| 47 | Piston ring x mod. Ø 35 |
| 48 | Piston pin Ø 35 |
| 49 | Circlip |
| 50 | Piston ass.y Ø35(incl.26,47-49) |
| 51 | Cylinder-piston ass.y Ø35 (incl.50) |
| 52 | Intake filter |
| 53 | Grommet ass.y |
| 54 | Fuel cap ass.y |
| 55 | Fuel tank ass.y (incl.52-54) |
| 62 | Gasket set (incl.30,41,46) |
